Camera module

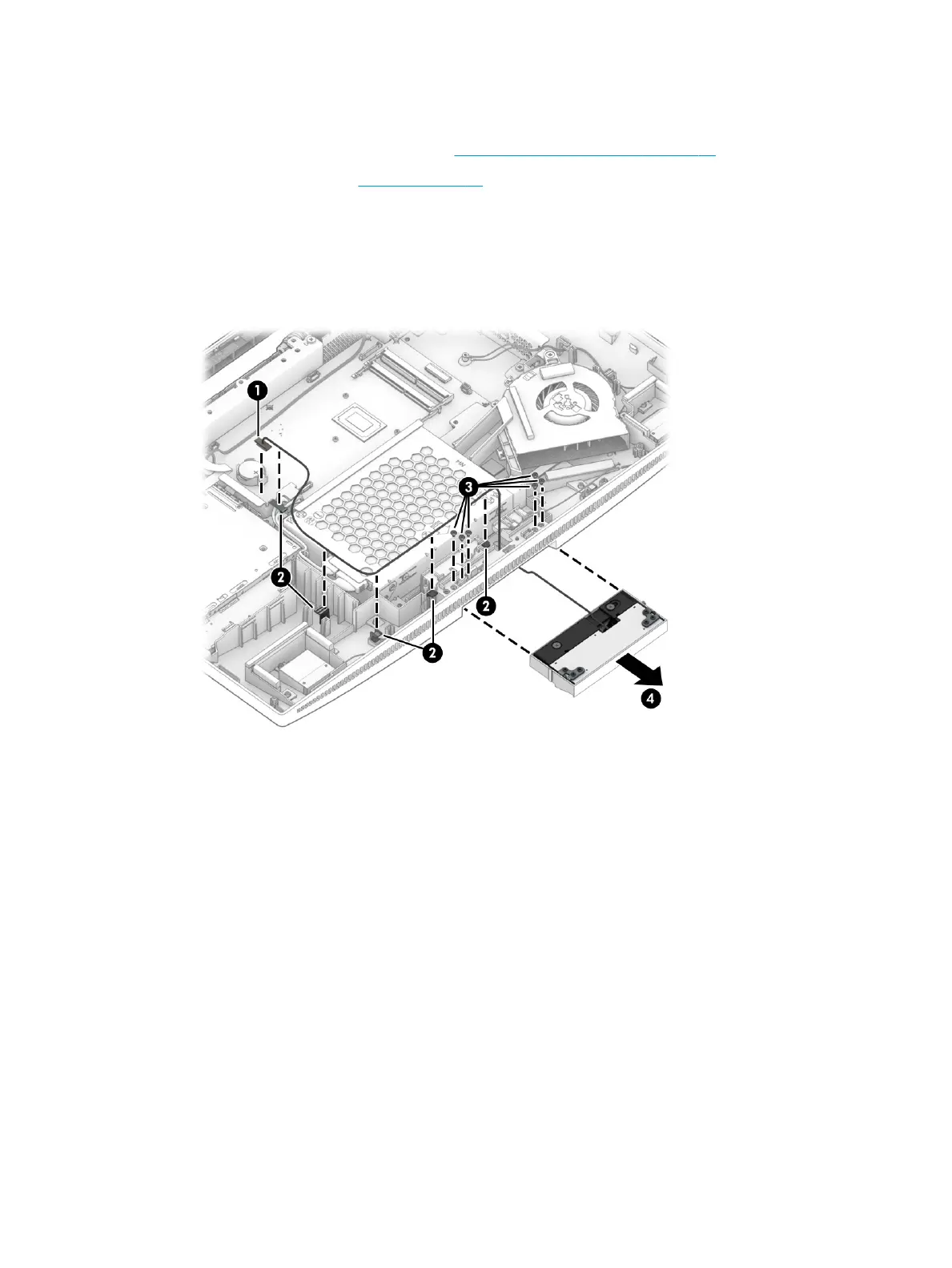

1. Prepare the computer for disassembly (Preparation for disassembly on page 16).
2. Remove the display (see Display on page 18).
3. Disconnect the camera cable from the system board (1).
4. Remove the cable from the clips along routing path around the hard drive cage (2).
5. Remove the six Phillips screws from the camera holder (3).
6. Pull the camera module and cable out of the top of the computer (4).
To install the camera module, reverse the removal procedures.
