Hard drive
1. Prepare the computer for disassembly (see Preparation for disassembly on page 16).
2. Remove the display (see Display on page 18).

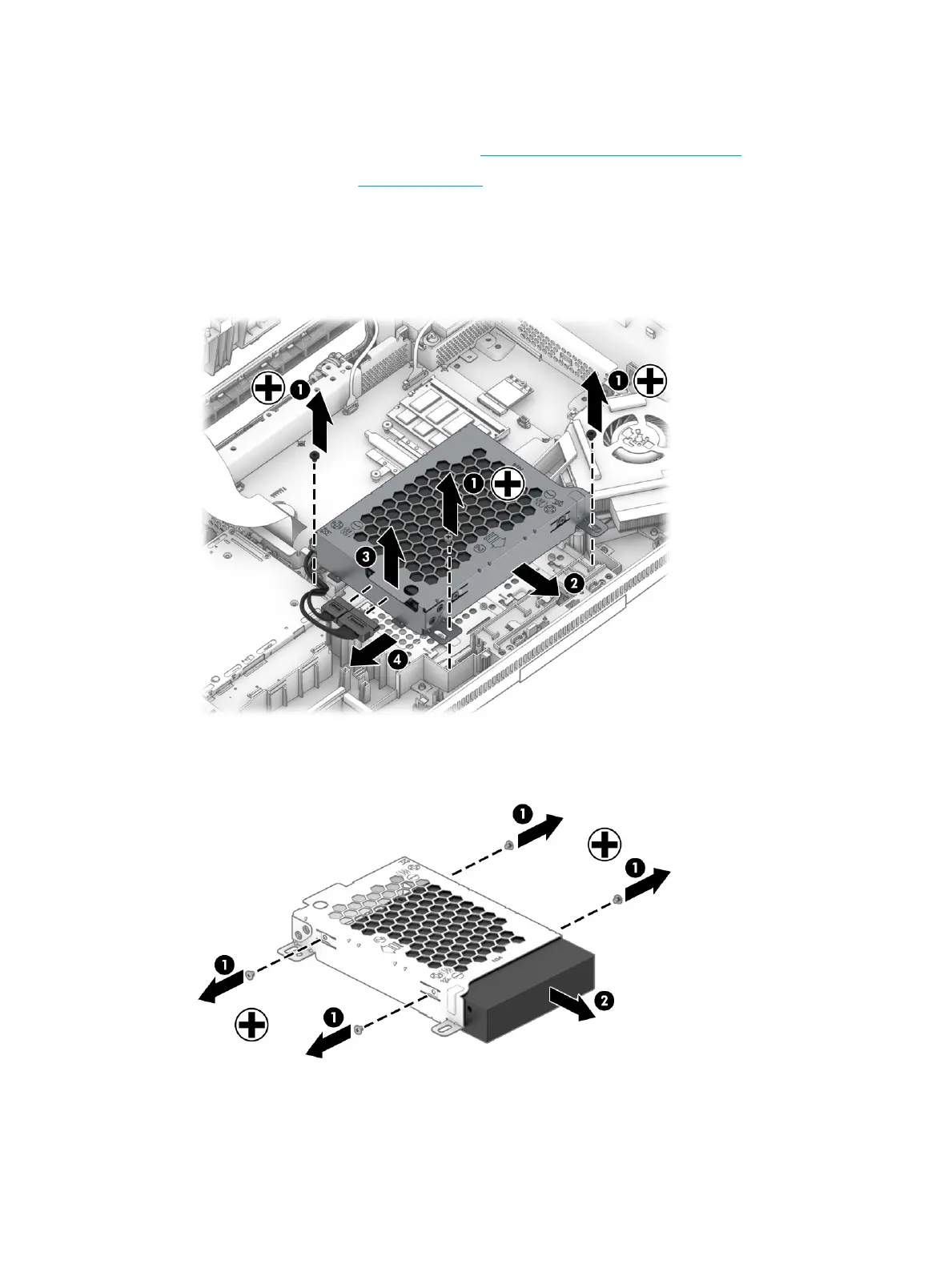

3. Remove the three Phillips screws that secure the drive cage (1).
4. Slide the cage toward the outside of the computer (2), and then lift the cage up and out of the computer
(3).
5. Disconnect the hard drive cables from the drive (4).
6. Remove the four Phillips screws from the sides of the hard drive cage (1).
7. Slide the hard drive out of the drive cage (2).
Reverse this procedure to install the hard drive and hard drive cage.
Hard drive 23
