Optical drive
1. Prepare the computer for disassembly (see Preparation for disassembly on page 16).
2. Remove the display (see Display on page 18).

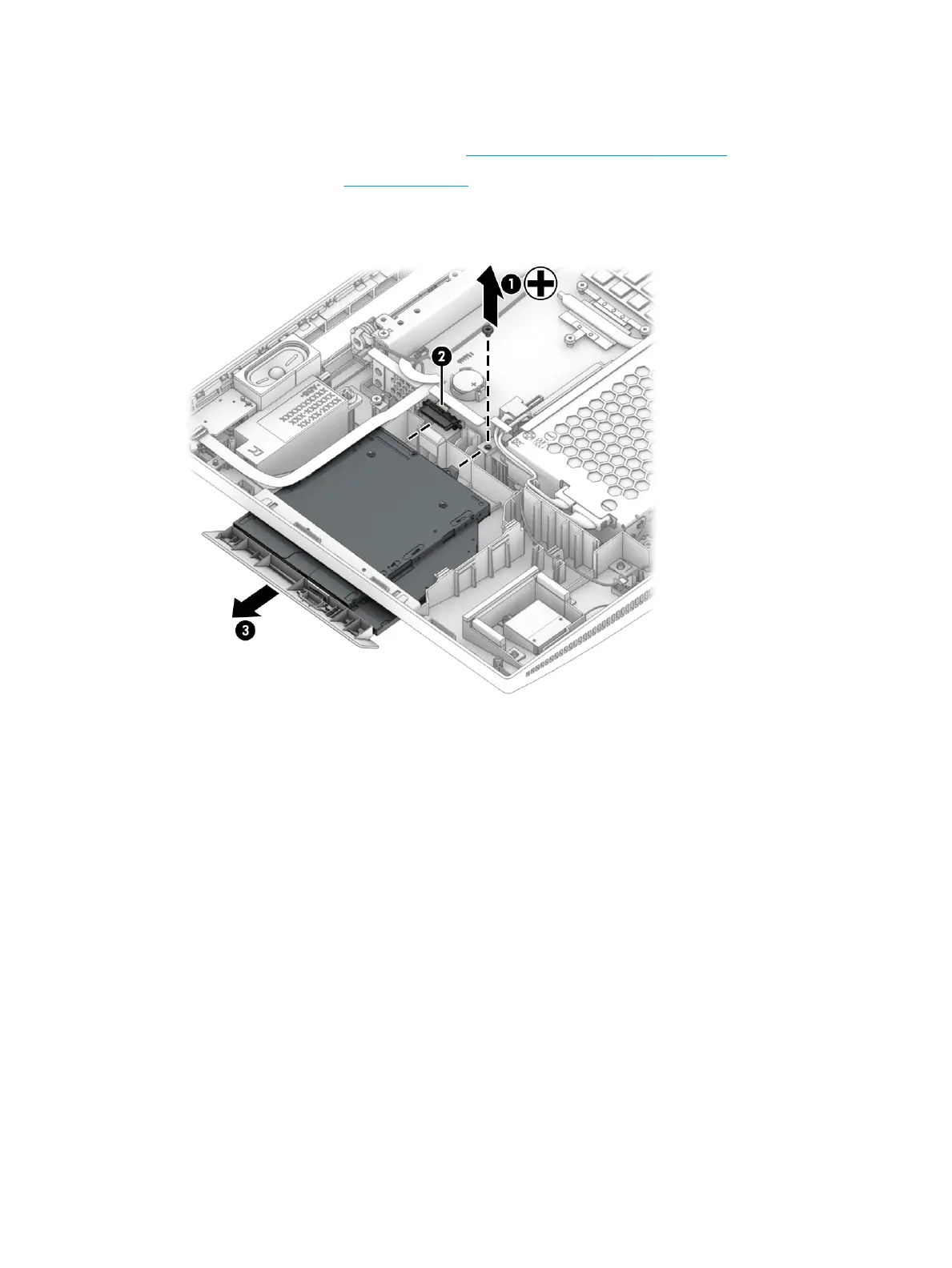

3. Remove the Phillips screw that secures the optical drive (1).
4. While holding the connector in place (2), slide the drive out of the computer (3).
20 Chapter 4 Removal and replacement procedures
