HP 200 G4 22

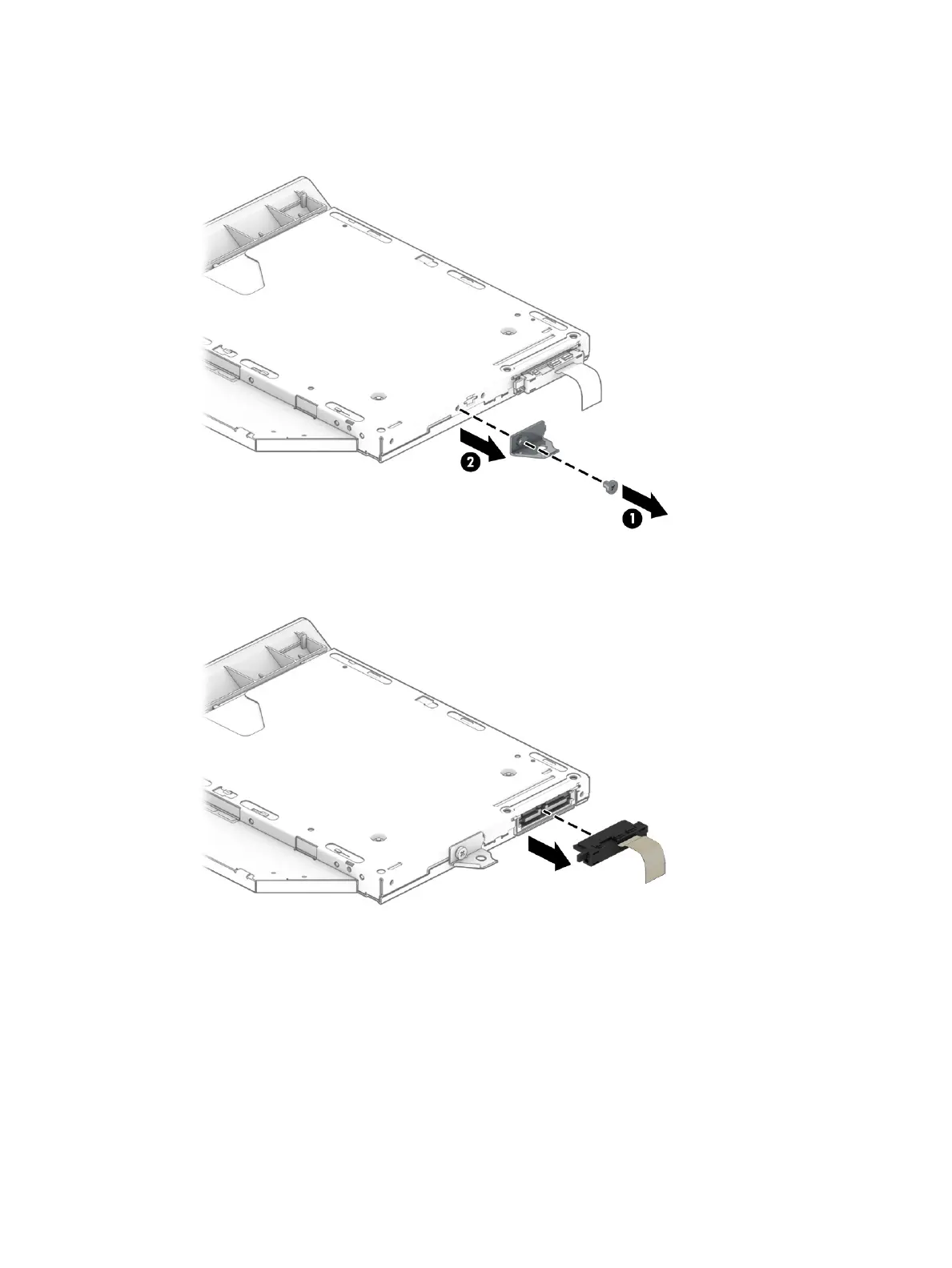

5. If replacing the optical drive, remove the bracket from the rear of the old drive and install on the new
drive. Remove the Phillips screw (1) that secures the bracket to the rear of the drive, and then remove
the bracket (2).
6. If replacing the optical drive, disconnect the connector cable from the rear of the old drive and install on
the new drive.
Optical drive 21
