HP StorageWorks 2000i G2 Modular Smart Array User Guide 23

Table 3 SAS cable requirements

Mini-SAS to SAS cables must be purchased separately.

0.5m cables are recommended for mini-SAS to SAS connections and mini-SAS to mini-SAS connections, respectively.

IMPORTANT: For a complete list of supported cables, cable part numbers, available options, and cabling

illustrations, see the MSA2000 G2 QuickSpecs at http://www.hp.com/go/msa

NOTE: For clarity, the schematic illustrations of the controllers shown in this section provide only relevant

details such as generic expansion ports. For detailed illustrations showing all components, see Rear panel

components on page 18.

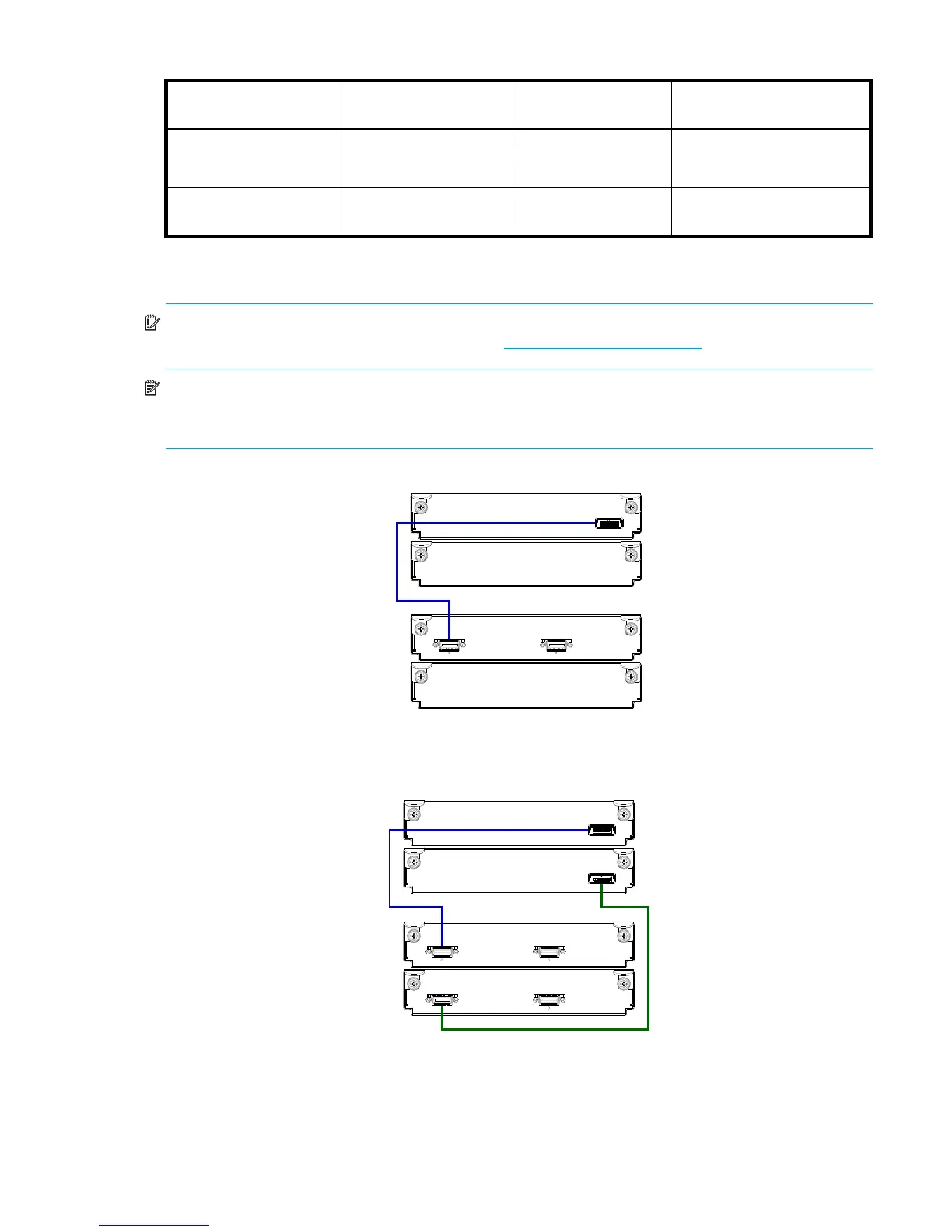

Figure 1 Cabling connections between a single-controller enclosure and one MSA2000 3.5" 12-drive

enclosure

Figure 2 Cabling connections between a dual-controller enclosure and one MSA2000 3.5" 12-drive

enclosure

Item MSA2000 G2 controller MSA70 I/O module MSA2000 3.5” 12-drive

I/O module

MSA2000 G2 controller

N/A mini-SAS to mini-SAS mini-SAS to SAS

MSA70 I/O module

mini-SAS to mini-SAS mini-SAS to mini-SAS mini-SAS to SAS

MSA2000 3.5” 12-drive

I/O module

mini-SAS to SAS mini-SAS to SAS SAS to SAS

In Out

Controller A

In Out

Controller A

Controller B

In Out
