HP StorageWorks 2000i G2 Modular Smart Array User Guide 25

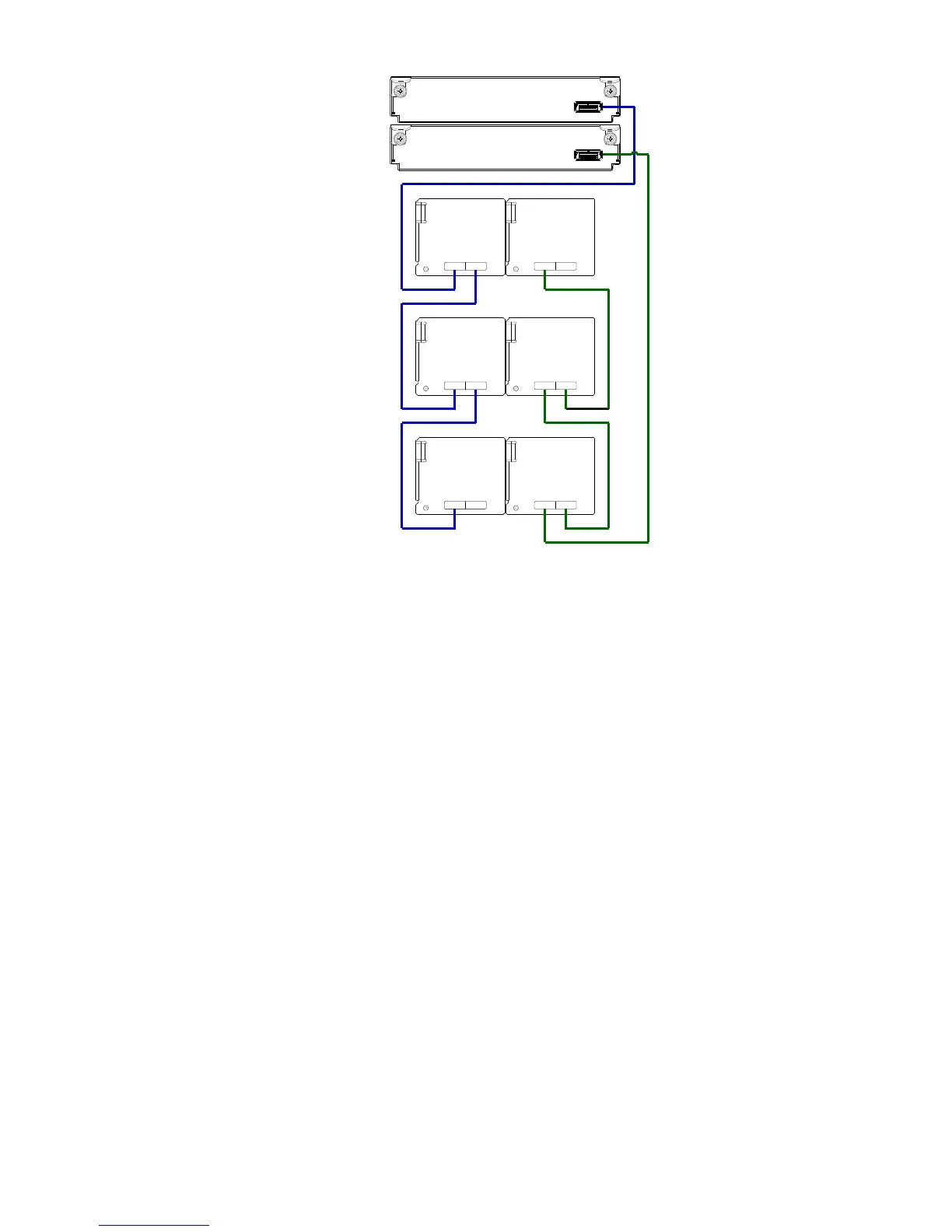

Figure 5 Cabling connections between a dual-controller enclosure and three MSA70 drive enclosures
0B
0A
Controller B
Controller A
In Out
1A
In Out
1B
In Out
2A
In Out
2B
In Out
3A
In Out
3B
