HP StorageWorks 2000i G2 Modular Smart Array User Guide 35
6 LED descriptions

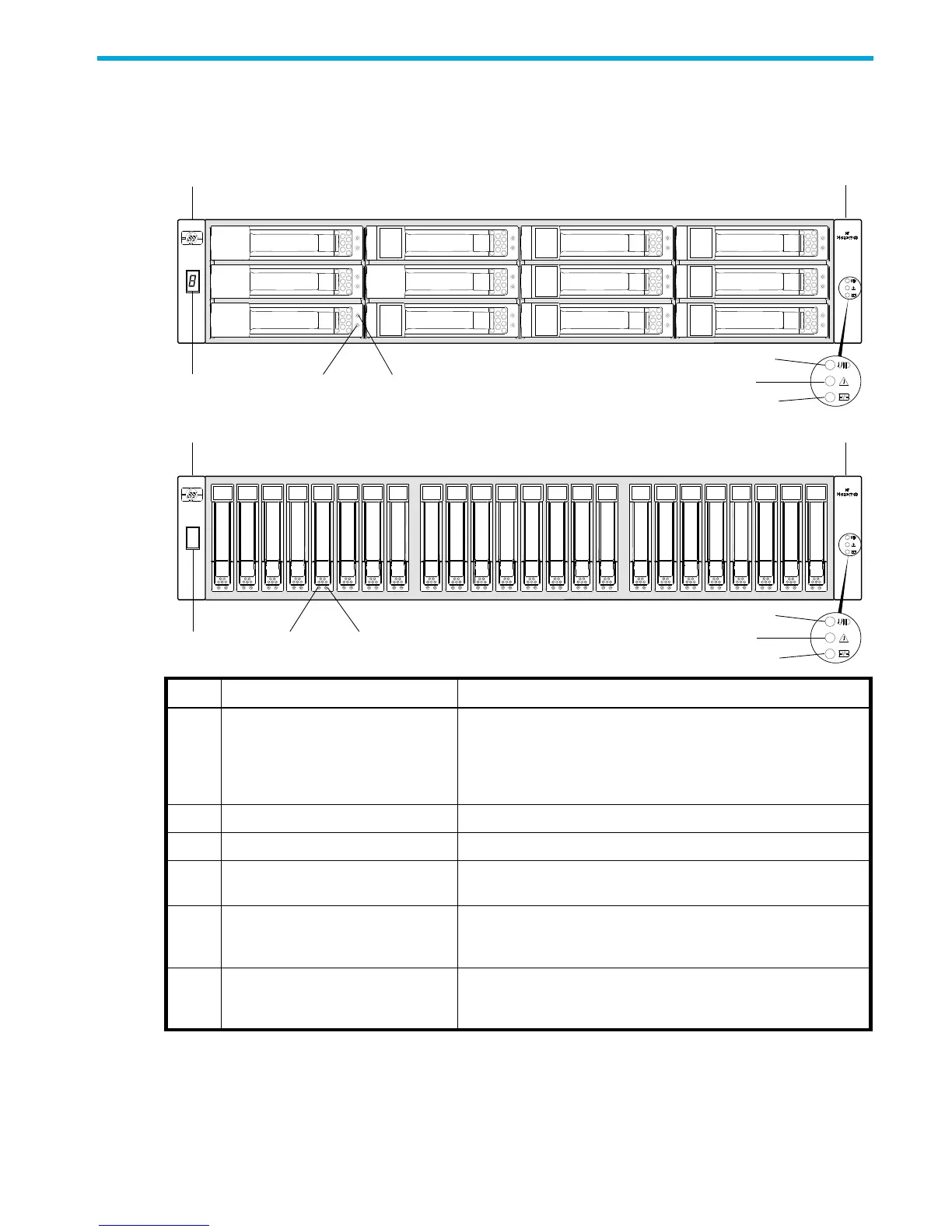

Front panel LEDs
LED Description Definition
1 Enclosure ID Green — On
Enables you to correlate the enclosure with logical views presented
by management software. Sequential enclosure ID numbering of
controller enclosures begins with the integer 1. The enclosure ID for
an attached drive enclosure is nonzero.
2 Disk drive Online/Activity See Table 6 on page 36, Disk drive LED combinations.
3 Disk drive Fault/UID See Table 6 on page 36, Disk drive LED combinations.
4 Unit Identification (UID) Blue — Identified
Off — Identity LED off
5 Fault ID Amber — Fault condition exists. The event has been identified, but
the problem needs attention.
Off — No fault condition exists.
6 Heartbeat Green — The enclosure is powered on with at least one power
supply operating normally.
Off — Both power supplies are off; the system is powered off.
1 2
4
5
6
3
Left ear Right ear
