HP StorageWorks 2000i G2 Modular Smart Array User Guide 37

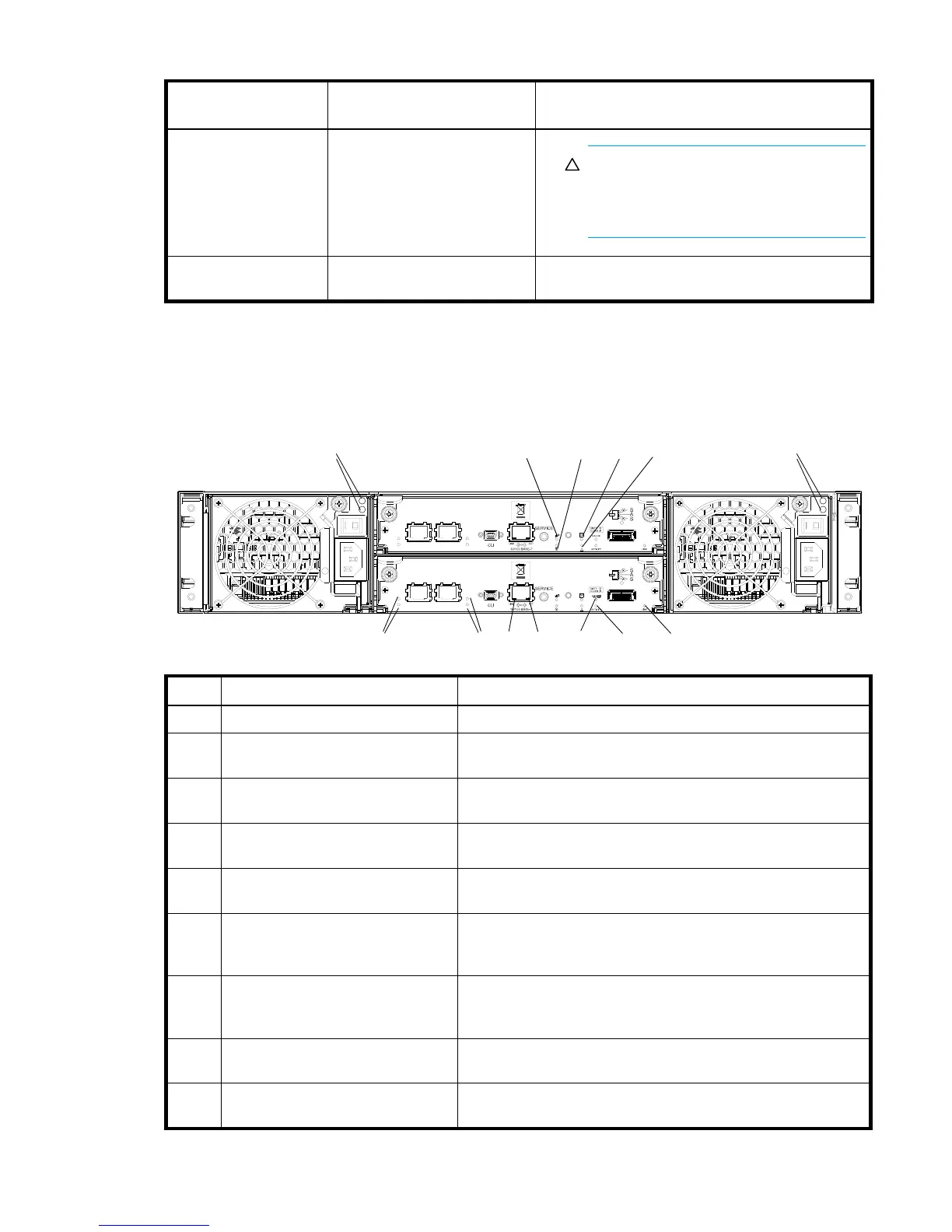

Rear panel LEDs
2312i G2 and 2324i G2
Blinking regularly (1 Hz) Off
CAUTION: Do not remove the drive.
Removing a drive may terminate the current
operation and cause data loss. The drive is
rebuilding.
Off Off Either there is no power, the drive is offline, or the
drive is not configured.
1. This Fault/UID state can indicate that the disk is a leftover. The fault may involve metadata on the disk, rather than the disk itself.
See the Clearing disk metadata topic in the reference guide or SMU online help.
Table 6 Disk drive LED combinations (continued)
Online/Activity
(green)
Fault/UID (amber/blue) Description
LED Description Definition
1 Power supply LEDs See Power supply LEDs on page 40.
2 Host 1Gb iSCSI Link Status (port 1) Off — The port is empty or the link is down.
Green — The port is connected and the link is up.
3 Host 1Gb iSCSI Link Activity (port 2) Off — The link is idle.
Blinking green— The link has I/O activity.
4 OK to Remove Off — The controller module is not prepared for removal.
Blue — The controller module is prepared for removal.
5 Unit Locator Off — Normal operation.
Blinking white— Physically identifies the controller module.
6 OK Off — Controller module is not OK.
Blinking green — System is booting.
Green — Controller module is operating normally.
7 Fault/Service Required Amber — A fault has been detected or a service action is required.
Blinking amber — Hardware-controlled powerup or a cache flush
or restore error.
8 Network Port Link Status Off — The Ethernet port is not connected or the link is down.
Green — The Ethernet link is up.
9 Network Port Activity Off — The Ethernet link has no I/O activity.
Blinking green— The Ethernet link has I/O activity.
iSCSI 1
LINK
ACT
LINK
ACT
iSCSI 2
iSCSI 1
LINK
ACT
iSCSI 2
LINK
ACT
1
2
4567
83 9 :;
1
w
