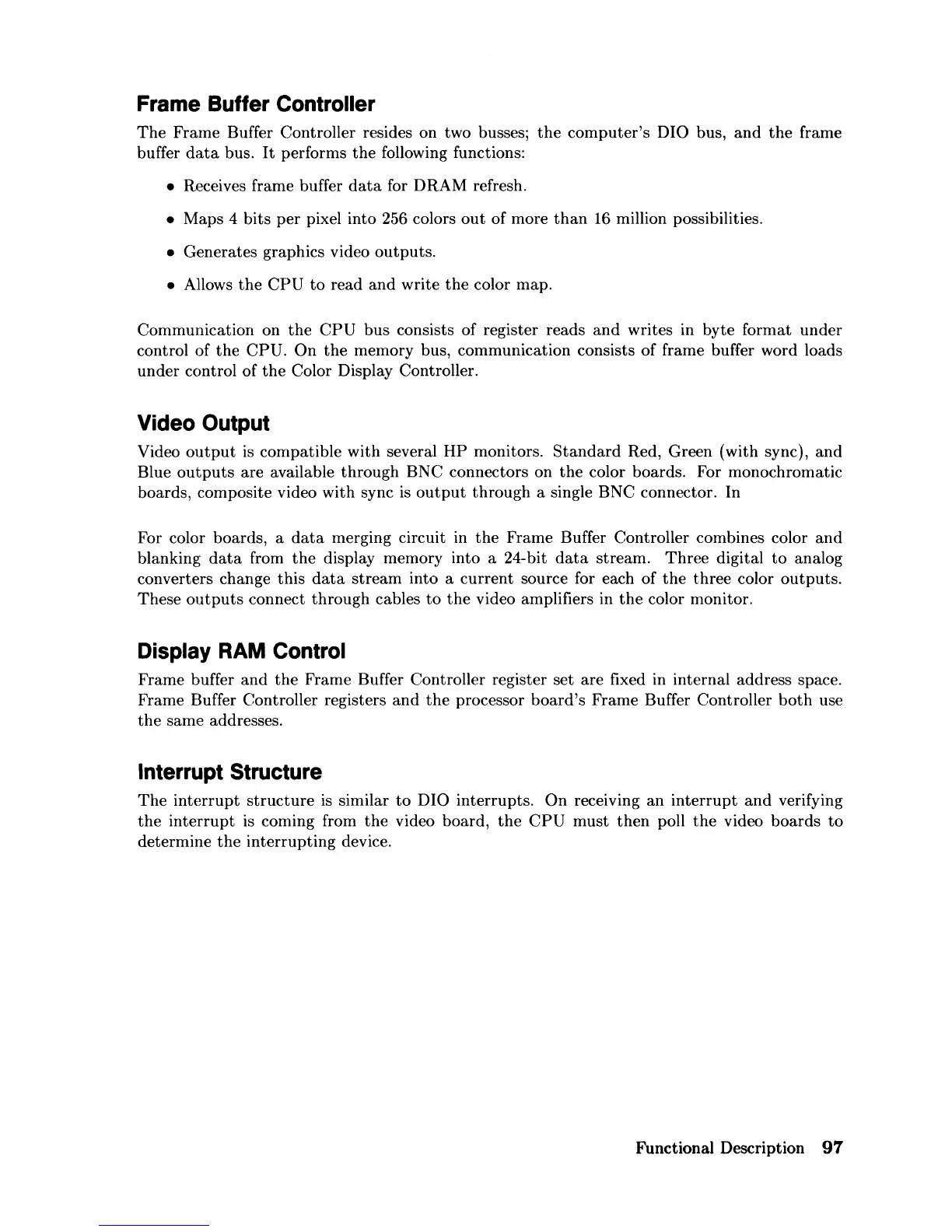

Frame Buffer Controller
The
Frame
Buffer Controller resides on two busses;
the
computer's
DIO bus,
and
the
frame
buffer
data
bus.
It
performs
the
following functions:
• Receives frame buffer
data
for
DRAM
refresh.
• Maps 4 bits
per
pixel into 256 colors
out
of more
than
16
million possibilities.
• Generates graphics video
outputs.
• Allows
the
CPU
to
read
and
write
the
color map.
Communication on
the
CPU
bus
consists of register reads
and
writes in
byte
format
under
control
of
the
CPU.
On
the
memory bus, communication consists
of
frame buffer word loads
under
control of
the
Color Display Controller.
Video Output
Video
output
is
cornpatible with several
HP
monitors.
Standard
Red, Green (with sync),
and
Blue
outputs
are
available
through
BNC
connectors on
the
color boards. For monochromatic
boards, composite video with sync is
output
through
a single BNC connector. In
For color boards, a
data
merging circuit in
the
Frame Buffer Controller combines color
and
blanking
data
from
the
display memory into a 24-bit
data
stream.
Three
digital
to
analog
converters change
this
data
stream
into a
current
source for each
of
the
three
color
outputs.
These
outputs
connect
through
cables
to
the
video amplifiers in
the
color monitor.
Display RAM Control
Frame buffer
and
the
Frame
Buffer Controller register set
are
fixed in internal address space.
Frame Buffer
Controller registers
and
the
processor
board's
Frame
Buffer Controller
both
use
the
same addresses.
Interrupt Structure
The
interrupt
structure
is similar
to
DIO
interrupts.
On
receiving
an
interrupt
and
verifying
the
interrupt
is conling from
the
video board,
the
CPU
must
then
poll
the
video
boards
to
determine
the
interrupting
device.
