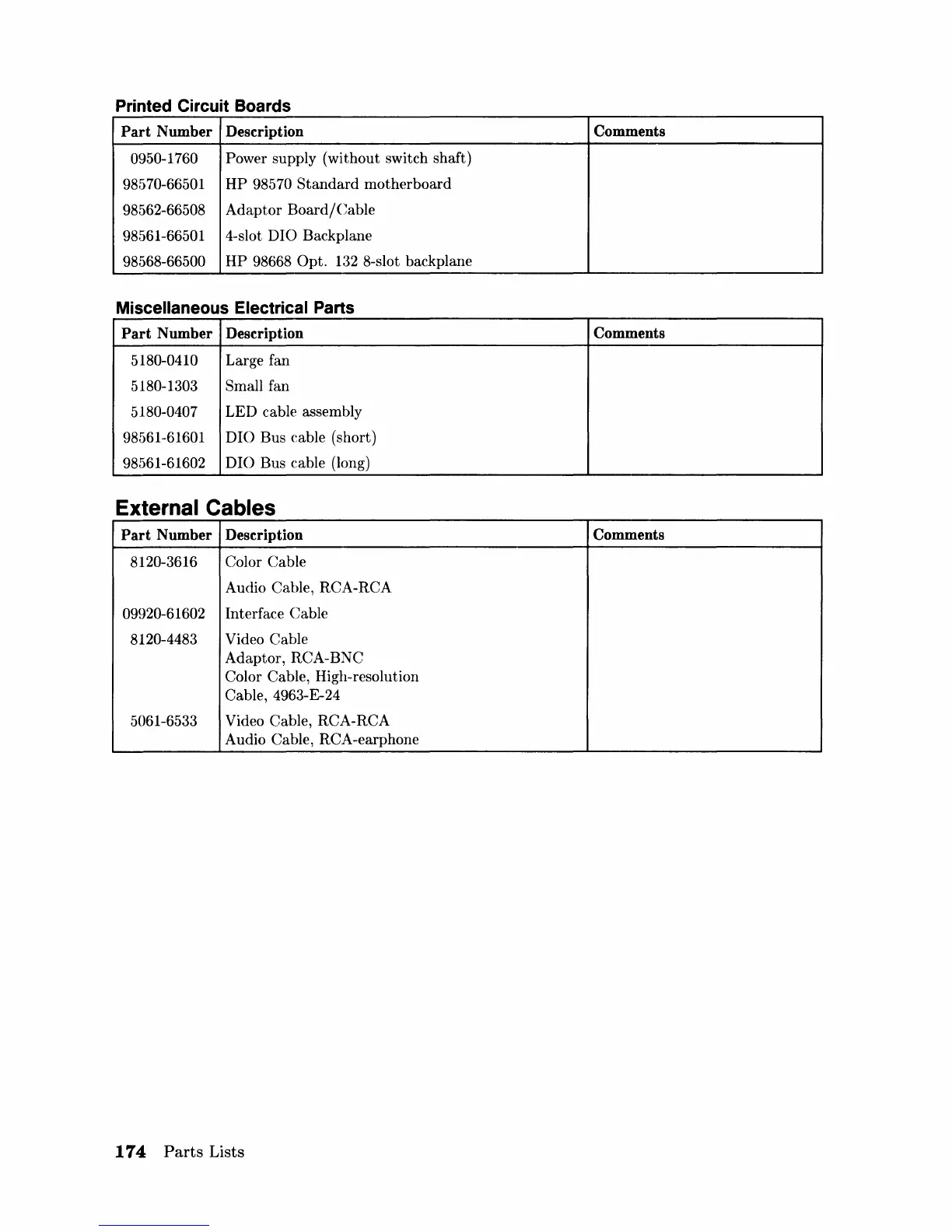

Printed Circuit Boards
Part Number Description
Comments
0950-1760
Power supply (without switch shaft)
98.570-66501
HP
98570
Standard
motherboard
98562-66508
Adaptor
Board/Cable
98561-66501
4-slot DIO Backplane
98568-66500
HP
98668 Opt.
132
8-slot backplane
Miscellaneous Electrical Parts
Part Number Description
Comments
5180-0410 Large fan
5180-1303 Small fan
5180-0407
LED cable assembly
98.561-61601
DIO Bus cable (short)
98561-61602
DIO Bus cable (long)
External Cables
Part Number
Description Comments
8120-3616 Color Cable
Audio Cable, RCA-RCA
09920-61602 Interface Cable
8120-4483 Video Cable
Adaptor, RCA-BNC
Color Cable, High-resolution
Cable, 4963-E-24
5061-6533 Video Cable, RCA-RCA
Audio Cable, RCA-earphone
174
Parts
Lists
