Motherboard/Backplane
As
Figure
1-4 shows,
three
motherboard
system-slot connectors are used by
the
system
processor
board,
system
interface
board,
and
RAM
board.
One
system
slot
is
available for
the
video
board,
display
system
interface
board,
or
2-slot
DIO
backplane.
System
Interface
Board
350
Processor
Board
4
MB
RAM
Cntrlr. Bd.
T
Empty
for
Video Board
010-11
Backplane
FRONT
High Speed Disc
Interface
2-Connector
System Bus
(Port of Rear
Cover Plate)
REAR

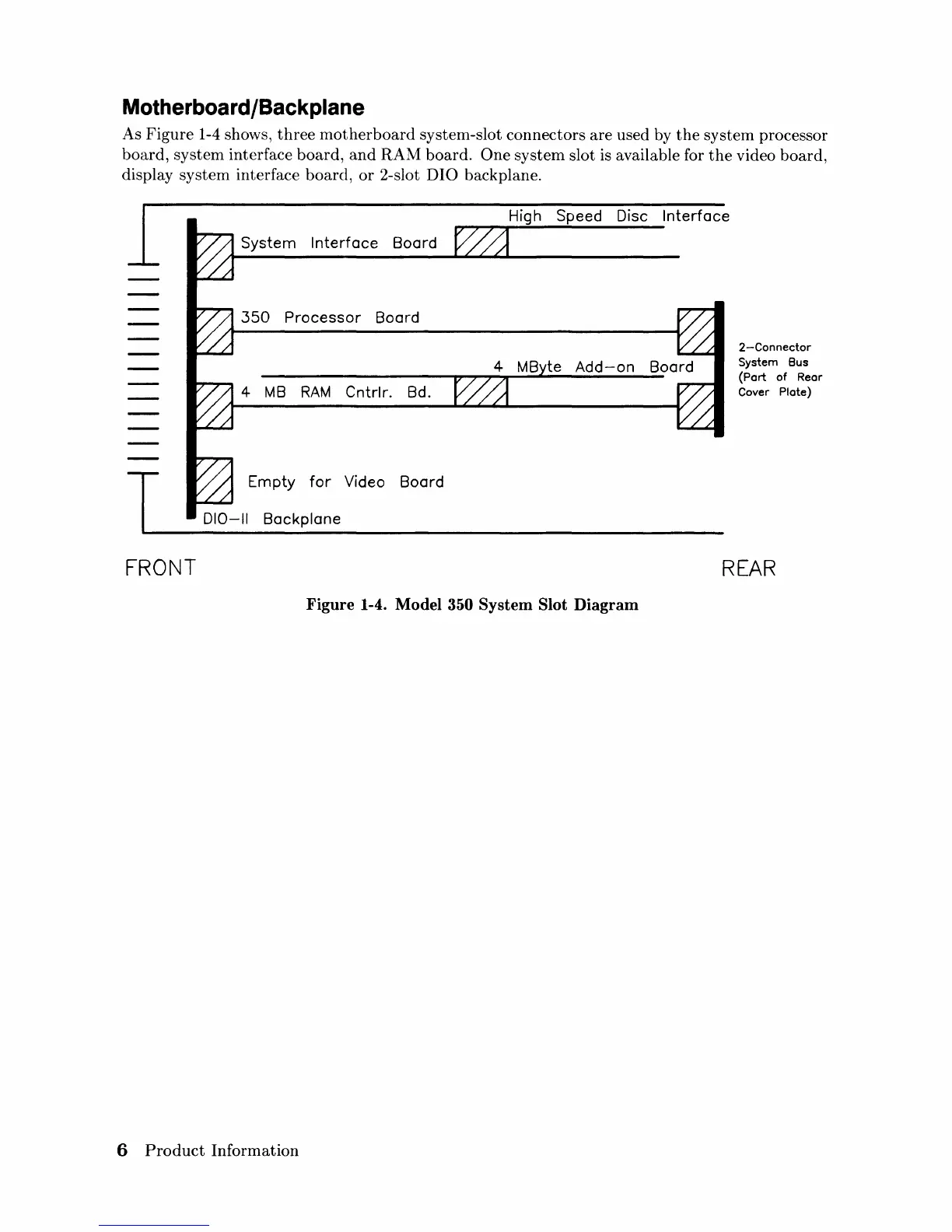

Figure
1-4.
Model
350
System
Slot
Diagram
6
Product
Information
