HP 330 Service Information Manual

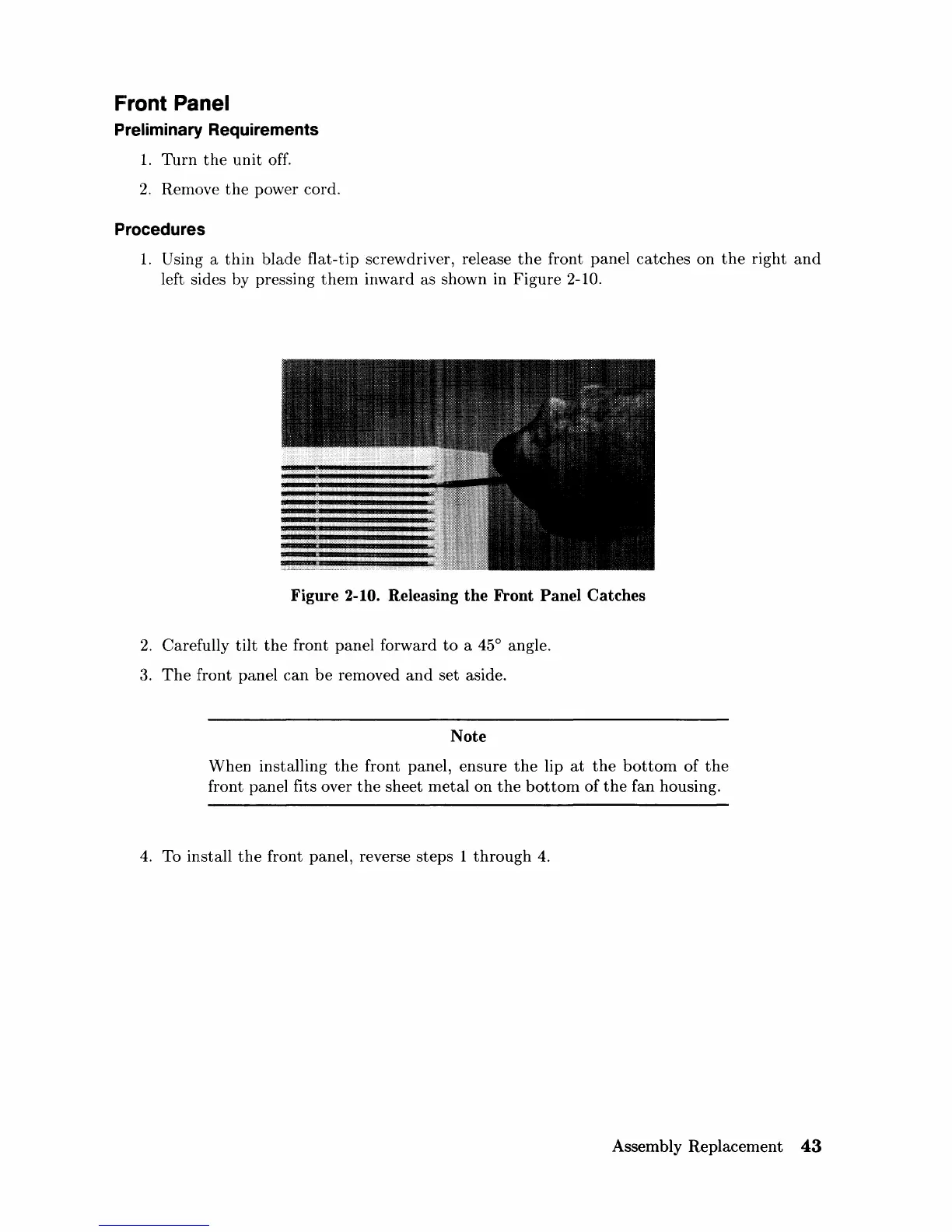

Front Panel
Preliminary Requirements
1. Turn the unit off.
2. Remove the power cord.
Procedures
1. Using a thin blade flat-tip screwdriver, release the front panel catches on the right and
left sides by pressing them inward as shown in Figure 2-10.
Figure 2-10. Releasing the Front Panel Catches
2. Carefully tilt the front panel forward to a 45° angle.
3. The front panel can be removed and set aside.
Note
When installing the front panel, ensure the lip at the bottom of the
front panel fits over the sheet metal on the bottom of the fan housing.
4. To install the front panel, reverse steps 1 through 4.
Assembly Replacement 43

HP 330 Specifications

General

Storage	500 GB HDD (7200 rpm)
Operating System	Windows 7 Professional 64-bit
Graphics	Intel HD Graphics
Dimensions	14.88 x 6.89 x 15.02 inches
Processors	Intel Celeron, Pentium, Core i3/i5/i7
Processor	Intel Celeron
USB Ports	4x USB 2.0
Optical Drive	DVD-Writer
Network	Gigabit Ethernet
