HP 330 Service Information Manual

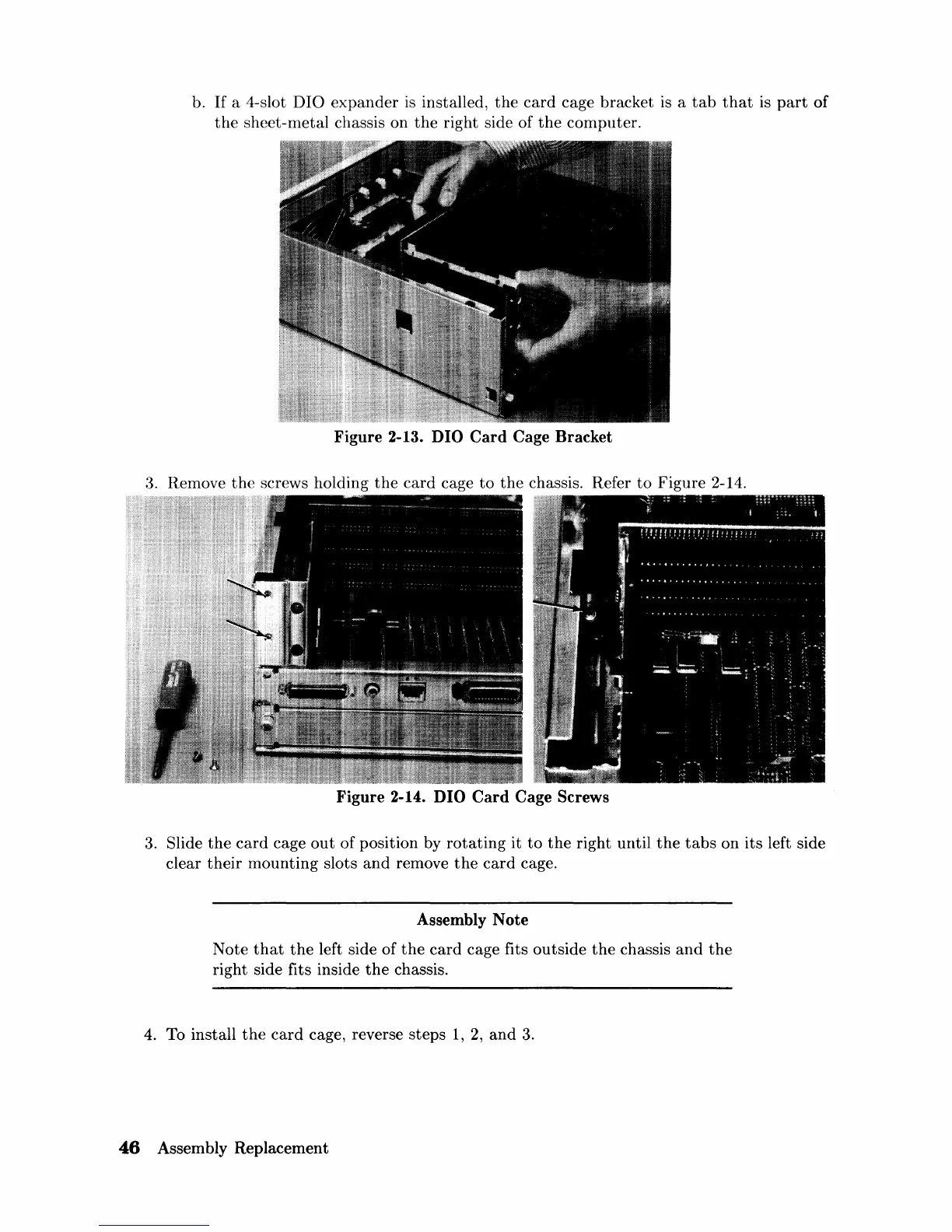

b. If a 4-slot DIO expander is installed, the card cage bracket is a tab that is part of
the sheet-metal chassis on the right side of the computer.
Figure 2-13. DIO Card Cage Bracket
3. Remove the screws holding the card cage to the chassis. Refer to Figure 2-14.
Figure 2-14. DIO Card Cage Screws
3. Slide the card cage out of position by rotating it to the right until the tabs on its left side
clear
their mounting slots and remove the card cage.
Assembly
Note
Note that the left side of the card cage fits outside the chassis and the
right side fits inside the chassis.
4. To install the card cage, reverse steps 1, 2, and 3.
46 Assembly Replacement
