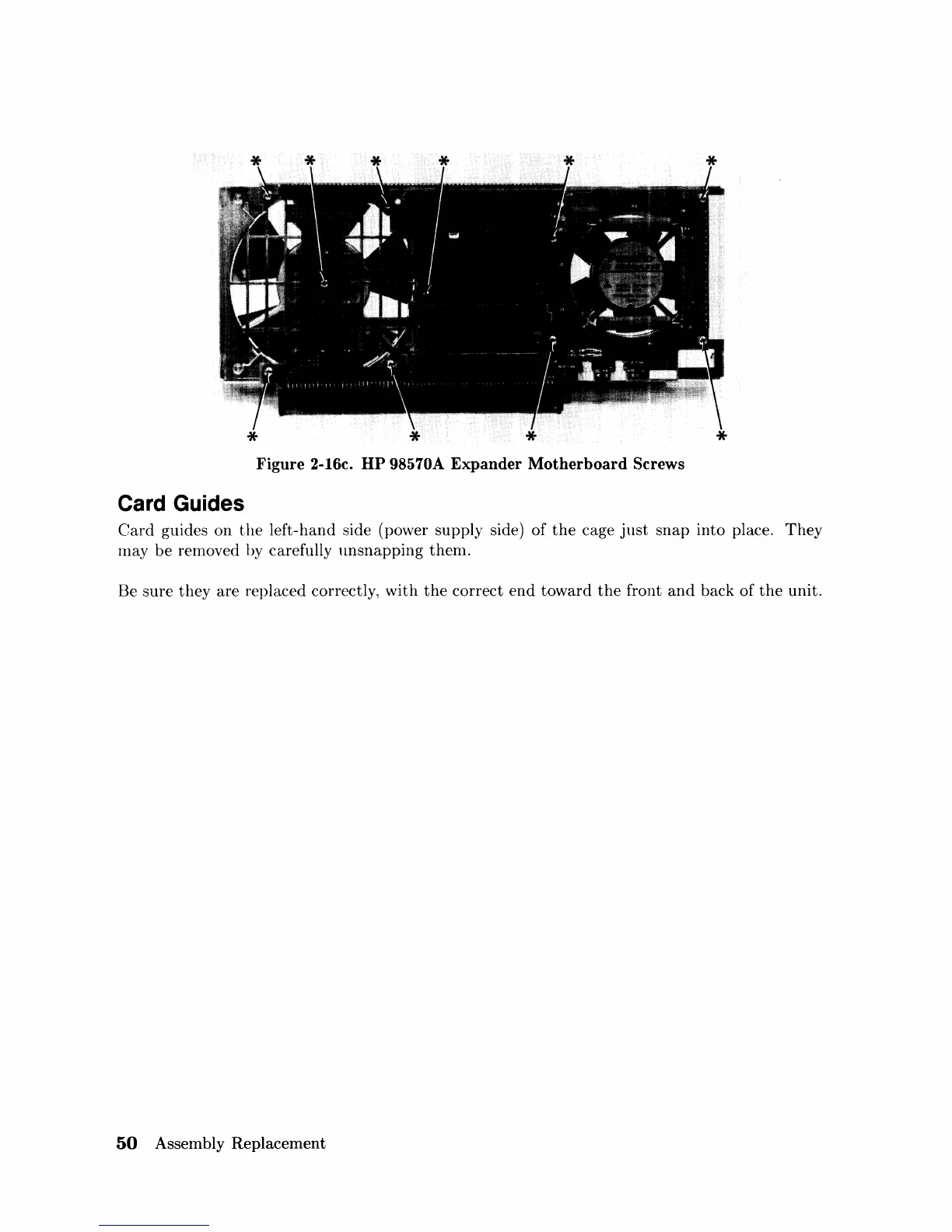

Figure 2-16c. HP 98570A Expander Motherboard Screws
Card Guides
Card
guides on
the
left-hand side (power supply side)
of
the
cage
just
snap
into place.
They
may
be
removed by carefully
unsnapping
them.
Be
sure
they
are
replaced correctly,
with
the
correct
end
toward
the
front
and
back of
the
unit.
50
Assembly Replacement
