Features
These cornputers have several useful features. Table 1-1 lists the main features.

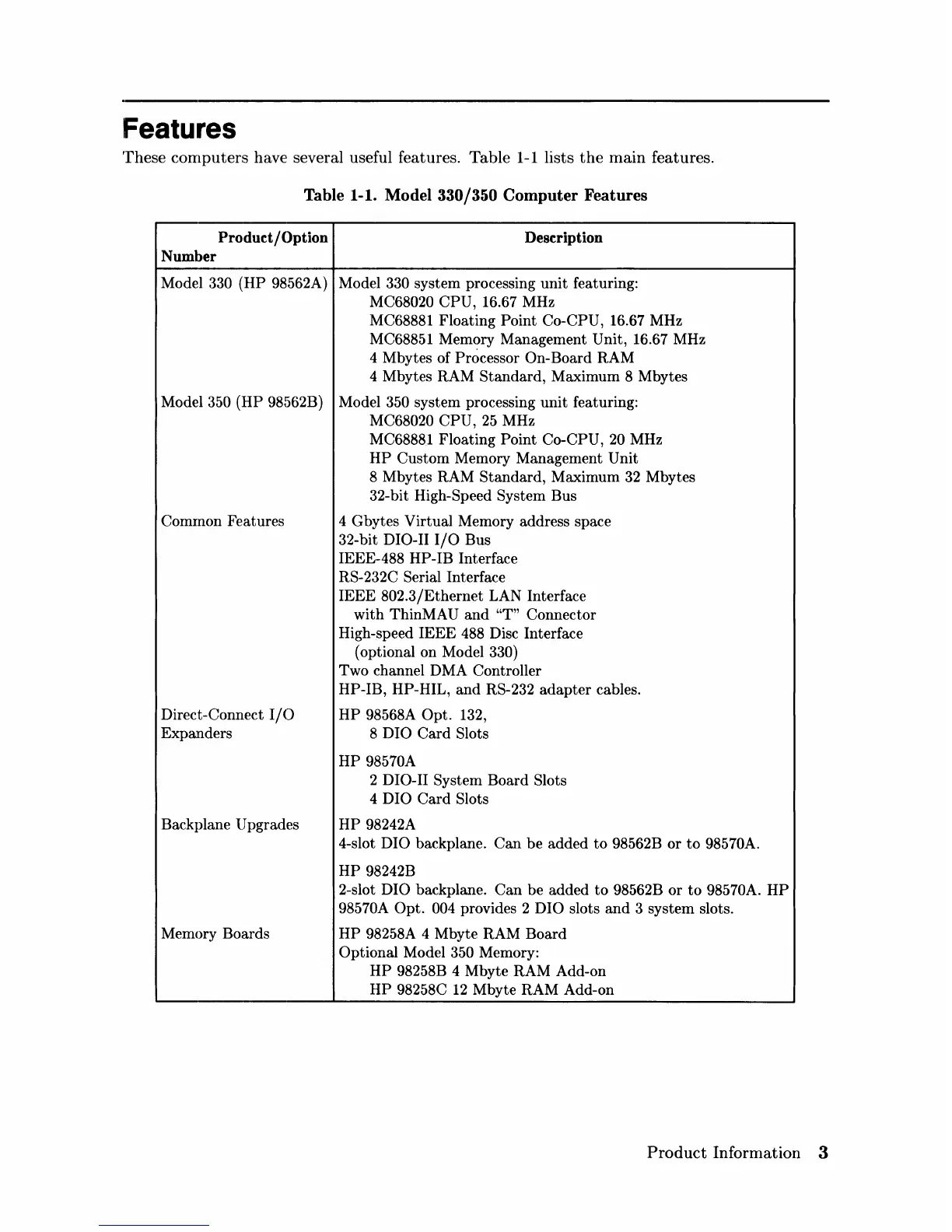

Table 1-1. Model 330/350 Computer Features
Product / Option Description
Number
Model 330 (HP 98562A) Model 330 system processing unit featuring:
MC68020 CPU, 16.67 MHz
MC68881 Floating Point
Co-CPU, 16.67 MHz
MC68851 Memory Management Unit, 16.67 MHz
4 Mbytes of Processor
On-Board RAM
4 Mbytes RAM Standard, Maximum 8 Mbytes
Model
350 (HP 98562B) Model 350 system processing unit featuring:
MC68020 CPU, 25 MHz
M C68881 Floating Point
Co-CPU, 20 MHz
HP Custom Memory Management Unit
8 Mbytes RAM Standard, Maximum
32 Mbytes
32-bit High-Speed
System Bus
Common Features 4 Gbytes Virtual Memory address space
32-bit
DIO-II I/O Bus
IEEE-488 HP-IB Interface
RS-232C Serial Interface
IEEE 802.3/Ethernet LAN Interface
with ThinMAU
and "T" Connector
High-speed
IEEE 488 Disc Interface
(optional on Model
330)
Two channel DMA Controller
HP-IB, HP-HIL,
and RS-232 adapter cables.
Direct-Connect
I/O HP 98568A Opt. 132,
Expanders
8
DIO Card Slots
HP 98570A
2 D I 0- II System Board Slots
4 DIO Card Slots
Backplane Upgrades
HP 98242A
4-slot
DIO backplane. Can be added to 98562B or to 98570A.
HP 98242B
2-slot
DIO backplane. Can be added to 98562B or to 98570A. HP
98570A Opt. 004 provides 2 DIO slots and 3 system slots.
Memory Boards
HP 98258A 4 Mbyte RAM Board
Optional Model 350 Memory:
HP 98258B 4 Mbyte RAM Add-on
HP 98258C 12 Mbyte RAM Add-on
Product Information 3
