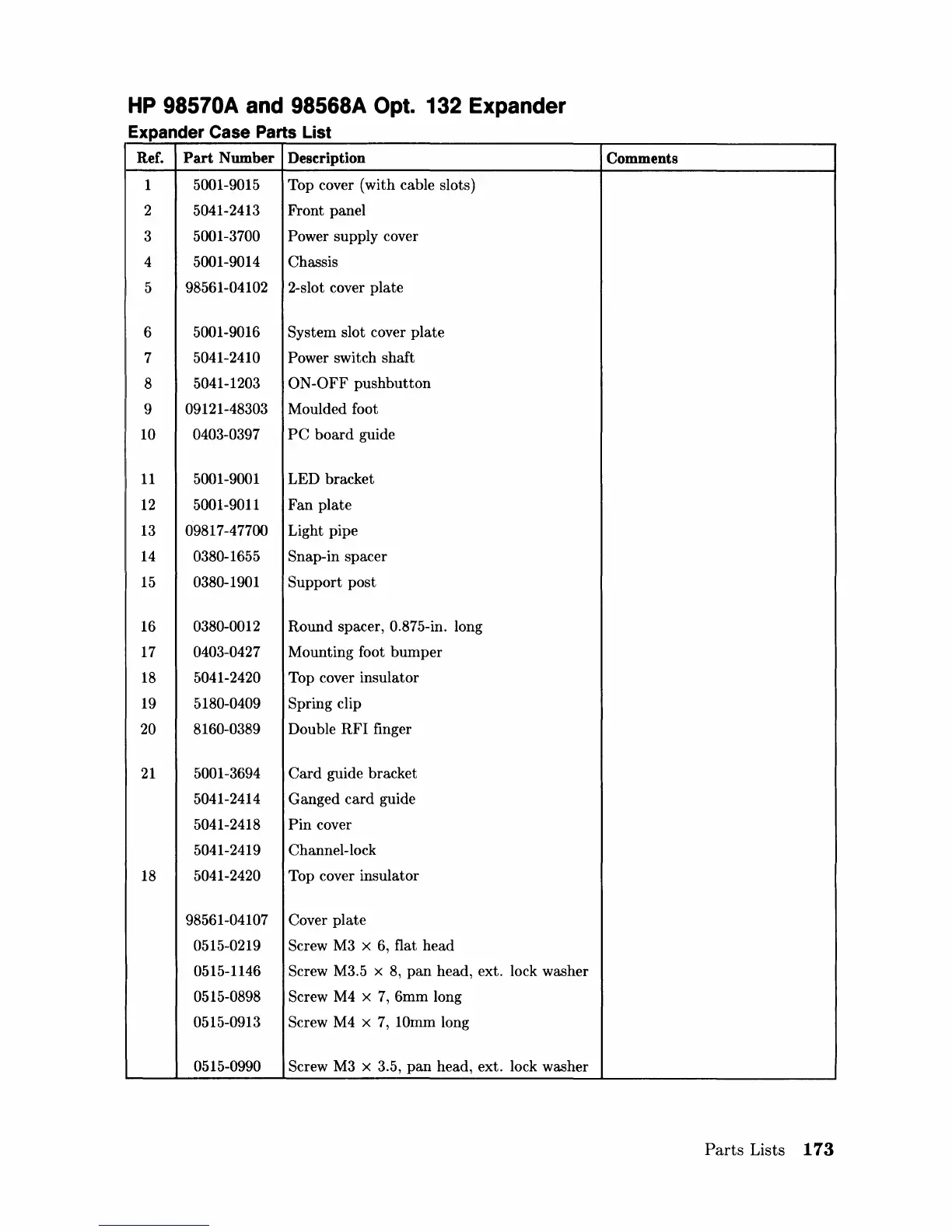

HP
98570A and 98568A Opt. 132 Expander
Expander Case Parts List
Ref.
Part
Number
Description
1
5001-9015 Top cover (with cable slots)
2 5041-2413
Front panel
3
5001-3700 Power supply cover
4
5001-9014 Chassis
5
98561-04102 2-slot cover plate
6
5001-9016 System slot cover plate
7
5041-2410 Power switch shaft
8
5041-1203 ON-OFF pushbutton
9
09121-48303 Moulded foot
10
0403-0397
PC
board guide
11
5001-9001 LED bracket
12
5001-9011 Fan plate
13
09817-47700 Light pipe
14
0380-1655
Snap-
in spacer
15
0380-1901
Support post
16
0380-0012 Round spacer, 0.875-in. long
17
0403-0427 Mounting foot bumper
18
~i041-2420
Top cover insulator
19
~i180-0409
Spring clip
20
8160-0389 Double
RFI
finger
21
~iOOl-3694
Card
guide bracket
~i041-2414
Ganged card guide
5041-2418
Pin
cover
5041-2419 Channel-lock
18
5041-2420 Top cover insulator
98561-04107 Cover plate
0515-0219
Screw
M3
x
6,
flat head
0515-1146
Screw
M3.5 x
8,
pan
head, ext. lock washer
0515-0898
Screw
M 4 x
7,
6mm long
0515-0913
Screw
M4
x
7,
10mm long
0515-0990 Screw M3 x 3.5, pan head, ext. lock washer
Comments
Parts
Lists
173
To Next Page
