136
• Configure the portal server parameters as needed. This example uses the default values.

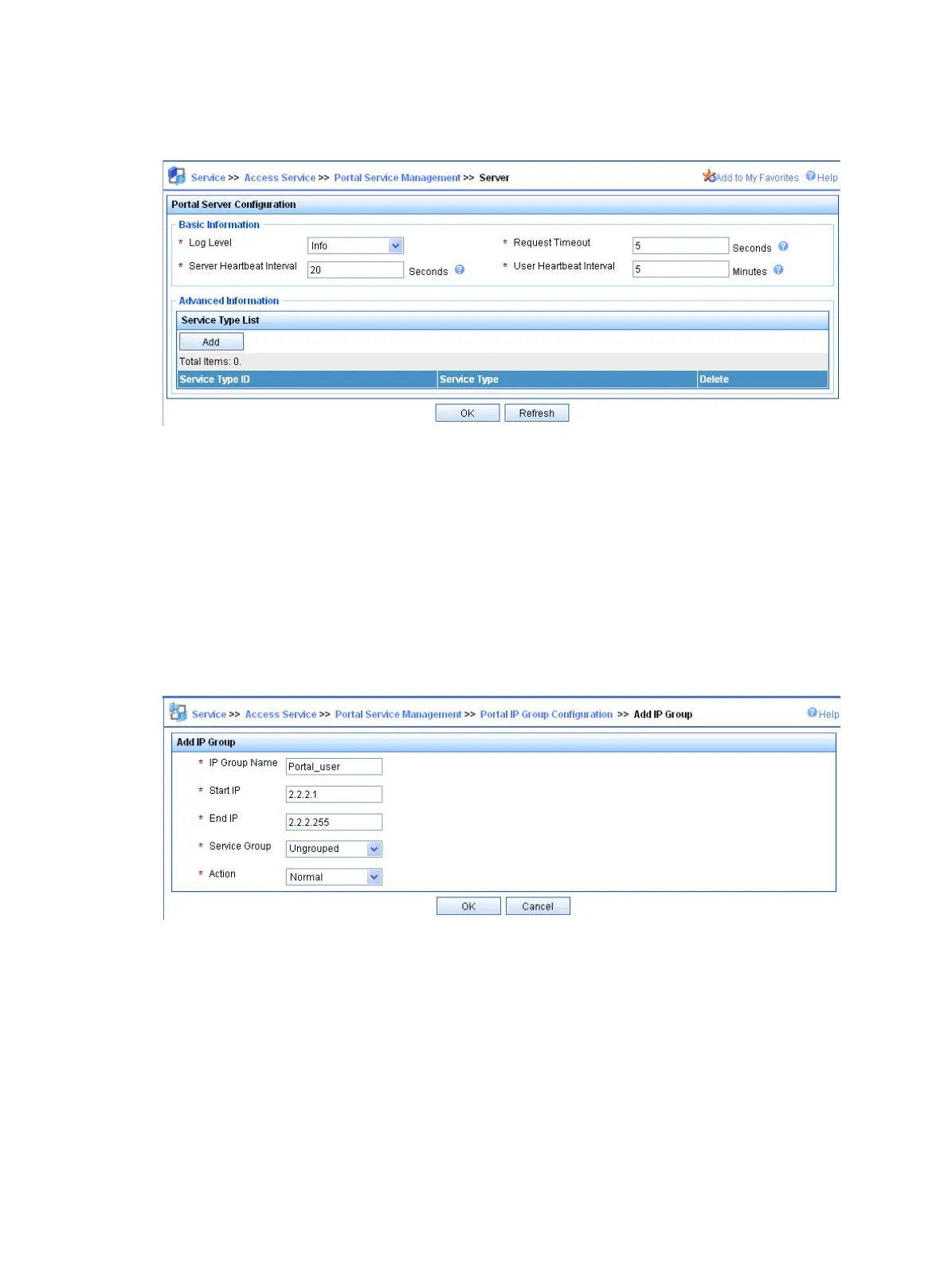

Figure 41 Portal server configuration
# Configure the IP address group.
Select Portal Service Management > IP Group from the navigation tree to enter the portal IP address
group configuration page. Then, click Add to enter the page shown in Figure 47.
• Enter the I
P group name.
• Enter the start IP address and end IP address of the IP group. Make sure that the host IP address
(2.2.2.2) is in the IP group.
• Select a service group. By default, the group Ungrouped is used.
• Select the IP group type Normal.
Figure 42 Add an IP address group
# Add a portal device.
Select Portal Service Management > Device from the navigation tree to enter the portal device
configuration page. Then, click Add to enter the page shown in Figure 48.
• En
ter the device name NAS.
• Enter the IP address of the switch's interface connected to the user.
• Enter the key, which must be the same as that configured on the switch.
• Set whether to enable IP address reallocation. This example uses direct portal authentication, and
therefore select No from the Reallocate IP list.
