• Set whether to support the portal server heartbeat and user heartbeat functions. In this example,
select No for both Support Server Heartbeat and Support User Heartbeat.

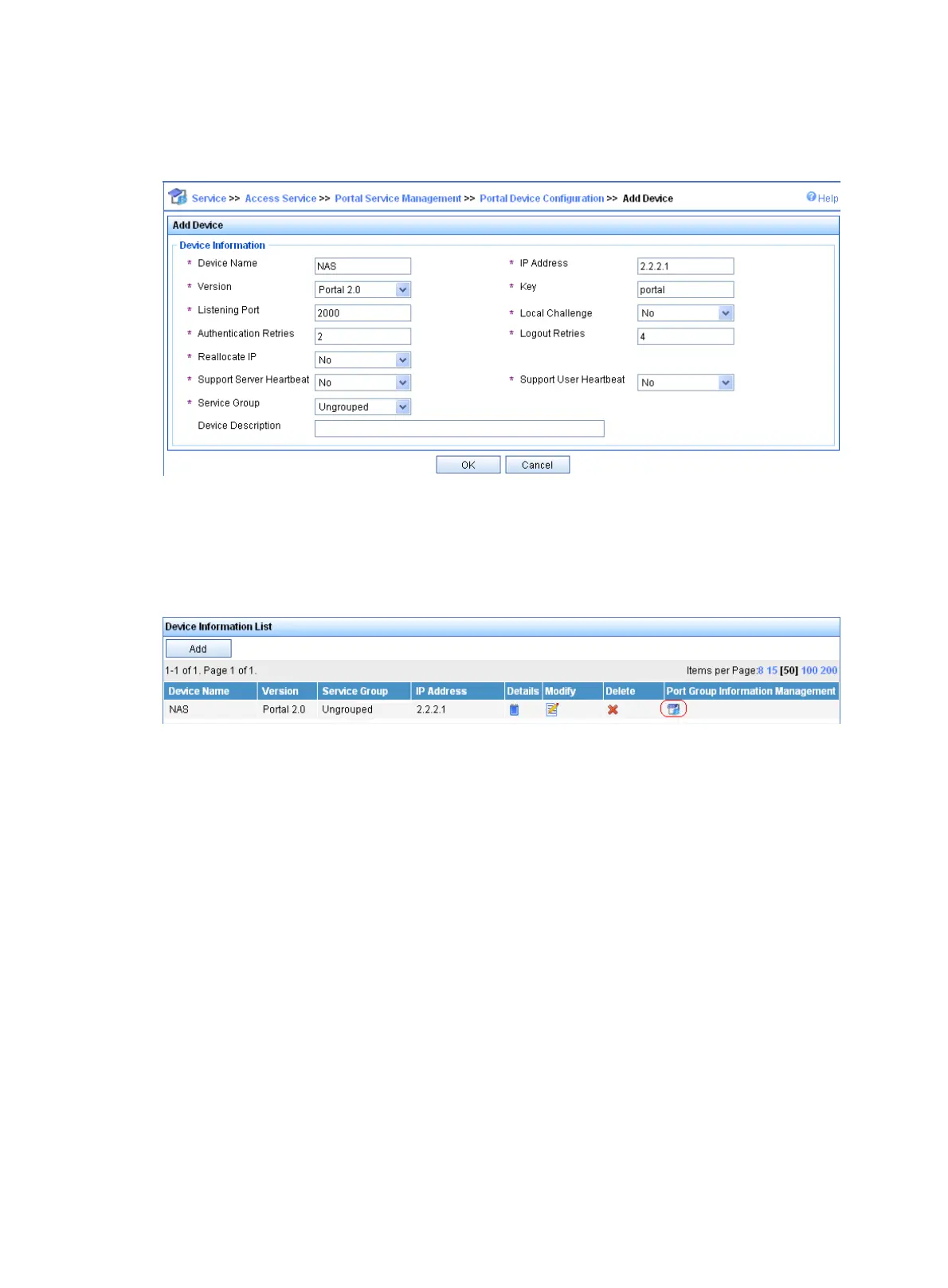

Figure 43 Add a portal device
# Associate the portal device with the IP address group.
As shown in Figure 49,
click the icon in the Port Group Information Management column of device NAS
to enter the port group configuration page.
Figure 44 Device list
On the port group configuration page, click Add to enter the page shown in Figure 50. Perform the
following configurations:
• Enter the port group name.
• Select the configured IP address group. The IP address used by the user to access the network must
be within this IP address group.
