Model 5300A
Generali Information

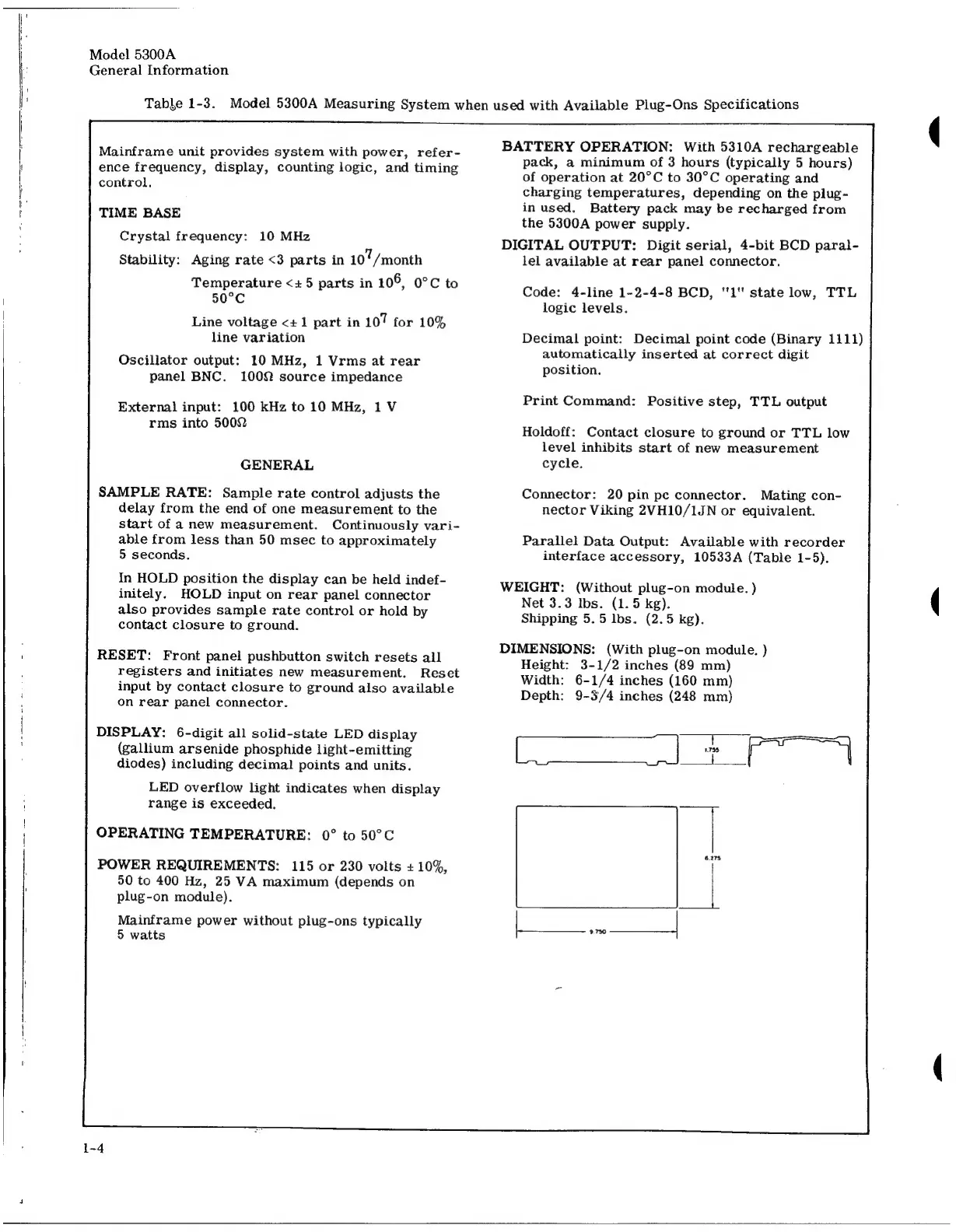

Table 1-3. Model 5300A Measuring System when used with Available Plug-Ons Specifications
Mainframe unit provides system with power, refer-
ence frequency, display, counting logic, and timing
control,
TIME BASE
Crystal frequency: 10 MHz
Stability: Aging rate <3 parts in 10’/month
Temperature <5 parts in 108, 0°C to
50°C
Line voltage <+1 part in 107 for 10%
line variation
Oscillator output: 10 MHz, 1 Vrms at rear
panel BNC. 100 source impedance
External input: 100 kHz to 10 MHz, 1V
rms into 5002
GENERAL
SAMPLE RATE: Sample rate control adjusts the
delay from the end of one measurement to the
start of a new measurement. Continuously vari-
able from less than 50 msec to approximately
5 seconds.
In HOLD position the display can be held indef-
initely. HOLD input on rear panel connector
also provides sample rate control or hold by
contact closure to ground.
RESET: Front panel pushbutton switch resets all
registers and initiates new measurement. Reset
input by contact closure to ground also available
on rear panel connector.
DISPLAY: 6-digit all solid-state LED display
(gallium arsenide phosphide light-emitting
diodes) including decimal points and units.
LED overflow light indicates when display
range is exceeded.
OPERATING
TEMPERATURE:
0°
to
50°C
POWER REQUIREMENTS: 115 or 230 volts + 10%,
50 to 400 Hz, 25 VA maximum (depends on
plug-on module).
Mainframe power without plug-ons typically
5 watts
BATTERY OPERATION: With 5310A rechargeable
pack, a minimum of 3 hours (typically 5 hours)
of operation at 20°C to 30°C operating and
charging temperatures, depending on the plug-
in used. Battery pack may be recharged from
the 5300A power supply.
DIGITAL OUTPUT: Digit serial, 4-bit BCD paral-
lel available at rear panel connector.
Code: 4-line 1-2-4-8 BCD, ''1'' state low, TTL
logic levels.
Decimal point: Decimal point code (Binary 1111)
automatically inserted at correct digit
position.
Print Command: Positive step, TTL output
Holdoff: Contact closure to ground or TTL low
level inhibits start of new measurement
cycle.
Connector: 20 pin pc connector. Mating con-
nector Viking 2VH10/1JN or equivalent.
Parallel Data Output: Available with recorder
interface accessory, 10533A (Table 1-5).
WEIGHT: (Without plug-on module. )
Net 3.3 Ibs. (1.5 kg).
Shipping 5.5 lbs. (2.5 kg).
DIMENSIONS: (With plug-on module. )
Height: 3-1/2 inches (89 mm)
Width: 6-1/4 inches (160 mm)
Depth: 9-3/4 inches (248 mm)
