Model 5300A
Maintenance

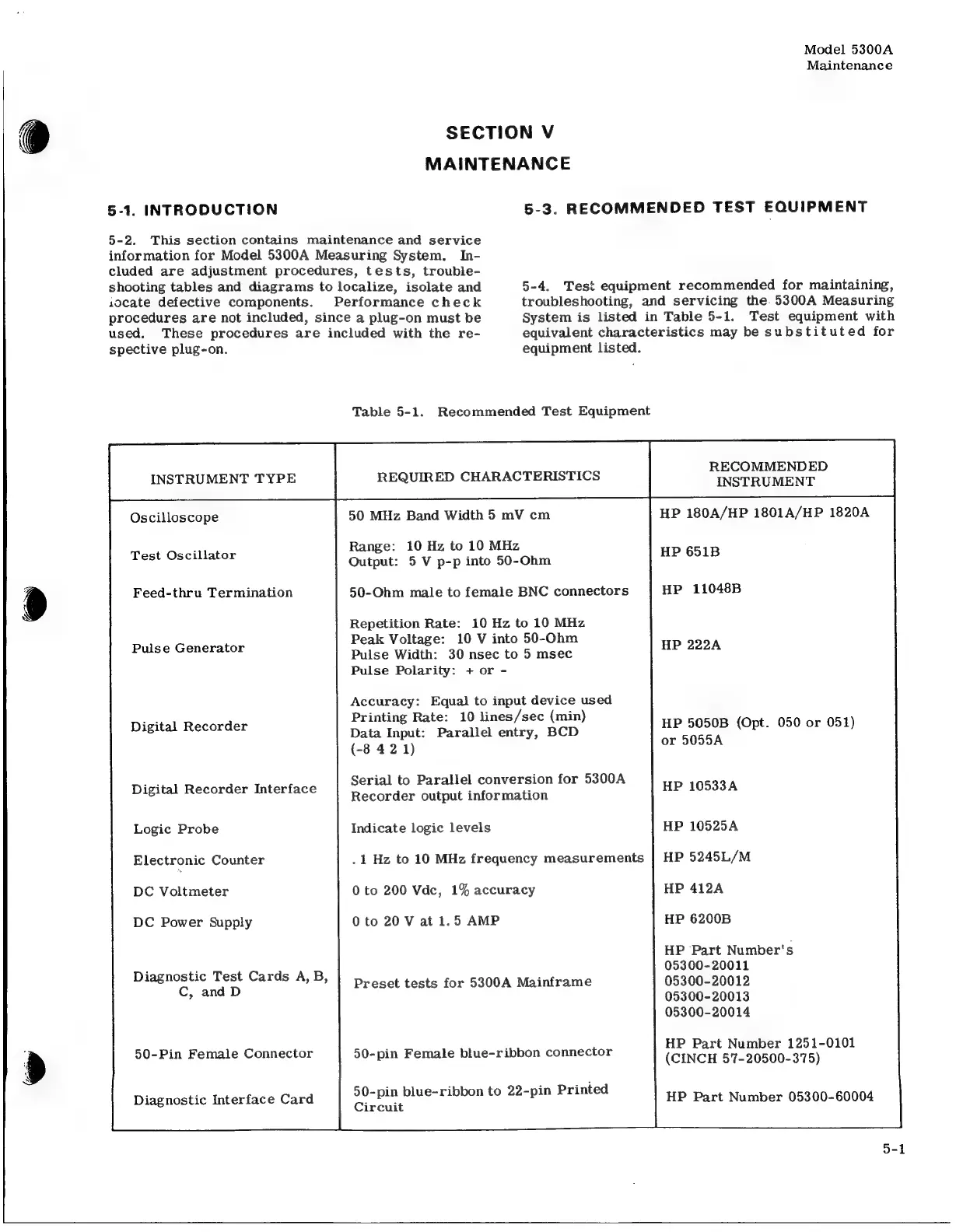

SECTION V
MAINTENANCE
5-1. INTRODUCTION
5-2. This section contains maintenance and service
information for Model 5300A Measuring System. In-
cluded are adjustment procedures, tests, trouble-
shooting tables and diagrams to localize, isolate and
socate defective components. Performance check
procedures are not included, since a plug-on must be
used. These procedures are included with the re-
5-3. RECOMMENDED TEST EQUIPMENT
5-4. Test equipment recommended for maintaining,
troubleshooting, and servicing the. 5300A Measuring
System is listed in Table 5-1. Test equipment with
equivalent characteristics may be substituted for
spective plug-on.
INSTRUMENT TYPE
Oscilloscope
Test Oscillator
Feed-thru Termination
Pulse Generator
Digital Recorder
Digital Recorder Interface
Logic Probe
Electronic Counter
DC Voltmeter
DC Power Supply
Diagnostic Test Cards A, B,
C, and D
50-Pin Female Connector
Diagnostic Interface Card
equipment listed.
Table 5-1. Recommended Test Equipment
REQUIRED CHARACTERISTICS
50 MHz Band Width 5 mV cm
Range: 10 Hz to 10 MHz
Output: 5 V p-p into 50-Ohm
50-Ohm male to female BNC connectors
Repetition Rate: 10 Hz to 10 MHz
Peak Voltage: 10 V into 50-Ohm
Pulse Width: 30 nsec to 5 msec
Pulse Polarity: + or -
Accuracy: Equal to input device used
Printing Rate: 10 lines/sec (min)
Data Input: Parallel entry, BCD
(-8 4 2 1)
Serial to Parallel conversion for 5300A
Recorder output information
Indicate logic levels
.1 Hz to 10 MHz frequency measurements
0 to 200 Vde, 1% accuracy
0 to 20 V at 1.5 AMP
Preset tests for 5300A Mainframe
50-pin Female blue-ribbon connector
50-pin blue-ribbon to 22-pin Printed
Circuit
RECOMMENDED
INSTRUMENT
HP 180A/HP 1801A/HP 1820A
HP 651B
HP 11048B
HP 222A
HP 5050B (Opt. 050 or 051)
or 5055A
HP 10533A
HP 105254
HP 5245L/M
HP 412A
HP 6200B
HP Part Number's
05300-20011
05300-20012
05300-20013
05300-20014
HP Part Number 1251-0101
(CINCH 57-20500-375)
HP Part Number 05300-60004
