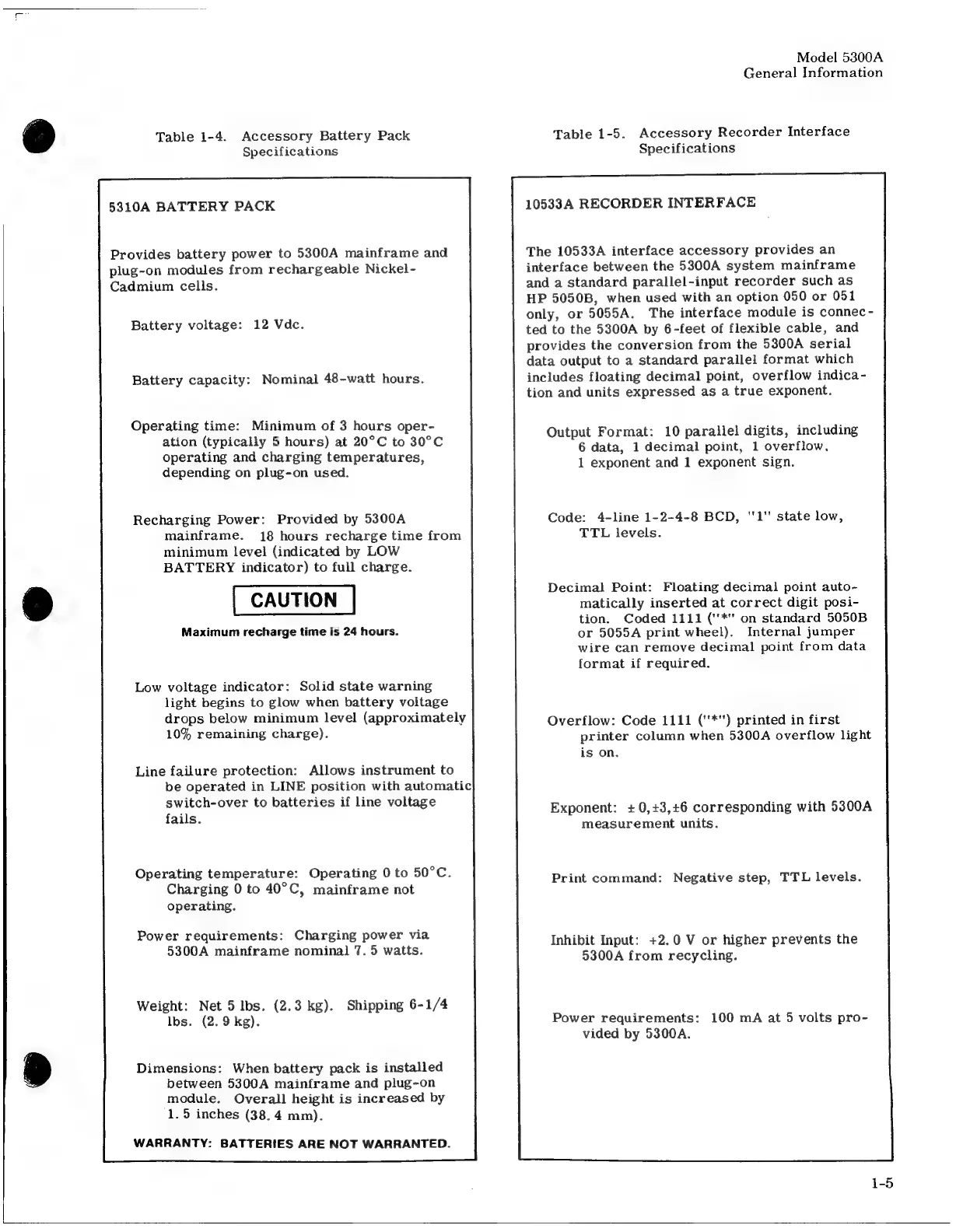

& Table 1-4. Accessory Battery Pack
Specifications
5310A BATTERY PACK
Provides battery power to 5300A mainframe and
plug-on modules from rechargeable Nickel-
Cadmium cells.
Battery voltage: 12 Vdc.
Battery capacity: Nominal 48-watt hours.
Operating time: Minimum of 3 hours oper-
ation (typically 5 hours) at 20°C to 30°C
operating and charging temperatures,
depending on plug-on used.
Recharging Power: Provided by 5300A
mainframe. 18 hours recharge time from
minimum level (indicated by LOW
BATTERY indicator) to full charge.
®
Maximum recharge time is 24 hours.
Low voltage indicator: Solid state warning
light begins to glow when battery voltage
drops below minimum level (approximately
10% remaining charge).
Line failure protection: Allows instrument to
be operated in LINE position with automatic
switch-over to batteries if line voltage
fails.
Operating temperature: Operating 0 to 50°C.
Charging 0 to 40°C, mainframe not
operating.
Power requirements: Charging power via
5300A mainframe nominal 7.5 watts.
Weight: Net 5 lbs. (2.3 kg). Shipping 6-1/4
lbs. (2.9 kg).
® Dimensions: When battery pack is installed
8 between 5300A mainframe and plug-on
module. Overall height is increased by
1.5 inches (38.4 mm).
WARRANTY: BATTERIES ARE NOT WARRANTED.
Model 5300A
General Information
Table
1-5.
Accessory
Recorder
Interface
Specifications
10533A RECORDER INTERFACE
The 10533A interface accessory provides an
interface between the 5300A system mainframe
and a standard parallel-input recorder such as
HP 5050B, when used with an option 050 or 051
only, or 5055A. The interface module is connec-
ted to the 5300A by 6-feet of flexible cable, and
provides the conversion from the 5300A serial
data output to a standard parallel format which
includes floating decimal point, overflow indica-
tion and units expressed as a true exponent.
Output Format: 10 parallel digits, including
6 data, 1 decimal point, 1 overflow,
1 exponent and 1 exponent sign.
Code: 4-line 1-2-4-8 BCD, "1" state low,
TTL levels.
Decimal Point: Floating decimal point auto-
matically inserted at correct digit posi-
tion. Coded 1111 ("'*" on standard 5050B
or 5055A print wheel). Internal jumper
wire can remove decimal point from data
format if required.
Overflow: Code 1111 (''*"') printed in first
printer column when 5300A overflow light
is on.
Exponent: + 0,+3,+6 corresponding with 5300A
measurement units.
Print command: Negative step, TTL levels.
Inhibit Input: +2.0 V or higher prevents the
5300A from recycling.
Power requirements: 100 mA at 5 volts pro-
vided by 5300A.
