HP 5300A - Page 74

Model 5300A
Circuit Diagrams

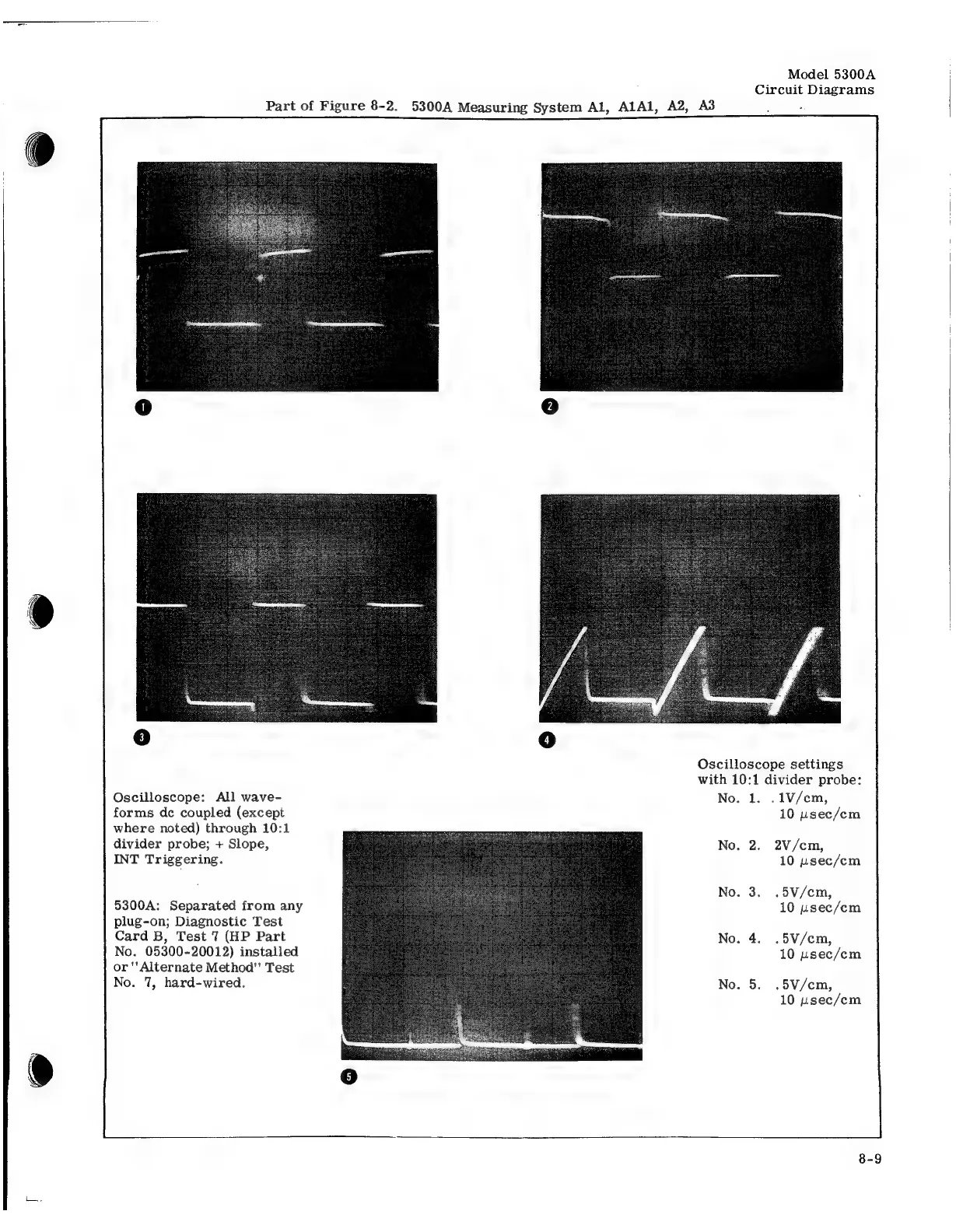

Part of Figure 8-2. 5300A Measuring System Al, A1Al, A2, A3
Oscilloscope settings
with 10:1 divider probe:
Oscilloscope: All wave- No. 1. .1V/cm,
forms de coupled (except 10 psec/em
where noted) through 10:1
divider probe; + Slope,
No. 2. 2V/cm,
INT Triggering.
10 usec/em
No. 3. .5V/cm,
5300A: Separated from any 10 usec/em
plug-on; Diagnostic Test
Card B, Test 7 (HP Part
No. 05300-20012) installed
or Alternate Method" Test
No. 7, hard-wired.
No. 4. .5V/em,
10 psec/em
No. 5. .5V/cm,
10 psec/cm
8-9
