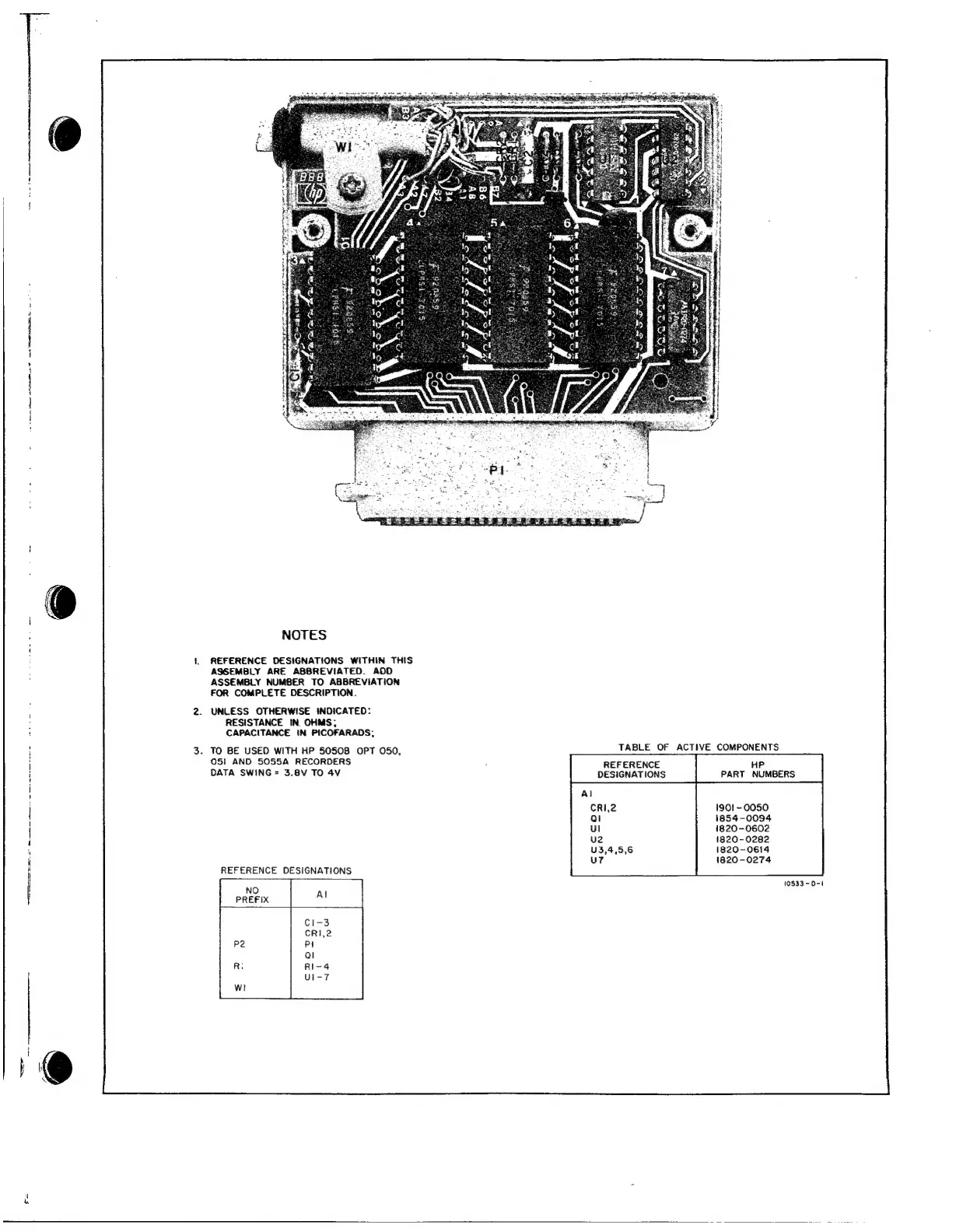

HP 5300A - Page 88

atari ly RSD Seer Tene ae
wre. ot ee ee
Pa
NOTES
REFERENCE DESIGNATIONS WITHIN THIS
ASSEMBLY ARE ASBREVIATED. ADD
ASSEMBLY NUMBER TO ABBREVIATION
FOR COMPLETE DESCRIPTION.
UNLESS OTHERWISE INDICATED:
RESISTANCE IN. OHMS,
CAPACITANCE iN PICOFARADS,
- TO BE USED WITH HP 50508 OPT O50,
OSi AND 50554 RECORDERS
DATA SWING = 3.8V TO 4V
REFERENCE DESIGNATIONS
DESIGNATIONS
TABLE OF ACTIVE COMPONENTS
PART NUMBERS
1901 - 0050
1854-0094
1820-0602
1820-0282
1820-0614
1820-0274
