39
Chassis views
5500-24G EI (2 slots)/5500-24G EI TAA (2 slots)/5500-24G
SI (2 slots)

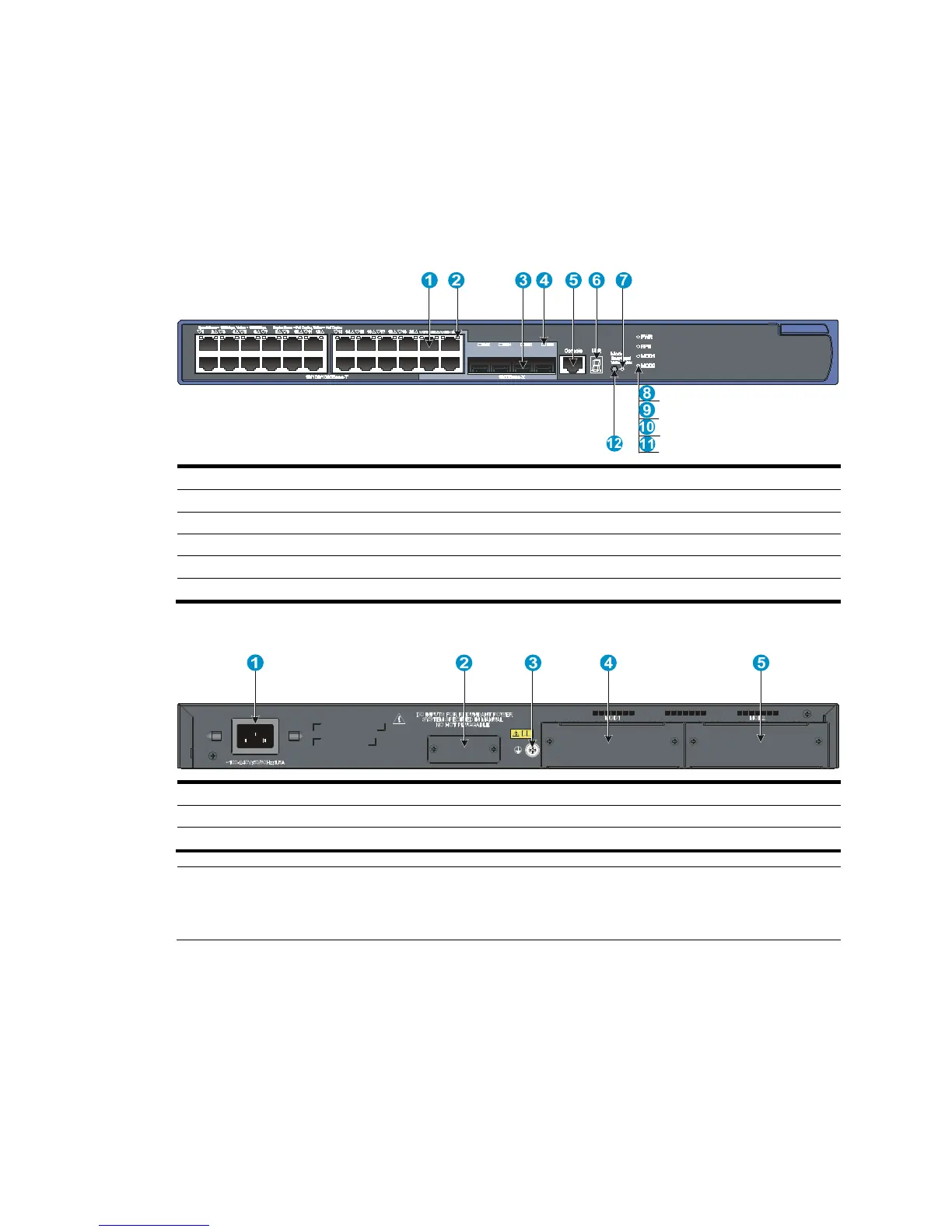

Figure 37 Front panel
(1) 10/100/1000Base-T auto-sensin
g
Ethernet port (2) 10/100/1000Base-T Ethernet port LED
(3) 1000Base-X SFP port (4)
1000Base-X SFP port LED
(5) Console port (6) Seven-segment LED (Unit)
(7) Port mode LED (Mode) (8)
System status LED (PWR)
(9) RPS status LED (RPS) (10) Interface card 1 status LED (MOD1)
(11) Interface card 2 status LED (MOD2) (12) Port LED mode switching button
Figure 38 Rear panel
(1) AC power input (2) RPS receptacle (shipped with a protective cover)
(3) Groundin
g
screw (4) Interface card slot 1
(MOD1)
(5) Interface card slot 2 (MOD2)
NOTE:
The 5500-24G EI (2 slots), 5500-24G EI TAA (2 slots), and 5500-24G SI (2 slots) switches come with the
expansion interface card slots covered by filler panels.
