42
5500-24G-PoE+ EI (2 slots)/5500-24G-PoE+ EI TAA (2
slots)/5500-24G-PoE+ SI (2 slots)

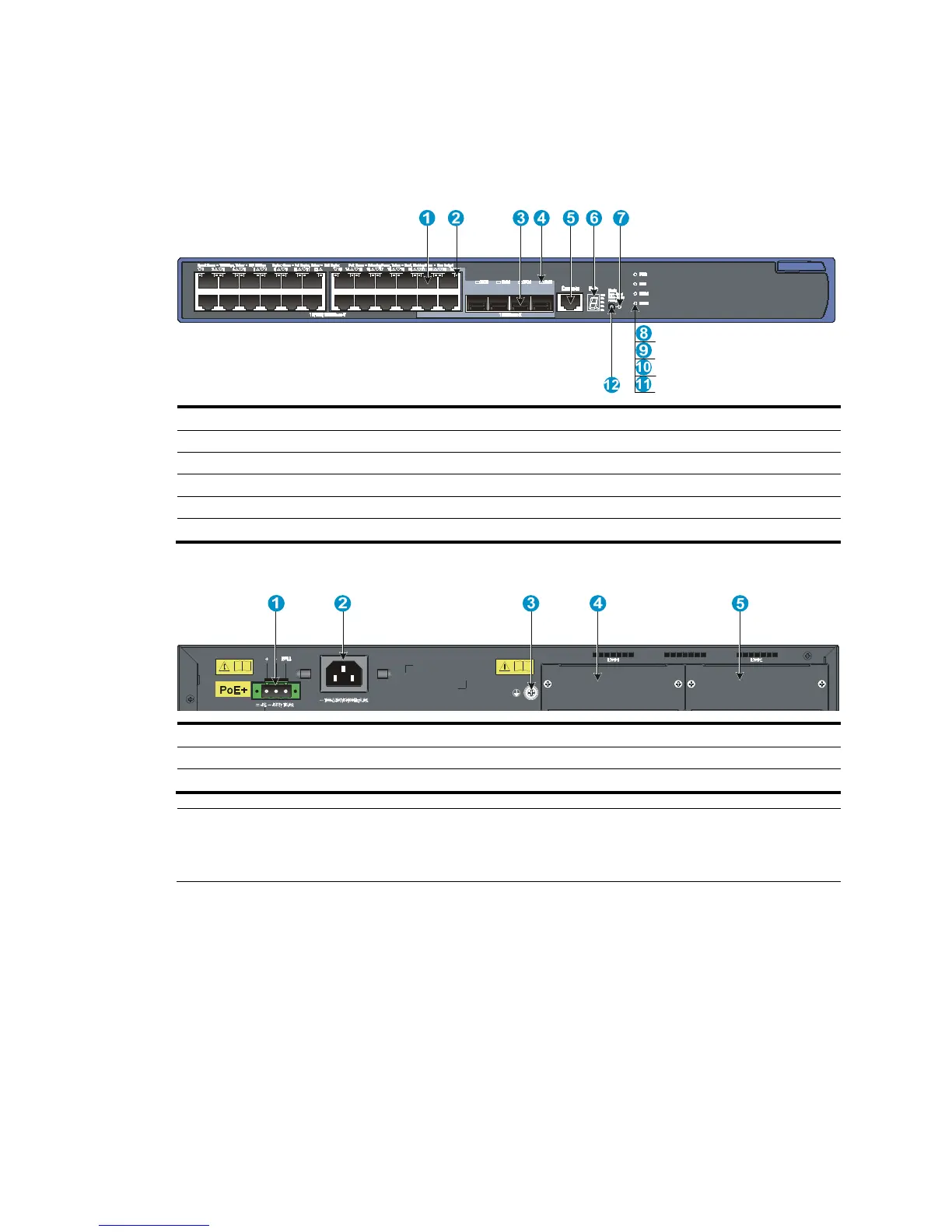

Figure 43 Front panel
(1) 10/100/1000Base-T auto-sensing Ethernet port (2) 10/100/1000Base-T Ethernet port LED
(3) 1000Base-X SFP port (4)
1000Base-X SFP port LED
(5) Console port (6)
Seven-se
g
ment LED (Unit)
(7) Port mode LED (Mode) (8) System status LED (PWR)
(9) RPS status LED (RPS) (10) Interface card 1 status LED (MOD1)
(11) Interface card 2 status LED (MOD2)
(12)
Port LED mode switchin
g
button
Figure 44 Rear panel
(1) RPS receptacle (2) AC power input
(3) Grounding screw (4) Interface card slot 1 (MOD1)
(5) Interface card slot 2 (MOD2)
NOTE:
The 5500-24G-PoE+ EI (2 slots), 5500-24G-PoE+ EI TAA (2 slots), and 5500-24G-PoE+ SI (2 slots)
switches come with the expansion interface card slots covered by filler panels.
