43
5500-48G-PoE+ EI (2 slots)/5500-48G-PoE+ EI TAA (2
slots)/5500-48G-PoE+ SI (2 slots)

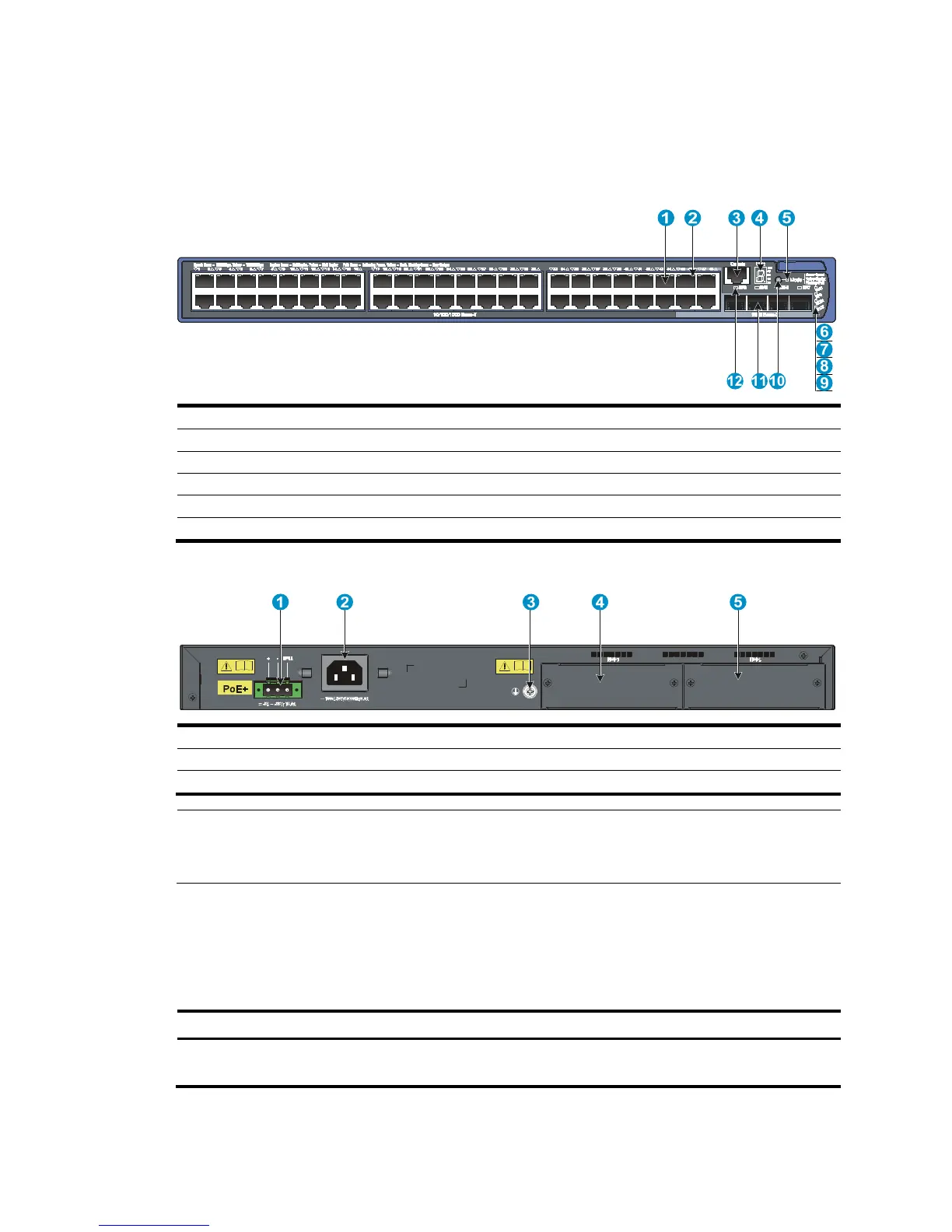

Figure 45 Front panel
(1) 10/100/1000Base-T auto-sensin
g
Ethernet port (2) 10/100/1000Base-T Ethernet port LED
(3) Console port (4)
Seven-se
g
ment LED (Unit)
(5) Port mode LED (Mode) (6) System status LED (PWR)
(7) RPS status LED (RPS) (8)
Interface card 1 status LED (MOD1)
(9) Interface card 2 status LED (MOD2) (10) Port
LED mode switchin
g
button
(11) 1000Base-X SFP port (12) 1000Base-X SFP port LED
Figure 46 Rear panel
(1) RPS receptacle (2) AC power input
(3) Groundin
g
screw (4) Interface card slot 1
(MOD1)
(5) Interface card slot 2 (MOD2)
NOTE:
The 5500-48G-PoE+ EI (2 slots), 5500-48G-PoE+ EI TAA (2 slots), and 5500-48G-PoE+ SI (2 slots)
switches come with the expansion interface card slots covered by filler panels.
Technical specifications
Chassis dimensions and weights
Chassis Dimensions Dimensions (H × W × D)
Wei
g
ht
5500-24G SI (2 slots)
43.6 × 440 × 300 mm
(1.72 × 17.32 × 11.81 in)
< 4.5 kg (9.92 lb)
