HP 5500 EI series - 5500-48 G EI (2 Slots);5500-48 G EI TAA (2 Slots);5500-48 G si (2 Slots)

40
5500-48G EI (2 slots)/5500-48G EI TAA (2 slots)/5500-48G
SI (2 slots)

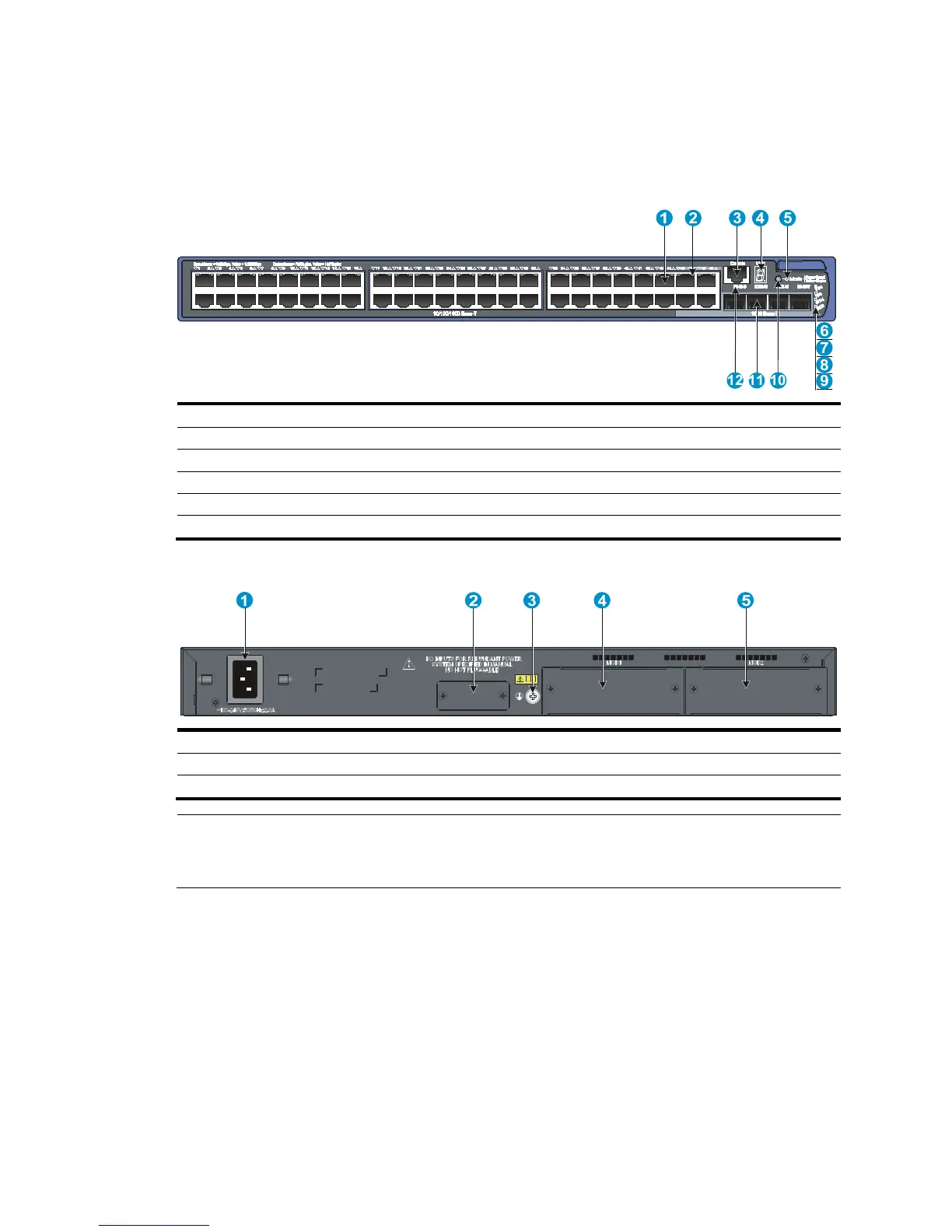

Figure 39 Front panel
(1) 10/100/1000Base-T auto-sensin
g
Ethernet port (2) 10/100/1000Base-T Ethernet port LED
(3) Console port (4) Seven-segment LED (Unit)
(5) Port mode LED (Mode) (6)
System status LED (PWR)
(7) RPS status LED (RPS) (8)
Interface card 1 status LED (MOD1)
(9) Interface card 2 status LED (MOD2) (10) Port LED mode switching button
(11) 1000Base-X SFP port (12)
1000Base-X SFP port LED
Figure 40 Rear panel
(1) AC power input (2) RPS receptacle (shipped with a protective
cover)
(3) Groundin
g
screw (4) Interface card slot 1
(MOD1)
(5) Interface card slot 2 (MOD2)
NOTE:
The 5500-48G EI (2 slots), 5500-48G EI TAA (2 slots), and 5500-48G SI (2 slots) switches come with the
expansion interface card slots covered by filler panels.
