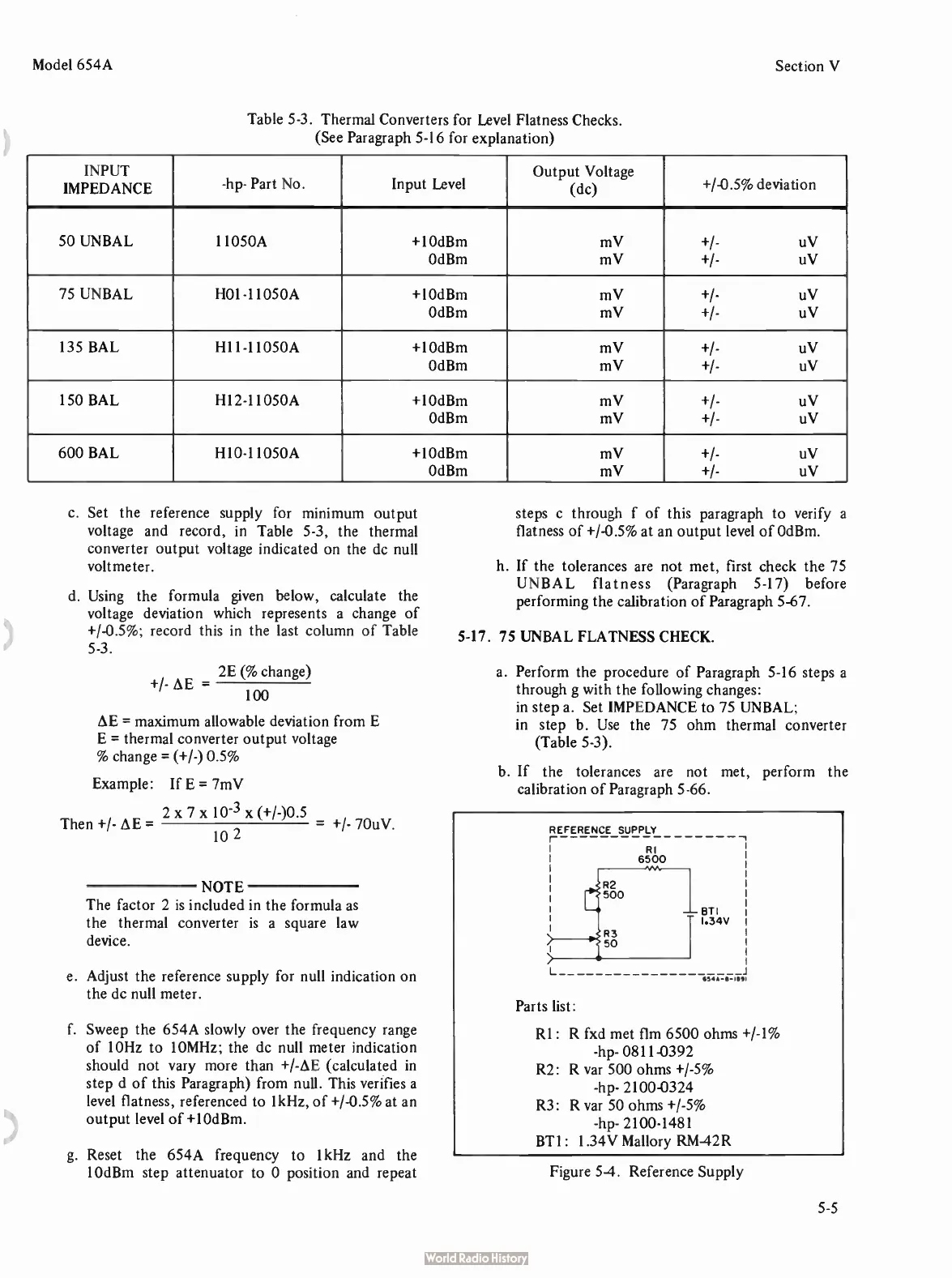

Model
654A
Section
V
Table
5-3.
Thermal
Converters
for
Level
Flatness
Checks.
(See
Paragraph
5-16
for
explanation)
INPUT
IMPEDANCE
-hp-
Part
No.
Input
Level
Output
Voltage
(dc)
+/-0.5%
deviation
50
UNBAL
11050A
+10dBm
mV
+/-
uV
OdBm
mV
+1-
uV
75
UNBAL
HOI -
11050A
+10dBm
mV
+/-
uV
OdBm
mV
+/-
uV
135
BAL
H 1
1-11050A
+10dBm
mV
+1-
uV
OdBm
mV
+/-
uV
150
BAL
H12-
11050A
+10dBm
mV
+/-
uV
OdBm
mV
+/-
uV
600
BAL
H10-
11050A
+10dBm
mV
+/-
uV
OdBm
mV
+/-
uV
c.
Set the
reference
supply
for
minimum
output
voltage
and
record,
in
Table
5-3,
the
thermal
converter
output
voltage
indicated
on
the
dc
null
voltmeter.
d.
Using
the
formula
given
below,
calculate
the
voltage
deviation
which
represents
a
change
of
+/-0.5%;
record
this
in
the
last
column
of
Table
5-3.
2E (%
change)
100
AE =
maximum
allowable
deviation
from
E
E =
thermal
converter
output
voltage
%
change = (+/-)
0.5%
Example:
If
E =
7mV
2 x 7 x
10
-3
x (+/-)
0.5
Then +/-
AE = +/-
70uV.
10
2
NOTE
The
factor
2
is
included
in
the
formula
as
the
thermal
converter
is
a
square
law
device.
e.
Adjust
the
reference
supply
for
null
indication
on
the
dc
null
meter.
f.
Sweep
the
654A
slowly
over
the
frequency
range
of
10Hz
to
10MHz;
the
dc
null
meter
indication
should
not
vary
more
than +/-
AE (
calculated
in
step
d
of
this
Paragraph)
from
null.
This
verifies
a
level
flatness,
referenced
to
lkHz,
of +/-
0.5%
at
an
output
level
of +
10dBm.
g.
Reset
the
654A
frequency
to
1
kHz
and
the
10dBm
step
attenuator
to
0
position
and
repeat
steps
c
through
f
of
this
paragraph
to
verify
a
flatness
of +/-
0.5%
at
an
output
level
of
OdBm.
h.
If
the
tolerances
are
not
met,
first
check
the
75
UNBAL
flatness (
Paragraph
5-17)
before
performing
the
calibration
of
Paragraph
5-67.
5-17.
75
UNBAL
FLATNESS
CHECK.
a.
Perform
the
procedure
of
Paragraph
5-16
steps
a
through
g
with
the
following
changes:
in
step
a.
Set
IMPEDANCE
to
75
UNBAL;
in
step
b.
Use
the
75
ohm
thermal
converter
(Table
5-3).
b. If
the
tolerances
are
not
met,
perform
the
calibration
of
Paragraph
5-66.
REFERENCE
SUPPLY
r-
RI
6500
BTI
I.34V
Parts
list:
R1:
R
fxd
met
flm
6500
ohms +/-
1%
-hp-
0811-0392
R2:
R
var
500
ohms +/-
5%
-hp-
2100-0324
R3:
R
var
50
ohms +/-
5%
-hp-
2100-1481
BT1:
1.34V
Mallory
RM-42R
Figure
5-4.
Reference
Supply
5-5
