HP 654A - Frequency Tuning Mechanism

UNCIRCLED
NUMBERS COORDINATE WITH
MP NUMBERS ON PAGE 6-10
5
3
4
6
8
12
6544-B-1867
ATTACHING HARDWARE
ITEM - hp- PART NO. DESCRIPTION
3030-0022
3030-0001
3030-0004
3050-0180
0510-0054
Screw:
Screw:
Screw:
Set, 6-32 x 1/8 in. long
Set, 8-32 x 3/16 in. long
Set, 8-32 x 1 in. long
Washer: . 270 ID x . 375 OD
Ring Retaining: . 25 OD SHAFT

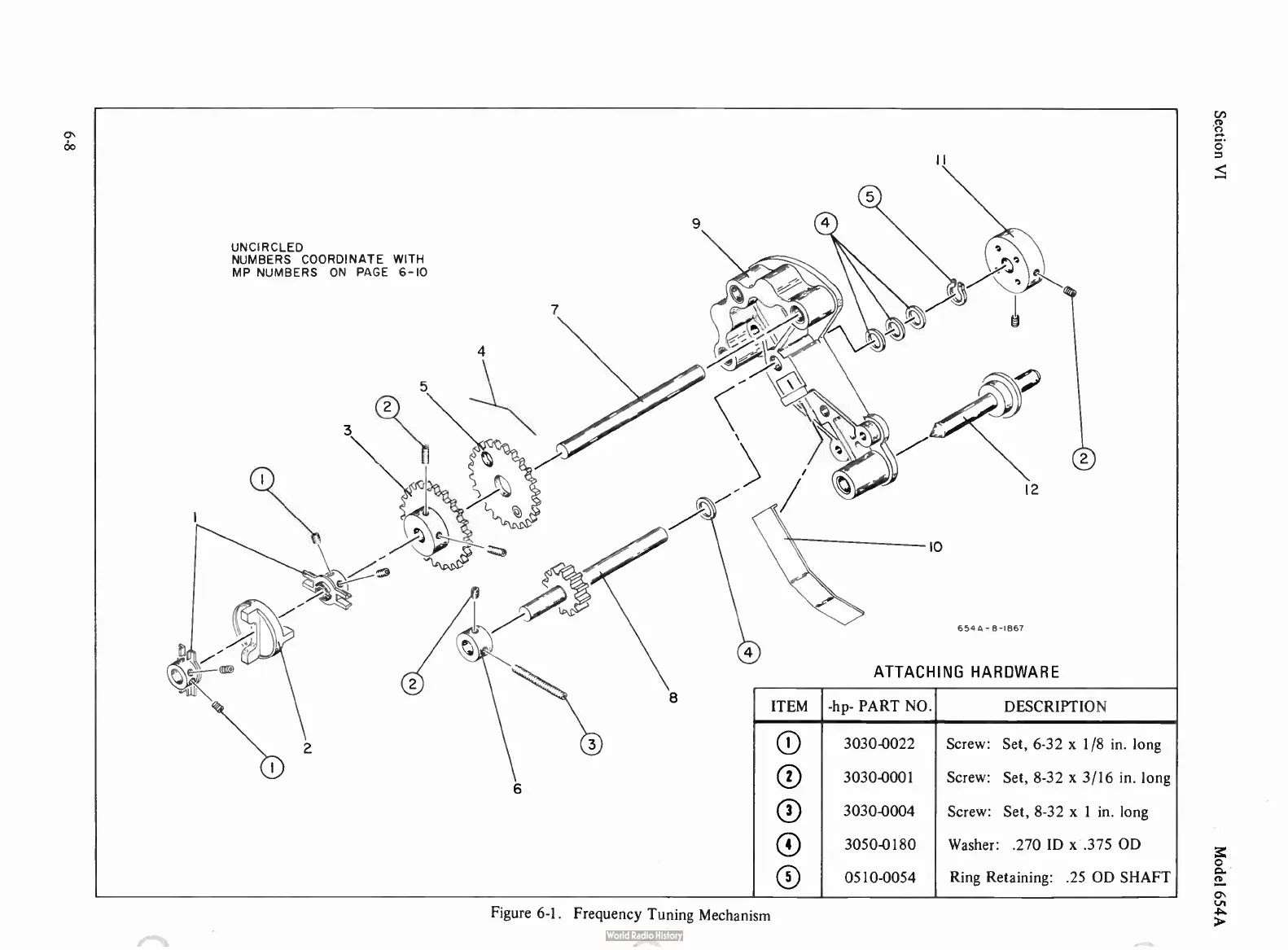

Figure 6-1. Frequency Tuning Mechanism
