HP 654A - Page 57

Model 654A
Section VI

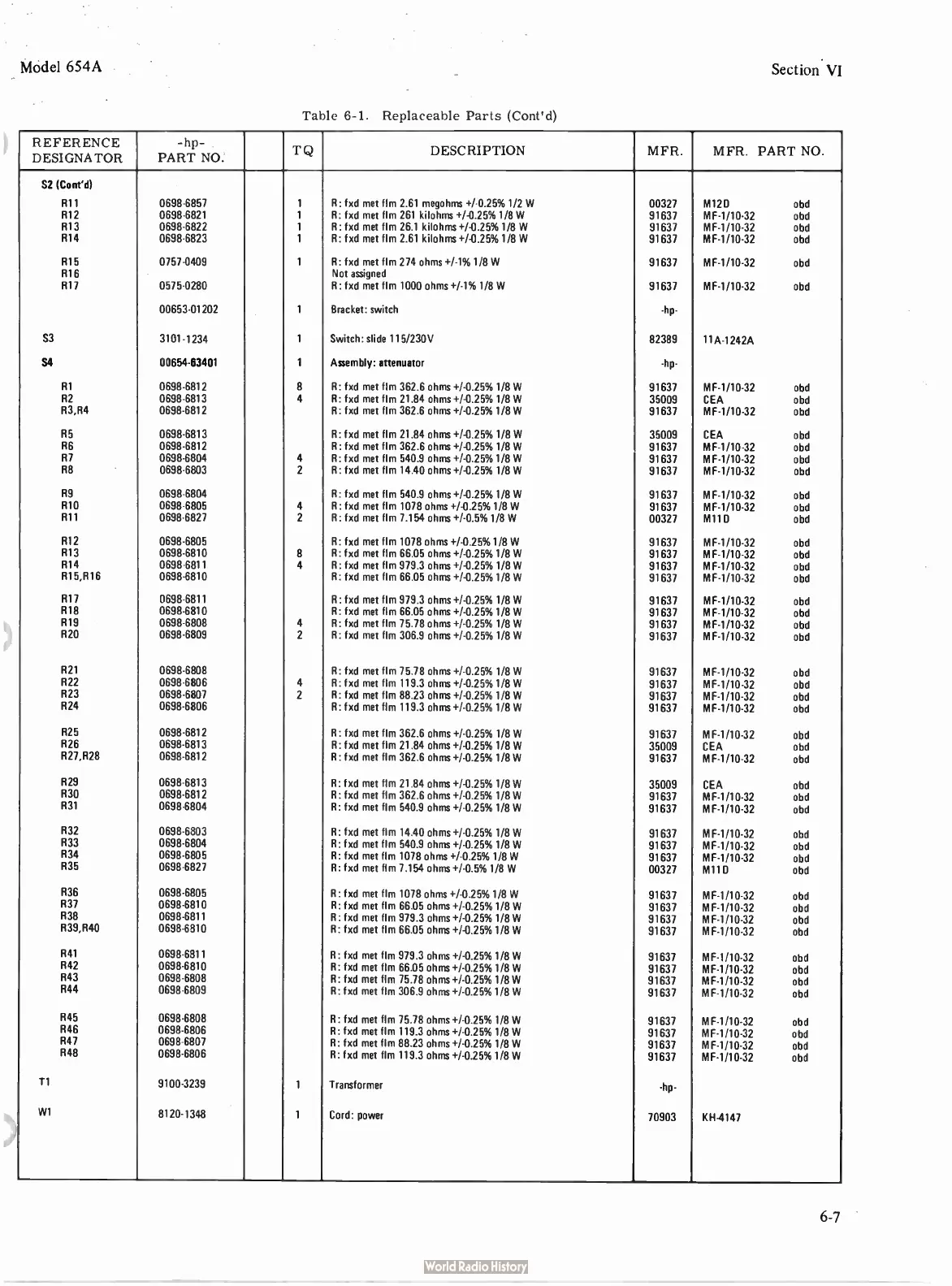

Tal le 6-1. Replaceable Parts ( Cont'd)
REFERENCE
DESIGNA TOR
PART -NO. hp-
T Q DESCRIPTION MFR. MFR. PART NO.
S2 ( Conn)
R11 0698-6857
1
R: fxd met flm 2.61 megohms +/- 0.25% 1/2 W 00327
M1213
obd
R12 0698-6821 1 R: fxd met flm 261 kilohms +/- 0.25% 1/8 W
91637 MF- 1/10-32
obd
R13
0698-6822
1
R: fxd met flm 26.1 kilohms +/- 0.25% 1/8 W
91637
MF- 1/10-32 obd
R14
0698-6823 1 R: fxd met flm 2.61 kilohms +/- 0.25% 1/8 W
91637 MF- 1/10-32
obd
R15 0757-0409 1
R: fxd met flm 274 ohms +/- 1% 1/8 W
91637 MF- 1/10-32
obd
R16 Not assigned
All
0575-0280 R: fxd met flm 1000 ohms +/- 1% 1/8 W
91637 MF- 1/10-32
obd
00653-01202 1 Bracket: switch
-hp-
S3
3101-1234
1 Switch: slide 115/230V
82389
11A- 1242A
sa
00654-63401
1
Assembly: attenuator
-hp-
RI 0698-6812 8 R: fxd met flm 362.6 ohms +/- 0.25% 1/8 W
91637
MF- 1/10-32 obd
R2 0698-6813 4 R: fxd met flm 21.84 ohms +/- 0.25% 1/8 W
35009 CEA
obd
R3,R4
0698-6812 R: fxd met flm 362.6 ohms +/- 0.25% 1/8 W
91637
MF- 1/10-32 obd
R5
0698-6813 R: fxd met flm 21.84 ohms +/- 0.25% 1/8 W
35009 CEA
obd
R6
0698-6812
R: fxd met flm 362.6 ohms +/- 0.25% 1/8 W
91637 MF- 1/10-32
obd
R7
0698-6804 4
R: fxd met flm 540.9 ohms +/- 0.25% 1/8 W
91637
MF- 1/10-32 obd
R8
0698-6803 2
R: fxd met flm 14.40 ohms +/- 0.25% 1/8 W
91637
MF- 1/10-32 obd
R9 0698-6804 R: fxd met flm 540.9 ohms +/- 0.25% 1/8 W
91637
MF- 1/10-32 obd
R10
0698-6805 4 R: fxd met flm 1078 ohms + 1-0.25% 1/8 W
91637 MF- 1/10-32
obd
R11
0698-6827 2 R: fxd met flm 7.154 ohms +/- 0.5% 1/8 W
00327 M11D
obd
R12
0698-6805
R: fxd met flm 1078 ohms +/- 0.25% 1/8 W
91637 MF- 1/10-32
obd
R13
0698-6810 8 R: fxd met flm 66.05 ohms +/- 0.25% 1/8 W
91637
MF- 1/10-32 obd
R14 0698-6811 4
R: fxd met flm 979.3 ohms +/- 0.25% 1/8 W
91637
MF- 1/10-32 obd
R15,R16
0698-6810 R: fxd met flm 66.05 ohms +/- 0.25% 1/8 W
91637 ME- 1/10-32
obd
All
0698-6811
R: fxd met flm 979.3 ohms +/- 0.25% 1/8 W
91637
MF-
1/10-32
obd
R18
0698-6810 R: fxd met flm 66.05 ohms +/- 0.25% 1/8 W
91637 MF- 1/10-32
obd
R19
0698-6808 4
R: fxd met flm 75.78 ohms +/- 0.25% 1/8 W
91637 MF- 1/10-32
obd
R20
0698-6809 2
R: fxd met flm 306.9 ohms +/- 0.25% 1/8 W
91637 MF- 1/10-32
obd
R21
0698-6808
R: fxd met flm 75.78 ohms +/- 0.25% 1/8 W
91637
MF- 1/10-32
obd
R22
0698-6806 4
R. fxd met flm 119.3 ohms +/- 0.25% 1/8 W
91637 MF- 1/10-32
obd
R23
0698-6807 2
R: fxd met flm 88.23 ohms +/- 0.25% 1/8 W
91637
MF- 1/10-32
obd
R24
0698-6806
R: fxd met flm 119.3 ohms +/- 0.25% 1/8 W
91637
MF- 1/10-32
obd
R25
0698-6812
R: fxd met flm 362.6 ohms +/- 0.25% 1/8 W
91637 MF- 1/10-32
obd
R26
0698-6813
R: fxd met flm 21.84 ohms +/- 0.25% 1/8 W
35009 CEA
obd
R27,R28
0698-6812
R: fxd met flm 362.6 ohms +/- 0.25% 1/8 W
91637
MF- 1/10-32
obd
R29
0698-6813
R: fxd met flm 21.84 ohms +/- 0.25% 1/8 W
35009
CEA
obd
R30
0698-6812
R: fxd met flm 362.6 ohms +/- 0.25% 1/8 W
91637
MF- 1/10-32
obd
R31
0698-6804
R: fxd met flm 540.9 ohms +/- 0.25% 1/8 W
91637
ME- 1/10-32 obd
R32
0698-6803
R: fxd met flm 14.40 ohms +/- 0.25% 1/8 W
91637 MF- 1/10-32
obd
R33
0698-6804
R: fxd met flm 540.9 ohms +/- 0.25% 1/8 W
91637
MF- 1/10-32
obd
R34
0698-6805
R: fxd met flm 1078 ohms +/- 0.25% 1/8 W
91637
MF- 1/10-32
obd
R35
0698-6827
R: fxd met flm 7.154 ohms +/- 0.5% 1/8 W
00327 M110
obd
R36
0698-6805
R: fxd met flm 1078 ohms +/- 0.25% 1/8 W
91637 MF- 1/10-32
obd
R37
0698-6810
R: fxd met flm 66.05 ohms +/- 0.25% 1/8 W
91637
MF- 1/10-32
obd
R38
0698-6811
R: fxd met flm 979.3 ohms +/- 0.25% 1/8 W
91637
MF- 1/10-32 obd
R39,R40
0698-6810
R: fxd met flm 66.05 ohms +/- 0.25% 1/8 W
91637 MF- 1/10-32
obd
R41
0698-6311
R: fxd met flm 979.3 ohms +/- 0.25% 1/8 W
91637
MF- 1/10-32
obd
R42
0698-6810
R: fxd met flm 66.05 ohms +/- 0.25% 1/8 W
91637
MF- 1/10-32
obd
R43
0698-6808
R: fxd met flm 75.78 ohms +/- 0.25% 1/8 W
91637
MF- 1/10-32
obd
R44
0698-6809
R: fxd met flm 306.9 ohms +/- 0.25% 1/8 W
91637
ME- 1/10-32
obd
R45
0698-6808
R: fxd met flm 75.78 ohms +/- 0.25% 1/8 W
91637
MF- 1/10-32
obd
R46
0698-6806
R: fxd met flm 119.3 ohms +/- 0.25% 1/8 W
91637
MF- 1/10-32
obd
R47
0698-6807
R: fxd met flm 88.23 ohms +/- 0.25% 1/8 W
91637
MF- 1/10-32
obd
R48
0698-6806
R: fxd met flm 119.3 ohms +/- 0.25% 1/8 W
91637
MF- 1/10-32
obd
11
9100-3239
1
Transformer
-hp-
W1
8120-1348
1
Cord: power
70903
KH-4147
6-7
