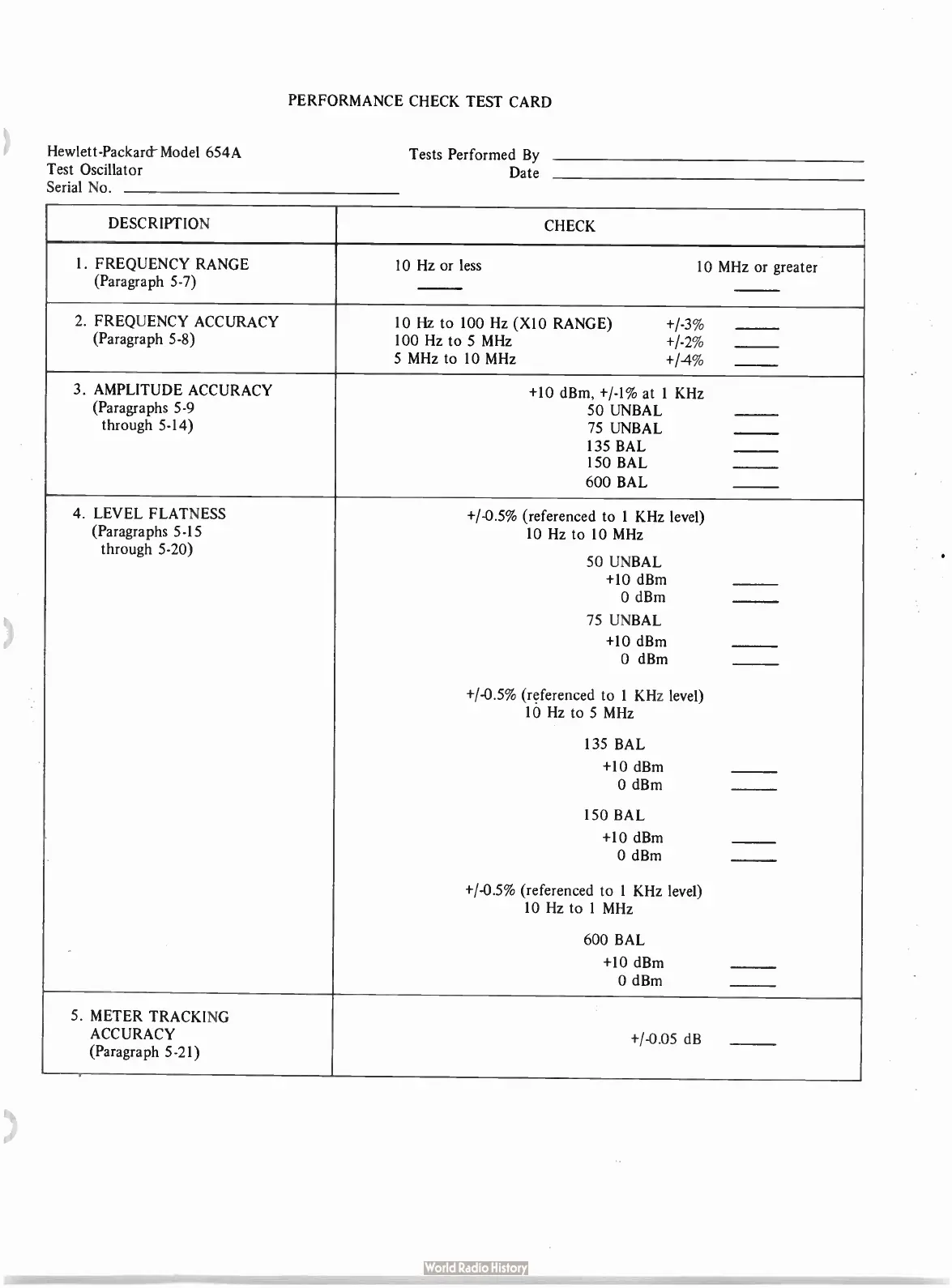

PERFORMANCE CHECK TEST CARD
Hewlett- Packard - Model 654A
Test Oscillator
Serial No
Tests Performed By
Date
DESCRIPTION
CHECK
1. FREQUENCY RANGE
(Paragraph 5-7)
10 Hz or less 10 MHz or greater
2. FREQUENCY ACCURACY
(Paragraph 5-8)
10 Hz to 100 Hz ( X10 RANGE) +/- 3%
100 Hz to 5 MHz +/- 2%
5 MHz to 10 MHz + 1-4%
3. AMPLITUDE ACCURACY
(Paragraphs 5-9
through 5-14)
+10 dBm, +/- 1% at 1 KHz
50 UNBAL
75 UNBAL
135 BAL
150 BAL
600 BAL
4. LEVEL FLATNESS
(Paragraphs 5-15
through 5-20)
_
+/-0.5% ( referenced to 1 KHz level)
10 Hz to 10 MHz
50 UNBAL
+10 dBm
0 dBm
75 UNBAL
+10 dBm
0 dBm
+1-0.5% ( referenced to 1 KHz level)
16 Hz to 5 MHz
135 BAL
+10 dBm
0 dBm
150 BAL
+10 dBm
0 dBm
+1-0.5% ( referenced to 1 KHz level)
10 Hz to 1 MHz
600 BAL
+10 dBm
0 dBm
5. METER TRACKING
ACCURACY
(Paragraph 5-21)
+/-0.05 dB
