HP 654A - Page 56

Section VI
. Model 654A

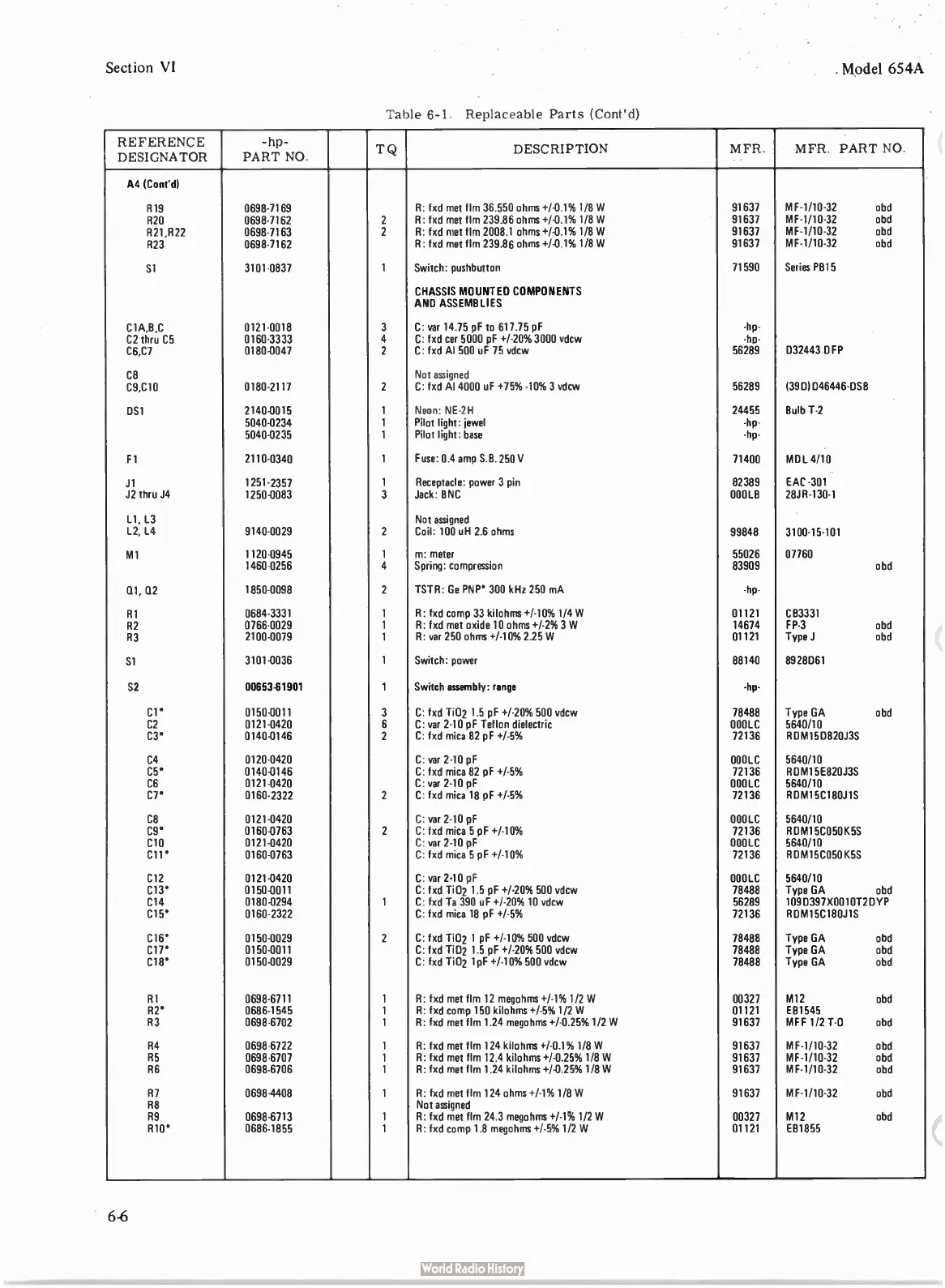

Table 6-1. Replaceable Parts ( Cont'd)
REFERENCE
DESIGNATOR
PART -NO. hp-
T Q DESCRIPTION MFR. MFR. PART NO.
A4 ( Cont'd)
R19 0698-7169
R: fxd met flm 36.550 ohms + 1-0.1%1/8 W 91637
MF - 1/10-32 obd
R20 0698-7162
2 R: fxd met flm 239.86 ohms +/- 0.1% 1/8 W
91637 MF - 1/10-32 obd
R21,R22
0698-7163
2 R: fxd met flm 2008.1 ohms +/- 0.1% 1/8 W
91637 MF - 1/10-32 obd
R23 0698-7162
R: fxd met flm 239.86 ohms +/- 0.1% 1/8 W
91637 MF - 1/10-32 obd
SI 3101-0837
1 Switch: pushbutton
71590 Series PB15
CHASSIS MOUNTED COMPONENTS
AND ASSEMBLIES
CIA,B,C 0121-0018
3
C: var 14.75 pF to 617.75 pF -hp-
C2 thru C5
0160-3333
4 C: fxd cer 5000 pF +/- 20% 3000 vdcw -hp-
C6,C7
0180-0047
2 C: fxd Al 500 uF 75 vdcw 56289
032443 DFP
C8
Not assigned
C9,C10
0180-2117 2
C: fxd Al 4000 uF + 75% - 10% 3 vdcw 56289 (390)046446-0SB
OS1
2140-0015
1 Neon: NE- 2H 24455 Bulb T-2
5040-0234
1 Pilot light: jewel -hp-
5040-0235
1 Pilot light: base
-hp-
Fl 2110-0340
1
Fuse: 0.4 amp S.B.250 V
71400
MOL 4/10
J1
1251-2357
1 Receptacle: power 3 pin 82389 EAC - 301
J2 thru J4
1250-0083
3 Jack: BNC 000LB
28JR-130-1
Li, L3 Not assigned
L2, L4
9140-0029 2 Coil: 100 uH 2.6 ohms
99848 3100-15-101
M1
1120-0945
1 m: meter
55026 07760
1460-0256
4
Spring: compression 83909 obd
C11, Cl2
1850-0098
2 TSTR: Ge PNI" 300 kHz 250 mA -hp-
R1
0684-3331
1
R: fxd comp 33 kilohms +/- 10% 1/4 W 01121 CB3331
R2
0766-0029
1 R: fxd met oxide 10 ohms +/- 2% 3 W 14674 FP- 3 obd
R3
2100-0079 1 R: var 250 ohms +/- 10% 2.25 W 01121 Type J obd
Si
3101-0036
1 Switch: power
88140 8928061
S2 00653-61901
1 Switch assembly: range
-hp-
C1" 0150-0011 3 C: fxd TiO2 1.5 pF +/- 20% 500 vdcw 78488 Type GA obd
C2
0121-0420 6 C: var 2-10 pF Teflon dielectric
000LC 5640/10
Cr 0140-0146
2 C: fxd mica 82 pF +/- 5% 72136 ROM1513820J3S
C4
0120-0420 C: var 2-10 pF 000LC 5640/10
Cr
0140-0146 C: fxd mica 82 pF +/- 5% 72136 RDM15E820J3S
C6
0121-0420 C: var 2-10 pF
000LC
5640/10
C7*
0160-2322
2
C: fxd mica 18 pF +/- 5% 72136 ROM15C180J1S
C8 0121-0420
C: var 2-10 pF
000LC 5640/10
Cr
0160-0763 2 C: fxd mica 5 pF +/- 10%
72136 RDM15C050K5S
C10 0121-0420 C: var 2-10 pF
000LC
5640/10
C11"
0160-0763 C: fxd mica 5 pF +/- 10% 72136 ROM15C050K5S
C12 0121-0420
C: var 2-10 pF
000LC 5640/10
C13* 0150-0011 C: fxd TiO2 1.5 pF +/- 20% 500 vdcw 78488
Type
GA obd
C14 0180-0294 1 C: fxd Ta 390 uF +/- 20% 10 vdcw 56289 1090397X0010T2DYP
C15" 0160-2322
C: fxd mica 18 pF +/- 6%
72136 ROM15C180J1S
C16* 0150-0029
2 C: fxd TiO2 1 pF +/- 10% 500 vdcw
78488
Type GA obd
Cl?' 0150-0011 C: fxd TiO2 1.5 pF +/- 20% 500 vdcw
78488
Type GA obd
C18' 0150-0029 C: fxd TiO2 1pF +/- 10% 500 vdcw
78488
Type GA obd
RI 0698-6711
1
R: fxd met flm 12 megohms +/- 1% 1/2 W 00327 M12 obd
R2' 0686-1545 1 R: fxd comp 150 kilohms +/- 5% 1/2 W
01121 EB1545
R3
0698-6702 1 R: fxd met flm 1.24 megohms + 1-0.25%1/2 W 91637 MFF 1/2 T-0 obd
R4 0698-6722 1 R: fxd met flm 124 kilohms +/- 0.1% 1/8 W 91637 MF - 1/10-32 obd
85 0698-6707 1 R: fxd met flm 12.4 kilohms+/-0.25% 1/8 W 91637 MF - 1/10-32 obd
R6 0698-6706 1
R: fxd met flm 1.24 kilohms +/- 0.25% 1/8 W
91637 MF - 1/10-32 obd
R7 0698-4408
1 R: fxd met flm 124 ohms +/- 1% 1/8 W
91637 MF - 1/10-32 obd
R8 Not assigned
R9
0698-6713
1 R: fxd met flm 24.3 megohms +/- 1% 1/2 W
00327
M12 obd
R10"
0686-1855
1 R: fxd comp 1.8 megohms +/- 5% 1/2 W 01121 E81855
6-6
