Model 654A
Section VI

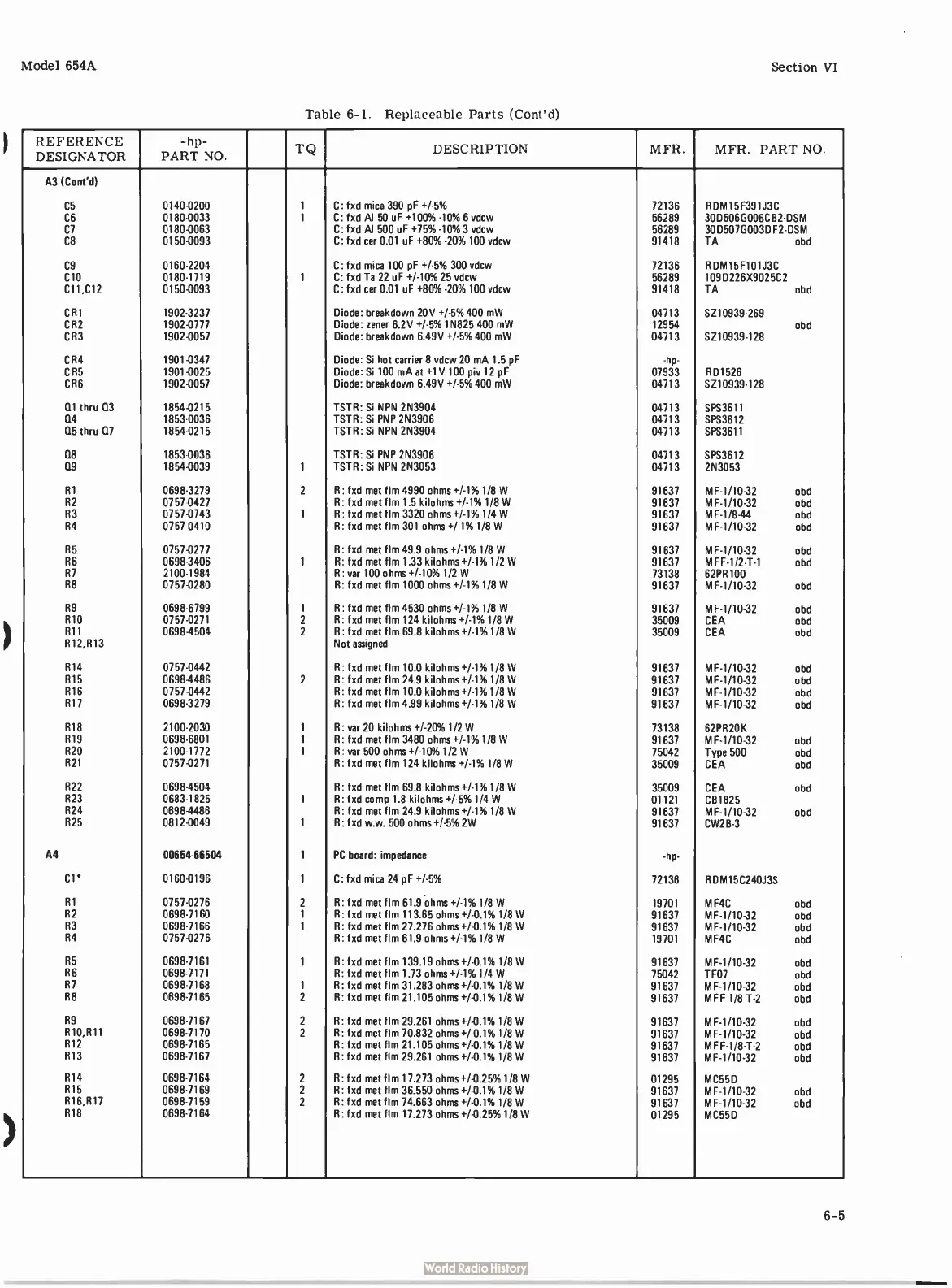

Table 6-1. Replaceable Parts ( Cont'd)
REFERENCE
DESIGNA TOR
PART -NO. hp-
T Q DESCRIPTION MFR. MFR. PART NO
A3 ( Coed)
C5
0140-0200
1 C: fxd mica 390 pF +/- 5%
72136 RDM15F391J3C
C6
01806033
1
C: fxd Al 50 uF + 100% - 10% 6 vdcw
56289 30D506G006C62-DSM
Cl 0180-0063
C: fxd Al 500 uF + 75% - 10% 3 vdcw
56289 30D507G003DF2-DSM
C8
0150-0093 C: fxd cer 0.01 uF + 80% - 20% 100 vdcw 91418 TA obd
C9
0160-2204
C: fxd mica 100 pF +/- 5% 300 vdcw
72136 RDM15F101J3C
C10
0180-1719 1 C: fxd Ta 22 uF +/- 10% 25 vdcw
56289 109D226X9025C2
C11,C12
0150-0093 C: fxd cer 0.01 uF + 80% - 20% 100 vdcw 91418
TA obd
CR1
1902-3237
Diode: breakdown 20V +/- 5% 400 mW
04713
SZ10939-269
CR2 1902-0777
Diode: zener 6.2V +/- 5% 1N825 400 mW
12954
obd
CR3 1902-0057 Diode: breakdown 6.49V +/- 5% 400 mW
04713 SZ10939-128
CR4
1901-0347
Diode: Si hot carrier 8 vdcw 20 mA 1.5 pF -hp-
CR5
1901-0025 Diode: Si 100 mA at + 1V 100 pin 12 pF
07933 R01526
CR6 1902-0057
Diode: breakdown 6.49V +/- 5% 400 mW
04713
SZ10939-128
Q1 thru Q3
1854-0215
TSTR: Si NPN 2N3904
04713 SPS3611
Q4 1853-0036
TSTR: Si PNP 2N3906
04713 SPS3612
05 thru Q7 1854-0215
TSTR: Si NPN 2N3904
04713 SPS3611
118
1853-0036
TSTR: Si PNP 2N3906
04713
SPS3612
0.9
1854-0039 1 TSTR: Si NPN 2N3053
04713
2N3053
R1
0698-3279 2 R: fxd met flm 4990 ohms + 1-1% 1/8 W
91637
MF- 1/10-32 obd
R2 07576427 R: fxd met flm 1.5 kilohms +/- 1% 1/8 W
91637 MF- 1/10-32 obd
R3 0757-0743 1 R: fxd met flm 3320 ohms + 1-1% 1/4 W
91637
MF- 1/8-44 obd
R4 0757-0410 R: fxd met flm 301 ohms + 1-1% 1/8 W
91637 MF- 1/10-32 obd
R5 0757-0277 R: fxd met flm 49.9 ohms +/- 1% 1/8 W
91637
MF- 1/10-32 obd
R6 0698-3406 1 R: fxd met flm 1.33 kilohms +/- 1% 1/2 W
91637 MFF-1/2-T-1 obd
R7 2100-1984 R: var 100 ohms +/- 10% 1/2 W
73138 62PR100
R8
0757-0280
R: fxd met flm 1000 ohms +/- 1% 1/8 W
91637 MF- 1/10-32 obd
R9 0698-6799 1 R: fxd met flm 4530 ohms +/- 1% 1/8 W
91637 MF- 1/10-32 obd
R10
0757-0271
2
R: fxd met flm 124 kilohms +/- 1% 1/8 W
35009 CEA obd
R11
0698-4504
2
R: fxd met flm 69.8 kilohms + 1-1% 1/8 W
35009 CEA obd
R12,R13
Not assigned
R14
0757-0442 R: fxd met flm 10.0 kilohms +/- 1% 1/8 W
91637
MF- 1/10-32 obd
R15
06984486 2 R: fxd met flm 24.9 kilohms + 1-1%1/8 W
91637 MF- 1/10-32 obd
R16 0757-0442 R: fxd met flm 10.0 kilohms +/- 1% 1/8 W
91637
MF- 1/10-32 obd
R17
0698-3279 R: fxd met flm 4.99 kilohms +/- 1% 1/8 W
91637
MF- 1/10-32 obd
R18
2100-2030 1 R: var 20 kilohms +/- 20% 1/2 W
73138 62PR2OK
R19
0698-6801 1 R: fxd met flm 3480 ohms +/- 1% 1/8 W
91637
MF- 1/10-32 obd
R20 2100-1772 1
R: var 500 ohms +/- 10% 1/2 W
75042 Type 500 obd
R21
0757-0271 R: fxd met flm 124 kilohms +/- 1% 1/8 W
35009 CEA obd
R22 0698-4504
R: fxd met flm 69.8 kilohms +/- 1% 1/8 W
35009 CEA obd
R23
0683-1825 1 R: fxd comp 1.8 kilohms +/- 5% 1/4 W
01121
CB1825
R24
0698-4486 R: fxd met flm 24.9 kilohms +/- 1% 1/8 W
91637 MF- 1/10-32 obd
R25 0812-0049 1
R: fxd w.w. 500 ohms +/- 5% 2W
91637 CW2B-3
A4
00654-66504
1
PC board: impedance
-hp-
Cl ` 0160-0196 1 C: fxd mica 24 pF +/- 5%
72136
RDM15C240J3S
R1
0757-0276 2
R: fxd met flm 61.9 ohms +/- 1% 1/8 W
19701 MF4C obd
R2
0698-7160
1
R: fxd met flm 113.65 ohms +/- 0.1% 1/8 W
91637 MF- 1/10-32 obd
R3
0698-7166 1
R: fxd met Hm 27.276 ohms +/- 0.1% 1/8 W
91637 MF- 1/10-32 obd
R4
0757-0276
R: fxd met flm 61.9 ohms + 1-1% 1/8 W
19701 MF4C obd
R5
0698-7161 1
R: fxd met flm 139.19 ohms +/- 0.1% 1/8 W
91637
MF- 1/10-32 obd
R6
0698-7171 R: fxd met flm 1.73 ohms + 1-1%1/4 W
75042
TF07 obd
R7
0698-7168 1 R: fxd met flm 31.283 ohms +/- 0.1% 1/8 W
91637 MF- 1/10-32 obd
R8
0698-7165 2
R: fxd met flm 21.105 ohms +/- 0.1% 1/8 W
91637 MFF 1/8 T-2 obd
R9
0698-7167
2
R: fxd met flm 29.261 ohms + 1-0.1% 1/8 W
91637 MF- 1/10-32 obd
R10,R11
0698-7170 2
R: fxd met Hm 70.832 ohms +/- 0.1% 1/8 W
91637 MF- 1/10-32 obd
R12
0698-7165
R: fxd met flm 21.105 ohms +/- 0.1% 1/8 W
91637 MFF-1/8-T-2 obd
R13
0698-7167
R: fxd met flm 29.261 ohms +/- 0.1% 1/8 W
91637 MF- 1/10-32 obd
R14
0698-7164 2
R: fxd met flm 17.273 ohms +/- 0.25% 1/8 W
01295
MC55D
R15
0698-7169
2
R: fxd met flm 36.550 ohms +/- 0.1% 1/8 W
91637
MF- 1/10-32 obd
R16,R17
0698-7159
2
R: fxd met flm 74.663 ohms +/- 0.1% 1/8 W
91637
MF- 1/10-32 obd
R18
0698-7164
R: fxd met flm 17.273 ohms +/- 0.25% 1/8 W
01295 MC55D
6-5
