Section VI
Model 654A

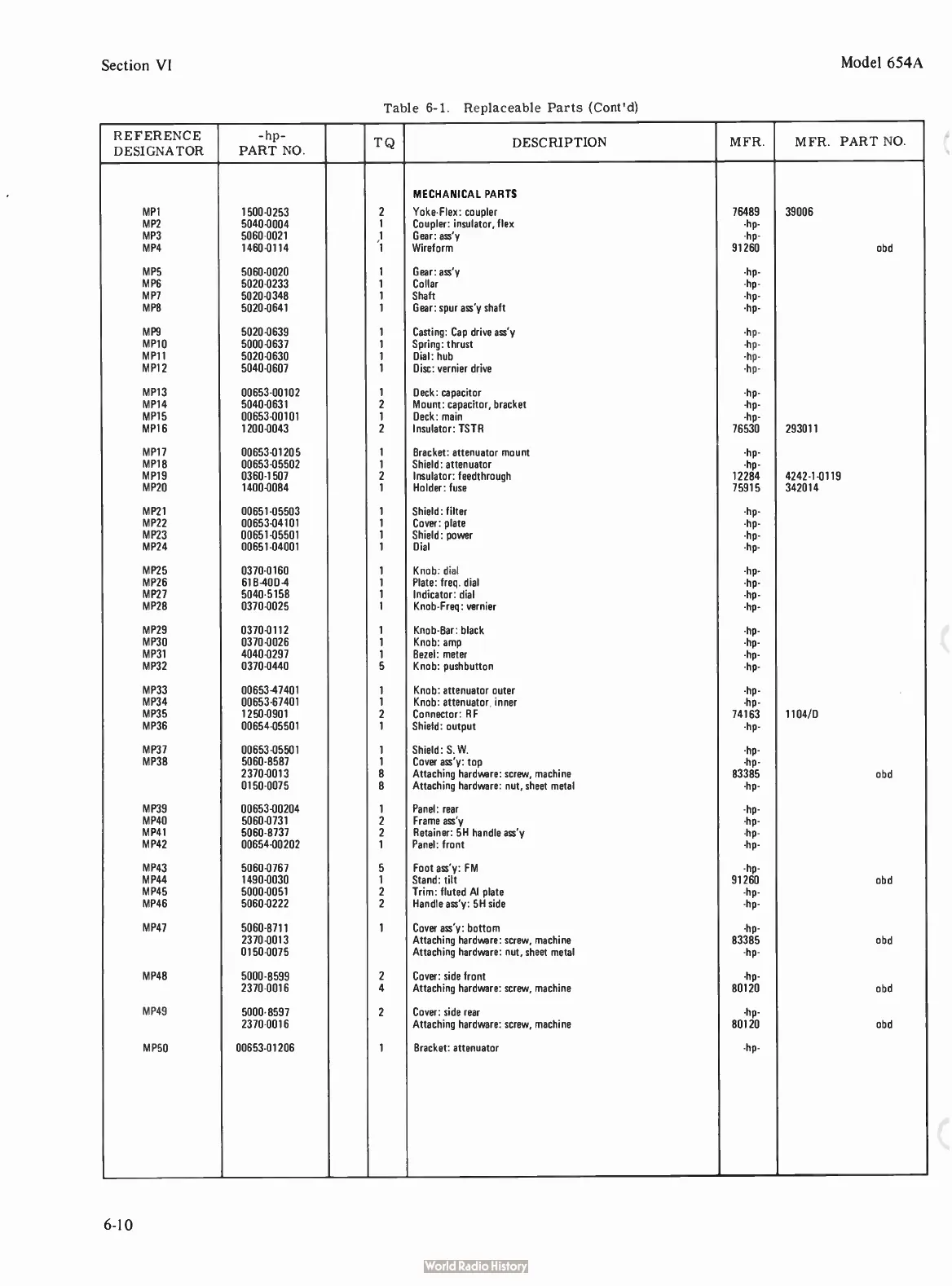

Table 6-1. Replaceable Parts ( Cont'd)
REFERENCE
DESIGNA TOR
PART -NO. hp-
T Q DESCRIPTION MFR. MFR. PART NO.
MECHANICAL PARTS
MP1
1500-0253
2 Yoke- Flex: coupler 76489 39006
MP2
5040-0004
1
Coupler: insulator, flex
-hp-
MP3 5060-0021
Gear: ass'y -hp-
MP4 1460-0114
,1
1 Wireform 91260 obd
MP5 5060-0020
1 Gear: ass'y -hp-
MP6
5020-0233
1
Collar
-hp-
MP7
5020-0348
1 Shaft
-hp-
MP8 5020-0641
1 Gear: spur ass'y shaft -hp-
MP9 5020-0639 1 Casting: Cap drive ass'y -hp-
MP10
5000-0637 1 Spring: thrust -hp-
MP11
5020-0630
1
Dial: hub -hp-
MP12
5040-0607 1 Disc: vernier drive -hp-
MP13
00653-00102
1
Deck: capacitor -hp-
MP14 5040-0631 2 Mount: capacitor, bracket
-hp-
MP15 00653-00101 1 Deck: main -hp-
MP16 1200-0043 2 Insulator: TSTR
76530 293011
MP17
00653-01205
1
Bracket: attenuator mount
-hp-
MP18 00653-05502 1 Shield: attenuator -hp-
MP19
0360-1507 2 Insulator: feedthrough
12284
4242-1-0119
MP20 1400-0084 1 Holder: fuse 75915 342014
MP21
00651-05503
1 Shield: filter -hp-
MP22
00653-04101
1
Cover: plate -hp-
MP23 00651-05501
1
Shield: power -hp-
MP24 00651-04001 1 Dial -hp-
MP25 0370-0160
1
Knob: dial -hp-
MP26 61B- 40D-4 1 Plate: freq. dial -hp-
MP27 5040-5158 1
Indicator: dial -hp-
MP28
0370-0025 1 Knob-Freq: vernier
-hp-
MP29 0370-0112 1 Knob- Bar: black
-hp-
MP30
0370-0026 1 Knob: amp -hp-
MP31 4040-0297
1 Bezel: meter -hp-
MP32 0370-0440 5 Knob: pushbutton
-hp-
MP33
00653-47401
1
Knob: attenuator outer -hp-
MP34 00653-67401 1
Knob: attenuator, inner -hp-
MP35 1250-0901 2 Connector: RF 74163 1104/0
MP36
00654-05501
1
Shield: output -hp-
MP37 00653-05501 1 Shield: S. W.
-hp-
MP38
5060-8587
1 Cover ass'y: top
-hp-
2370-0013 8 Attaching hardware: screw, machine
83385 obd
0150-0075
8
Attaching hardware: nut, sheet metal -hp-
MP39
00653-00204 1 Panel: rear
-hp-
MP40
5060-0731
2
Frame ass'y -hp-
MP41
5060-8737 2 Retainer: 5H handle ass'y -hp-
MP42
00654-00202 1 Panel: front -hp-
MP43
5060-0767 5 Foot ass'y: FM -hp-
MP44
1490-0030 1 Stand: tilt
91260 obd
MP45
5000-0051 2 Trim: fluted Al plate -hp-
MP46
5060-0222 2 Handle ass'y: 5H side -hp-
MP47
5060-8711
1
Cover ass'y: bottom -hp-
2370-0013 Attaching hardware: screw, machine
83385
obd
0150-0075 Attaching hardware: nut, sheet metal -hp-
MP48
5000-8599
2
Cover: side front
-hp-
2370-0016 4 Attaching hardware: screw, machine
80120 obd
MP49
5000-8597
2 Cover: side rear -hp.
2370-0016 Attaching hardware: screw, machine 80120 obd
MP50 00653-01206 1 Bracket: attenuator
-hp-
6-10
