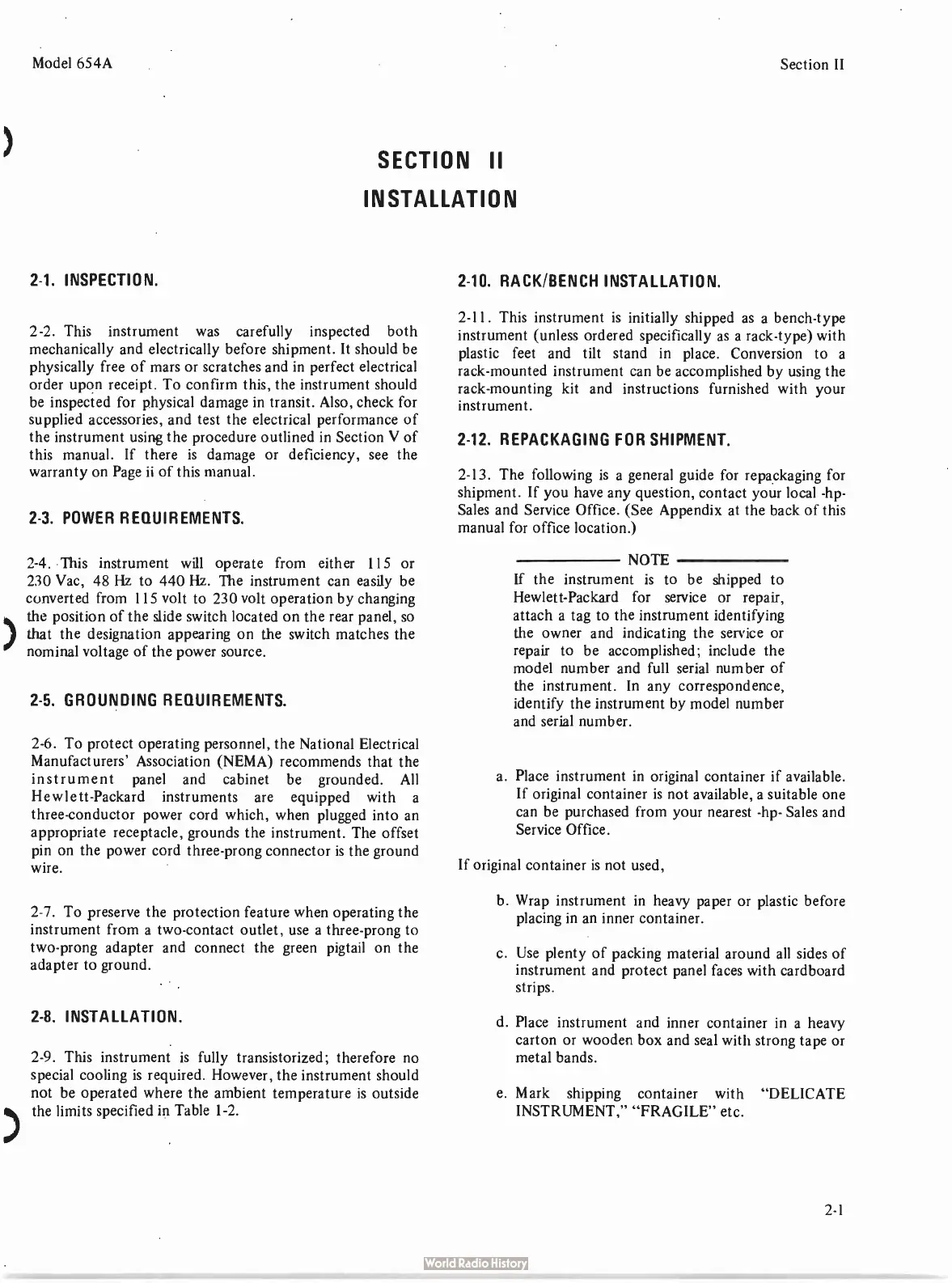

Model 654A
Section II
SECTION II
INSTALLATION
2-1. INSPECTION.
2-2. This instrument was carefully inspected both
mechanically and electrically before shipment. It should be
physically free of mars or scratches and in perfect electrical
order upon receipt. To confirm this, the instrument should
be inspected for physical damage in transit. Also, check for
supplied accessories, and test the electrical performance of
the instrument using the procedure outlined in Section V of
this manual. If there is damage or deficiency, see the
warranty on Page ii of this manual.
2-3. POWER REQUIREMENTS.
2-4. This instrument will operate from either 115 or
230 Vac, 48 Hz to 440 Hz. The instrument can easily be
converted from 115 volt to 230 volt operation by changing
the position of the slide switch located on the rear panel, so
that the designation appearing on the switch matches the
nominal voltage of the power source.
2-5. GROUNDING REQUIREMENTS.
2-6. To protect operating personnel, the National Electrical
Manufacturers' Association ( NEMA) recommends that the
instrument panel and cabinet be grounded. All
Hewlett-Packard instruments are equipped with a
three- conductor power cord which, when plugged into an
appropriate receptacle, grounds the instrument. The offset
pin on the power cord three- prong connector is the ground
wire.
2-7. To preserve the protection feature when operating the
instrument from a two- contact outlet, use a three- prong to
two- prong adapter and connect the green pigtail on the
adapter to ground.
2-8. INSTALLATION.
2-9. This instrument is fully transistorized; therefore no
special cooling is required. However, the instrument should
not be operated where the ambient temperature is outside
the limits specified in Table 1-2.
2-10. RACK/BENCH INSTALLATION.
2-11. This instrument is initially shipped as a bench- type
instrument ( unless ordered specifically as a rack- type) with
plastic feet and tilt stand in place. Conversion to a
rack- mounted instrument can be accomplished by using the
rack- mounting kit and instructions furnished with your
instrument.
2-12. REPACKAGING FOR SHIPMENT.
2-13. The following is a general guide for repackaging for
shipment. If you have any question, contact your local - hp-
Sales and Service Office. ( See Appendix at the back of this
manual for office location.)
NOTE
If the instrument is to be shipped to
Hewlett-Packard for service or repair,
attach a tag to the instrument identifying
the owner and indicating the service or
repair to be accomplished; include the
model number and full serial number of
the instrument. In any correspondence,
identify the instrument by model number
and serial number.
a. Place instrument in original container if available.
If original container is not available, a suitable one
can be purchased from your nearest - hp- Sales and
Service Office.
If original container is not used,
b. Wrap instrument in heavy paper or plastic before
placing in an inner container.
c. Use plenty of packing material around all sides of
instrument and protect panel faces with cardboard
strips.
d. Place instrument and inner container in a heavy
carton or wooden box and seal with strong tape or
metal bands.
e. M ark shipping container with " DELICATE
INSTRUMENT," " FRAGILE" etc.
, M•••••a-
2-1
