Speaker
1. Prepare the computer for disassembly (Preparation for disassembly on page 19).
2. Remove the VESA plate cover (
VESA plate cover on page 23).
3. Remove the display head from the stand (
Removing the display head from the stand
on page 52).
4. Remove the display head back panel (
Display head back panel on page 53).

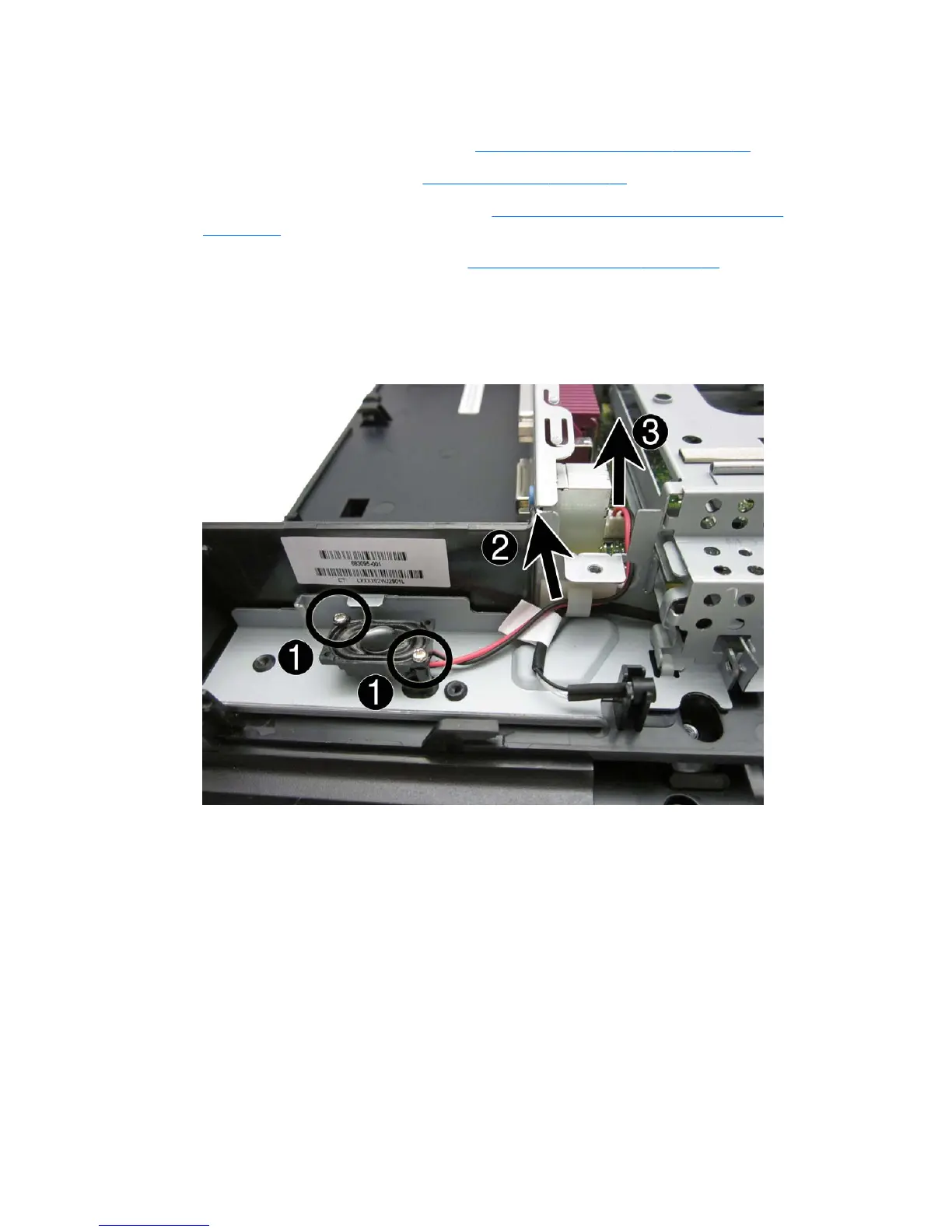

5. Remove the two Phillips screws (1) that secure the speaker to the computer.
6. Remove the cable from the clip (2).
7. Disconnect the cable from the system board connector labeled SPKR (3).
8. Remove the speaker from the computer.
To install the speaker, reverse the removal procedures.
