HP 7100 - Page 70

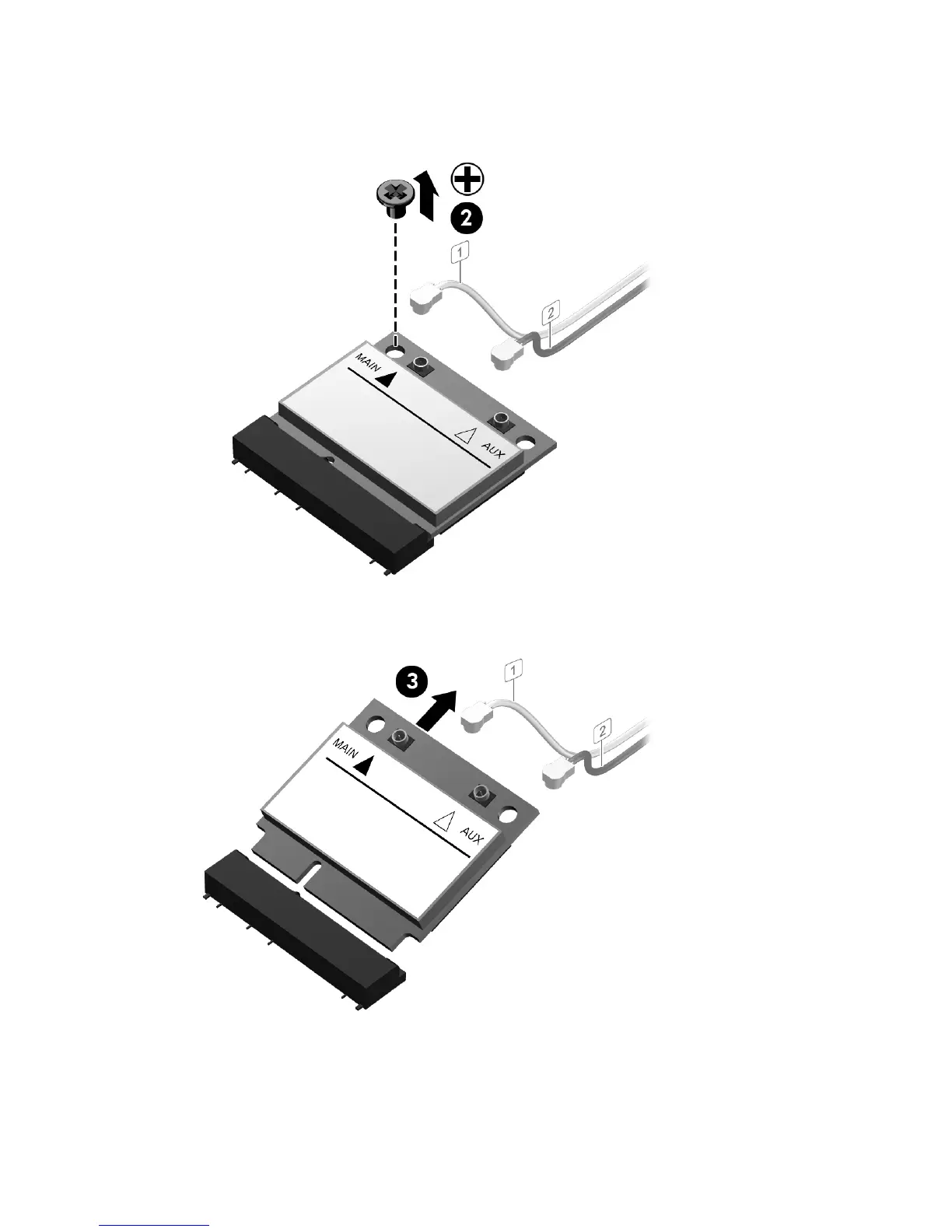

6. Remove the Phillips screw (2) that secures the module to the system board.
7. Rotate the top of the module upward, and then pull it away from the slot (3).
To install the WLAN module, reverse the removal procedure.
62 Chapter 4 Removal and replacement procedures
