HP 83522A User Manual

Replaceable Parts
Model 83522A

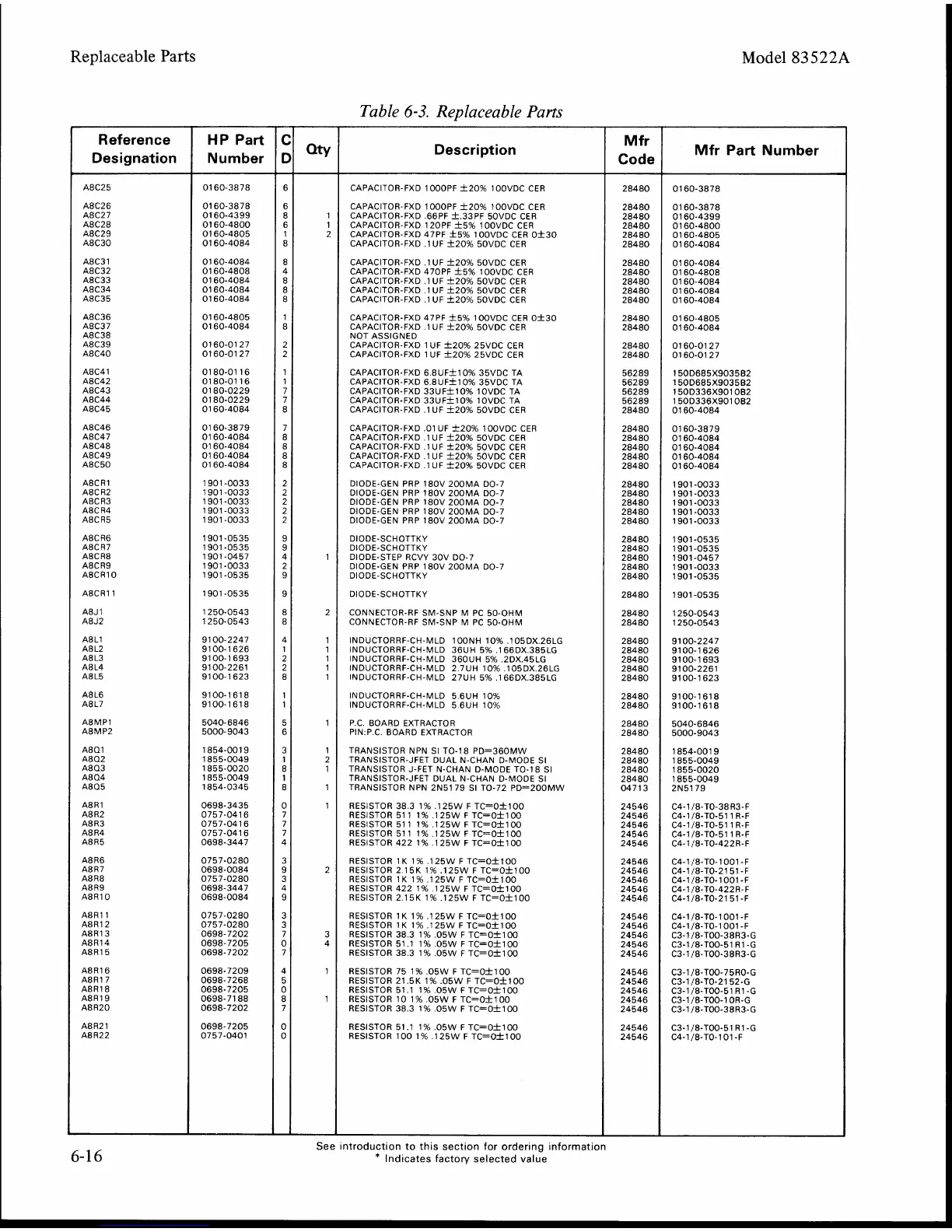

Table 6-3. Replaceable Parts
Reference HP Part C
Designation Number
D Q~Y
Description
Mfr
Mfr Part Number
Code
A8C25 0160-3878 6 CAPACITOR-FXD 1000PF f20% 1 OOVDC CER 28480 01 60-3878
A8C26
0160-3878
6
CAPACITOR-FXD
1000PF f 20% 10OVDC CER 28480
01 60-3878
A8C27
0160-4399
8 1
CAPACITOR-FXD
.66PF f .33PF 5OVDC CER 28480
01 60-4399
A8C28 0160-4800
6 1
CAPACITOR-FXD
120PF f 5% 100VDC CER 28480
01 60-4800
A8C29 0160-4805
1 2
CAPACITOR-FXD 47PF
f5% 100VDC CER Of 30 28480
01 60-4805
A8C30
0160-4084
8
CAPACITOR-FXD
.1 UF f 20% 50VDC CER
28480 01 60-4084
A8C3 1 0160-4084
8 CAPACITOR-FXD
.1 UF f 20% 50VDC CER 28480 01 60-4084
A8C32 0160-4808
4 CAPACITOR-FXD
470PF f5% lOOVDC CER 28480 01 60-4808
A8C33 0160-4084
8 CAPACITOR-FXD
.1 UF *20% 50VDC CER 28480
01 60-4084
A8C34 0160-4084 8 CAPACITOR-FXD .l UF f20% 50VDC CER 28480 01 60-4084
A8C35 0160-4084 8 CAPACITOR-FXD .1 UF f20% 50VDC CER 28480 01 60-4084
A8C36 01 60-4805 1 CAPACITOR-FXD 47PF &5% 100VDC CER Of 30 28480 01 60-4805
A8C37 0160-4084 8 CAPACITOR-FXD .I UF f20% 50VDC CER 28480 01 60-4084
A8C38 NOT ASSIGNED
A8C39 0160-01 27
2 CAPACITOR-FXD 1 UF
f 20% 25VDC CER 28480 01 60-01 27
A8C40 0160-01 27
2 CAPACITOR-FXD 1 UF
f 20% 25VDC CER 28480 01 60-01 27
A8C41 0180-01 16
1 CAPACITOR-FXD
6.8UFf 10% 35VDC TA 56289 150D685X903582
A8C42 0180-01 16
1 CAPACITOR-FXD
6.8UFf 10% 35VDC TA 56289 150D685X9035B2
A8C43 0180-0229
7 CAPACITOR-FXD
33UFf 10% 10VDC TA 56289 150D336X9010B2
A8C44 0180-0229
7 CAPACITOR-FXD
33UFf 10% IOVDC TA 56289 150D336X901062
A8C45 0160-4084
8 CAPACITOR-FXD
.1 UF f20% 50VDC CER 28480 01 60-4084
A8C46 01 60-3879
7 CAPACITOR-FXD .O1 UF
&20% 100VDC CER 28480 01 60-3879
A8C47 0160-4084
8 CAPACITOR-FXD .l UF f20% 50VDC CER 28480 01 60-4084
A8C48 01 60-4084
8 CAPACITOR-FXD .1 UF f20% 50VDC CER 28480 01 60-4084
A8C49 01 60-4084
8 CAPACITOR-FXD
.l UF f20% 50VDC CER 28480 01 60-4084
A8C50 01 60-4084
8 CAPACITOR-FXD
.1 UF f 20% 50VDC CER 28480 01 60-4084
A8CR1 1901-0033 2 DIODE-GEN PRP 180V 200MA DO-7
28480 1901 -0033
A8CR2 1901-0033 2 DIODE-GEN PRP 180V 200MA DO-7
28480 1901 -0033
A8CR3 1901-0033 2 DIODE-GEN PRP 180V 200MA DO-7
28480 1901 -0033
A8C R4 1901-0033 2 DIODE-GEN PRP 180V
200MA DO-7
28480 1901 -0033
A8CR5 1901-0033 2 DIODE-GEN PRP 180V 200MA DO-7
28480 1901 -0033
A8CR6
1901-0535
9 DIODE-SCHOTTKY
28480 1901 -0535
A8CR7
1901-0535
9 DIODE-SCHOTTKY
28480 1901 -0535
A8CR8
1901-0457
4 1 DIODE-STEP RCVY 30V DO-7
28480 1901 -0457
A8CR9 1901-0033
2 DIODE-GEN PRP 180V
200MA DO-7
28480 1 901 -0033
A8CR10 1901-0535
9 DIODE-SCHOTTKY
28480 1901 -0535
A8CR11 1901-0535 9 DIODE-SCHOTTKY 28480 1901 -0535
A8J 1 1250-0543 8 2 CONNECTOR-RF SM-SNP M PC 50-OHM 28480 1250-0543
A8J2 1250-0543 8 CONNECTOR-RF SM-SNP M PC 50-OHM 28480 1250-0543
A8L1 9100-2247
4 1
INDUCTORRF-CH-MLD
1 OONH 10% .105DX,26LG 28480
91 00-2247
A8
L2 9100-1626
1 1
INDUCTORRF-CH-MLD
36UH 5%
,166DX.385LG
28480 91 00-1 626
A8 L3 9100-1693
2 1
INDUCTORRF-CH-MLD
360UH 5% .2DX.45LG 28480
91 00-1 693
A8 L4 91 00-2261
2 1
INDUCTORRF-CH-MLD
2.7UH 10% ,105DX.26LG 28480
91 00-2261
A8L5 9100-1623
8 1
INDUCTORRF-CH-MLD
27UH 5%
,166DX.385LG
28480 91 00-1 623
A8 L6 9100-1618 1 INDUCTORRF-CH-MLD
5.6UH 10% 28480 9100-1618
A8 L7 9100-1618 1 INDUCTORRF-CH-MLD
5.6UH 10% 28480 9100-1618
A8MP1 5040-6846 5 1 P.C. BOARD EXTRACTOR 28480 5040-6846
A8MP2 5000-9043 6 P1N:P.C. BOARD EXTRACTOR 28480 5000-9043
A801 1854-0019 3 1 TRANSISTOR NPN SI TO-18 PD=360MW 28480
1854-001 9
A802 1855-0049 1 2 TRANSISTOR-JFET DUAL N-CHAN D-MODE
SI 28480 1855-0049
A803 1855-0020 8 1 TRANSISTOR J-FET N-CHAN D-MODE TO-1 8 SI 28480 1855-0020
A8 04 1855-0049 1 TRANSISTOR-JFET DUAL N-CHAN D-MODE
SI 28480
1855-0049
A805 1854-0345 8 1 TRANSISTOR NPN 2N5179 SI TO-72 PD=200MW 04713 2N5179
A8R1 0698-3435
0 1
RESISTOR 38.3 1%
.125W F TC=Of 100 24546 C4-1/8-TO-38R3-F
A8R2 0757-0416
7
RESISTOR 51 1 1%
.125W F TC=0+100 24546 C4-1/8-TO-511 R-F
A8R3 0757-0416
7
RESISTOR 51 1
1 % .125W F TC=Of100 24546 C4-1/8-TO-51 1 R-F
A8 R4 0757-0416
7
RESISTOR 51 1 1%
.125W F TC=Of100 24546 C4-1/8-TO-51 1 R-F
A8R5 0698-3447
4
RESISTOR 422 1%
.125W F TC=0+100 24546 C4-1/8-TO-422R-F
A8 R6 0757-0280
3
RESISTOR
1 K 1 % .125W F TC=Of 100 24546 C4-1/8-TO-1001 -F
A8R7
0698-0084
9 2
RESISTOR
2.15K 1% .125W F TC=OflOO 24546 C4-1/8-TO-2151 -F
A8 R8 0757-0280
3
RESISTOR
1 K 1 % ,125W F TC=Of100 24546 C4-1/8-TO-1001 -F
A8 R9 0698-3447
4
RESISTOR 422 1%
.125W F TC=Of 100 24546 C4-1/8-TO-422R-F
A8R10
0698-0084
9
RESISTOR 2.1 5K 1%
.125W F TC=Of 00 24546 C4-1/8-TO-2151 -F
A8Rll 0757-0280
3
RESISTOR
lK 1% .125W F TC'Ok100 24546 C4-1/8-TO-1001 -F
A8R12 0757-0280
3
RESISTOR
lK 1% ,125W F TC'Of100 24546 C4-1/8-TO-1001 -F
A8R13 0698-7202
7 3
RESISTOR 38.3 1%
.05W F TC=Of100 24546 C3-118-TOO-38R3-G
A8R14 0698-7205
0 4
RESISTOR 51.1 1%
.05W F TC=Of100 24546 C3-1/8-TOO-51 R1 -G
A8R15 0698-7202
7
RESISTOR 38.3 1%
.05W F TC=0+100 24546 C3-118-TOO-38R3-G
A8R16
0698-7209
4 1 RESISTOR 75 1%
.05W F TC'Of 100
24546 C3-118-TOO-75RO-G
A8R17
0698-7268
5
RESISTOR
21.5K 1% .05W F TC=0+100 24546 C3-1/8-TO-2152-G
A8R18
0698-7205
0
RESISTOR 51.1 1%
.05W F TC=Of 100 24546 C3-1/8-TOO-51 R1 -G
A8R19
0698-71 88
8 1
RESISTOR 10 1 %
.05W F TC=Of 00 24546 C3-1/8-TOO-1 OR-G
A8R20 0698-7202
7
RESISTOR 38.3 1%
.05W F TC=Of 100 24546 C3-118-TOO-3BR3-G
A8R21 0698-7205
0 RESISTOR 51.1 1%
.05W F TC=Of 100 24546 C3-1/8-TOO-51 R1 -G
A8R22 0757-0401
0 RESISTOR 100 1
% .125W F TC=Of 00 24546 C4-1/8-TO-101 -F
J
See introduction to this section for ordering information
* Indicates factory selected value
