HP 83522A User Manual

Adjustments
ADJUSTMENTS
Model 83522A
5-1 9. FREQUENCY REFERENCE lV/GHz OUTPUT
REFERENCE:
Performance Test:
8350A Paragraph 4-13.
Service Sheet:
A2
DESCRIPTION:
The frequency reference rear panel output is adjusted for 1 Volt per
GHz output. Example: 1
GHz = 1 Volt; 2.4 GHz = 2.4 Volts, etc.
EQUIPMENT:
Sweep Oscillator
..................................................... HP 8350A
Digital Voltmeter. .................................................... HP 3455A
PROCEDURE:
NOTE
Frequency accuracy must be adjusted accurately (Paragraph 5-1 7) before
adjusting Frequency Reference
1 V/GHz output.

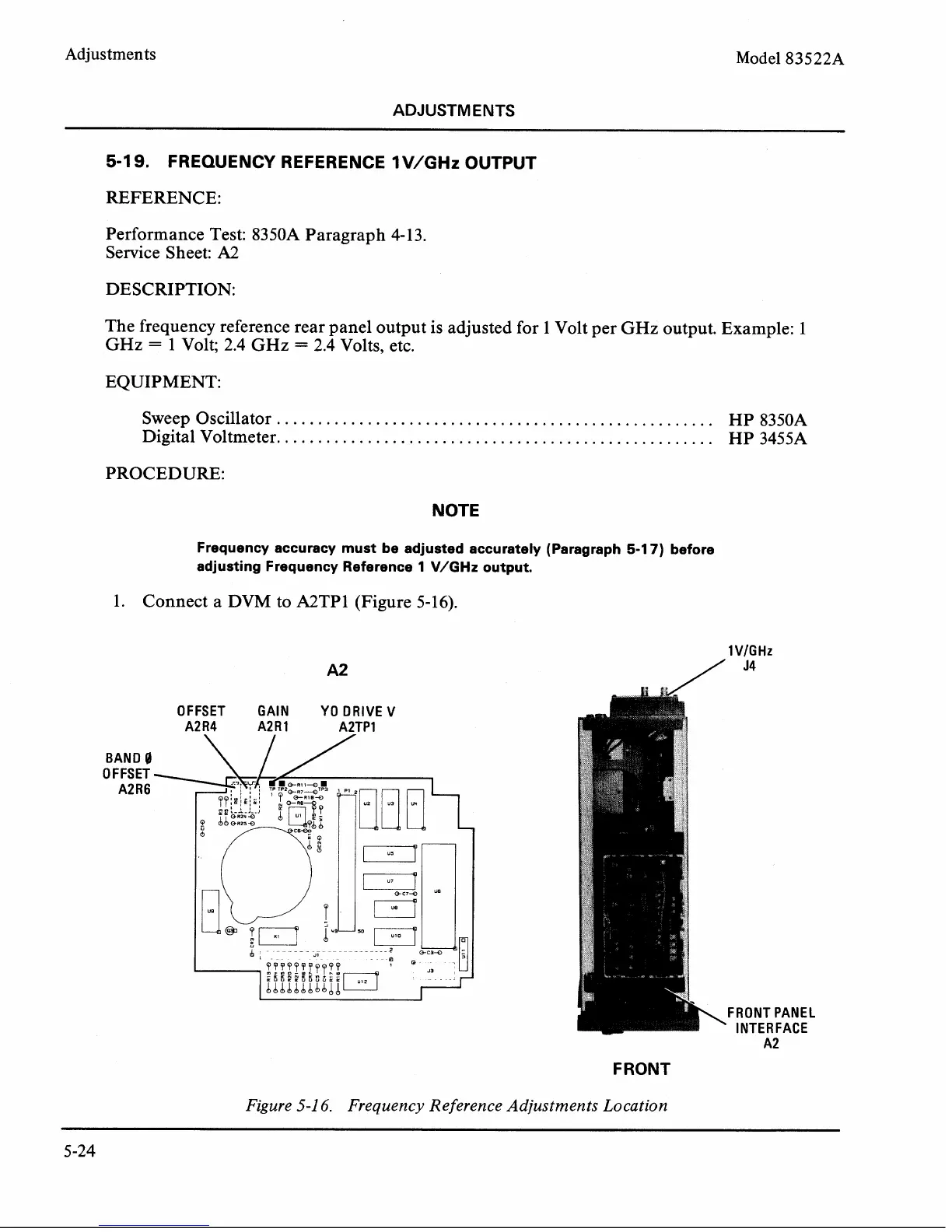

1. Connect a DVM to A2TPl (Figure 5-16).
OFFSET GAIN YO DRIVE V
A2R4 A2R1 A2TPl
BAND 0
OFFSET
A2R6
FRONT PANEL
' INTERFACE
A2
FRONT
Figure 5-1 6.
Frequency Reference Adjustments Location
