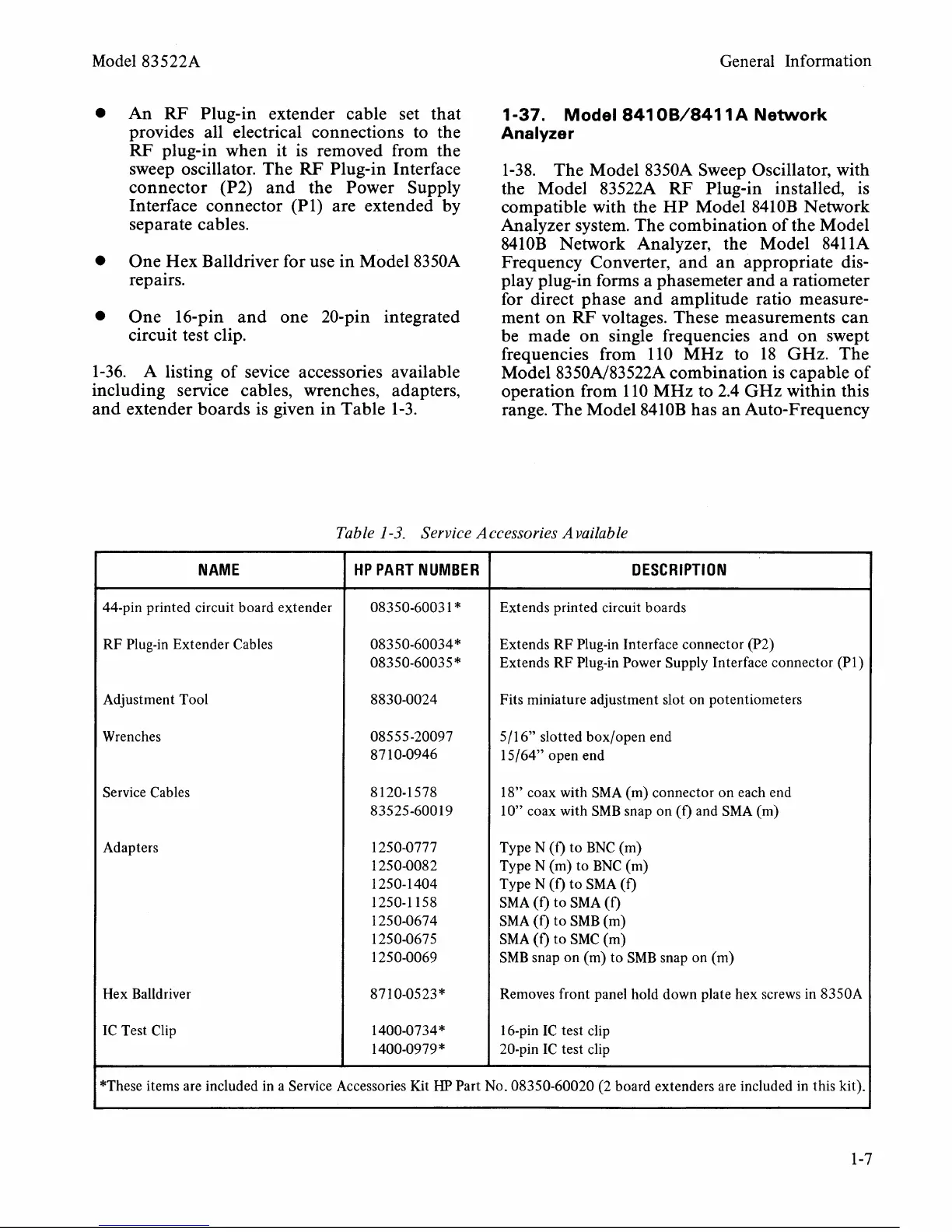

Model 83522A General Information
An RF Plug-in extender cable set that
provides all electrical connections to the
RF plug-in when it is removed from the
sweep oscillator. The
RF Plug-in Interface
connector (P2) and the Power Supply
Interface connector
(PI) are extended by
separate cables.
One Hex Balldriver for use in Model
8350A
repairs.
One 16-pin and one 20-pin integrated
circuit test clip.
1-36. A listing of sevice accessories available
including service cables, wrenches, adapters,
and extender boards is given in Table 1-3.
1-37. Model 841 OB/8411 A Network
Analyzer
1-38. The Model 8350A Sweep Oscillator, with
the Model
83522A RF Plug-in installed, is
compatible with the HP Model
8410B Network
Analyzer system. The combination of the Model
8410B Network Analyzer, the Model 8411A
Frequency Converter, and an appropriate dis-
play plug-in forms a phasemeter and a ratiometer
for direct phase and amplitude ratio measure-
ment on RF voltages. These measurements can
be made on single frequencies and on swept
frequencies from 110 MHz to 18
GHz. The
Model
8350A/83522A combination is capable of
operation from
110 MHz to 2.4 GHz within this
range. The Model
8410B has an Auto-Frequency
Table 1-3. Service Accessories A vailable
NAME
44-pin printed circuit board extender
RF Plug-in Extender Cables
Adjustment Tool
Wrenches
Service Cables
Adapters
Hex Balldriver
IC Test Clip
*These items are included in
a Service Accessories Kit HP Part No. 08350-60020 (2 board extenders are included in this kit).
HP PART NUMBER
08350-6003 1 *
08350-60034"
08350-60035"
8830-0024
08555-20097
87 1 0-0946
8120-1578
83525-60019
1250-0777
1250-0082
1250-1404
1250-1 158
1250-0674
1250-0675
1250-0069
8710-0523"
1400-0734*
1400-0979 *
DESCRIPTION
Extends printed circuit boards
Extends RF Plug-in Interface connector (P2)
Extends RF Plug-in Power Supply Interface connector
(PI)
Fits miniature adjustment slot on potentiometers
511 6" slotted box/open end
15/64" open end
18" coax with SMA (m) connector on each end
10" coax with SMB snap on
(f) and SMA (m)
Type N (f) to BNC (m)
Type N (m) to BNC (m)
Type N
(f) to SMA (f)
SMA (f) to SMA (f)
SMA (f) to SMB (m)
SMA
(f) to SMC (m)
SMB snap on (m) to SMB snap on (m)
Removes front panel hold down plate hex screws in
8350A
16-pin IC test clip
20-pin IC test clip
