5-24. ALC GAIN ADJUSTMENT (UPDATES) (Cont'd)
NOTE
This procedure assumes that
A3S1 is set to the factory-set position
(Table
5-6).

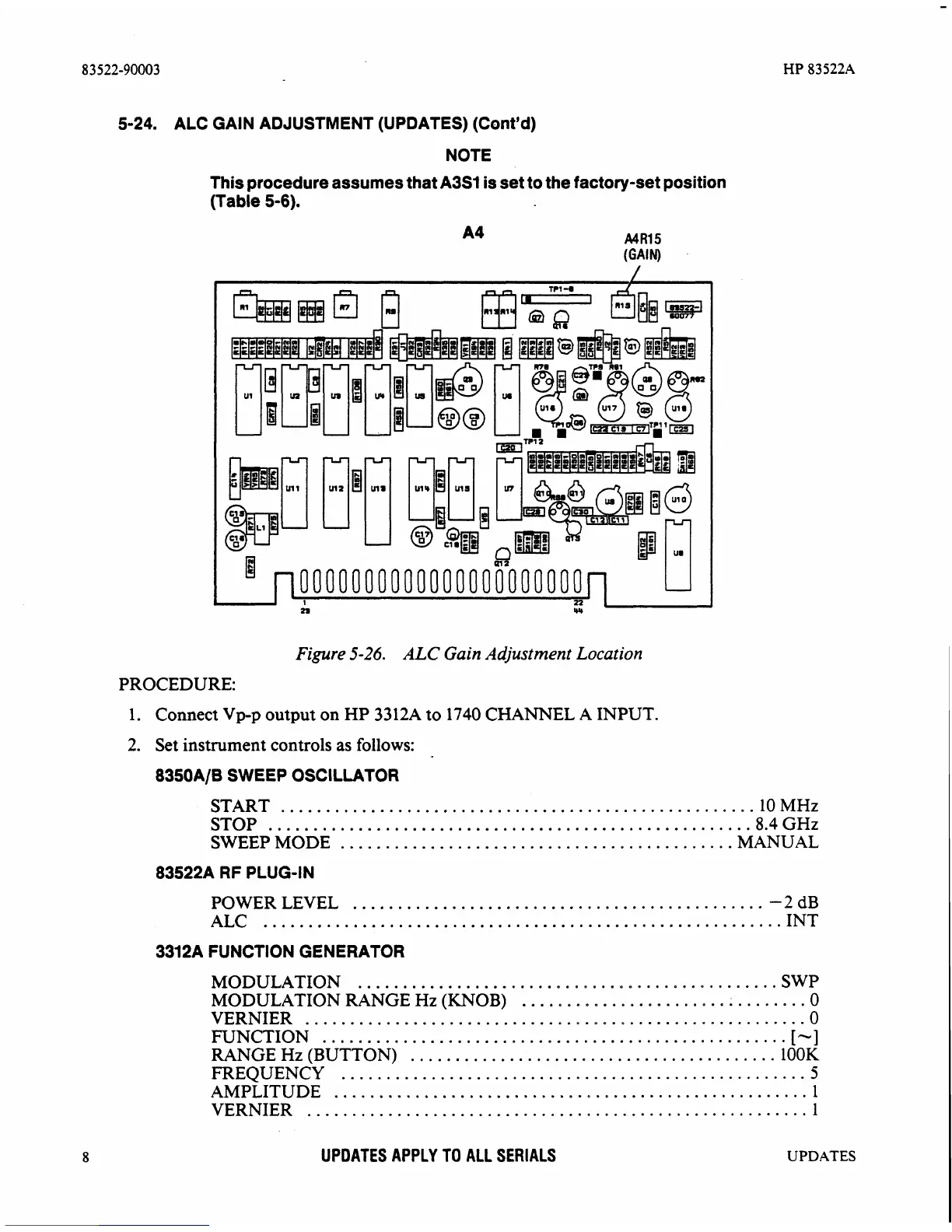

Figure 5-26. ALC Gain Adjustment Location
PROCEDURE:
1. Connect Vp-p output on HP 331219 to 1740 CHANNEL A INPUT.
2. Set instrument controls as follows:
8350AlB SWEEP OSCILLATOR
.....................................................
START 10 MHz
STOP ..................................................... .8.4 GHz
SWEEPMODE ............................................ MANUAL
83522A RF PLUG-IN
POWERLEVEL .............................................. -2dB
..........................................................
ALC INT
3312A FUNCTION GENERATOR
............................................... MODULATION SWP
MODULATION RANGE Hz (KNOB) ........a.e..................... 0
VERNIER ........................................................ 0
.................................................... FUNCTION 1-1
RANGE Hz (BUTTON) ......................................... lOOK
FREQUENCY .................................................... 5
AMPLITUDE ..................................................... 1
........................................................
VERNIER 1
UPDATES APPLY TO ALL SERIALS
