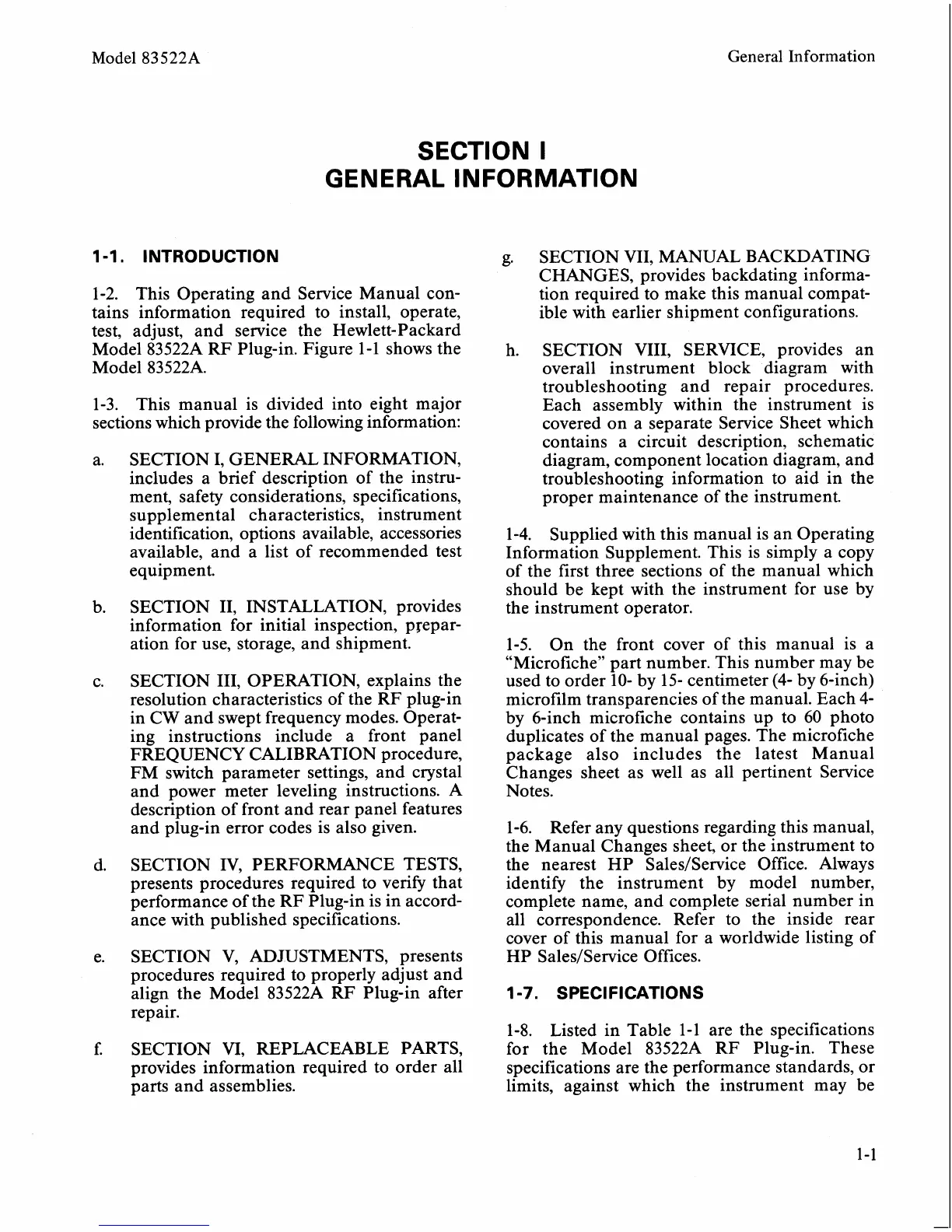

Model
83522A
General Information
SECTION
I
GENERAL
INFORMATION
1-1.
INTRODUCTION
1-2. This Operating and Service Manual con-
tains information required to install, operate,
test, adjust, and service the Hewlett-Packard
Model
83522A
RF
Plug-in. Figure 1-1 shows the
Model
83522A.
1-3. This manual is divided into eight major
sections which provide the following information:
a. SECTION I, GENERAL INFORMATION,
includes a brief description of the instru-
ment, safety considerations, specifications,
supplemental characteristics, instrument
identification, options available, accessories
available, and a list of recommended test
equipment.
b. SECTION
11, INSTALLATION, provides
information for initial inspection,
pyepar-
ation for use, storage, and shipment.
c. SECTION
111, OPERATION, explains the
resolution characteristics of the RF plug-in
in CW and swept frequency modes. Operat-
ing instructions include a front panel
FREQUENCY CALIBRATION procedure,
FM switch parameter settings, and crystal
and power meter leveling instructions. A
description of front and rear panel features
and plug-in error codes is also given.
d. SECTION IV, PERFORMANCE TESTS,
presents procedures required to verify that
performance of the RF Plug-in is in accord-
ance with published specifications.
e. SECTION V, ADJUSTMENTS, presents
procedures required to properly adjust and
align the Model
83522A
RF
Plug-in after
repair.
f. SECTION
VI,
REPLACEABLE PARTS,
provides information required to order all
parts and assemblies.
g. SECTION VII, MANUAL BACKDATING
CHANGES, provides backdating informa-
tion required to make this manual compat-
ible with earlier shipment configurations.
h. SECTION VIII, SERVICE, provides an
overall instrument block diagram with
troubleshooting and repair procedures.
Each assembly within the instrument is
covered on a separate Service Sheet which
contains a circuit description, schematic
diagram, component location diagram, and
troubleshooting information to aid in the
proper maintenance of the instrument.
1-4. Supplied with this manual is an Operating
Information Supplement. This is simply a copy
of the first three sections of the manual which
should be kept with the instrument for use by
the instrument operator.
1-5. On the front cover of this manual is a
"Microfiche" part number. This number may be
used to order 10- by 15- centimeter
(4-
by 6-inch)
microfilm transparencies of the manual. Each
4-
by dinch microfiche contains up to 60 photo
duplicates of the manual pages. The microfiche
package also includes the latest Manual
Changes sheet as well as all pertinent Service
Notes.
1-6. Refer any questions regarding this manual,
the Manual Changes sheet, or the instrument to
the nearest HP
SalesIService Office. Always
identify the instrument by model number,
complete name, and complete serial number in
all correspondence. Refer to the inside rear
cover of this manual for a worldwide listing of
HP
SalesIService Offices.
1-7.
SPECIFICATIONS
1-8. Listed in Table 1-1 are the specifications
for the Model
83522A RF Plug-in. These
specifications are the performance standards, or
limits, against which the instrument may be
To Next Page
