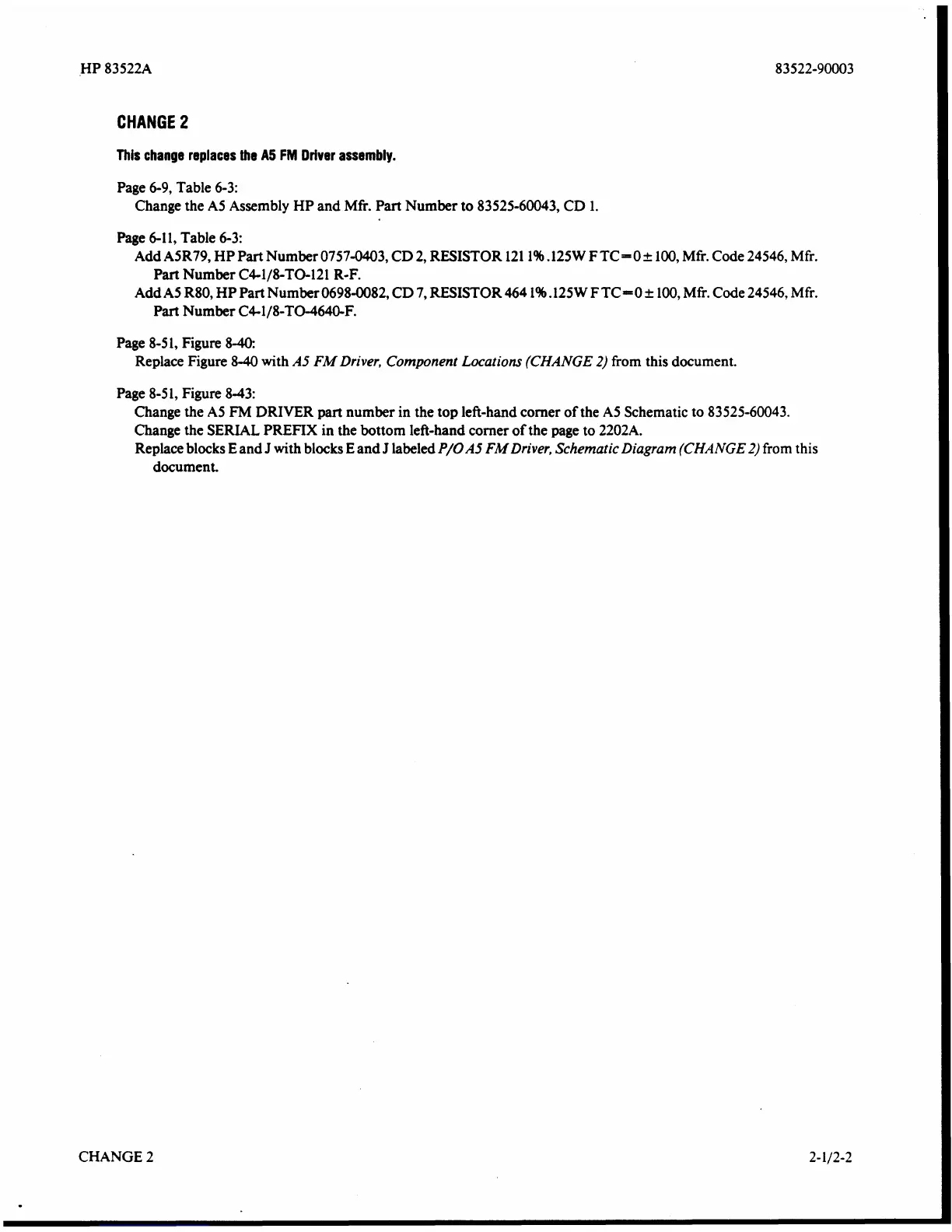

HP 83522A User Manual

CHANGE 2
This change replaces the A5 FM Driver assembly.
Page 6-9, Table 6-3:
Change the A5 Assembly HP and
Mfi. Part Number to 83525-60043, CD 1.
Page 6-11, Table 6-3:
Add
ASR79, HP Part Number 0757-0403, CD 2, RESISTOR 121 1% .125W FTC--02 100, Mfi. Code 24546, Mfr.
Part Number
C4-118-TO-12 1 R-F.
Add A5 R80, HP Part Number
06986082, CD 7, RESISTOR 464 1%. 125W F TC=O 2 100, Mfr. Code 24546, Mfr.
Part Number
C4-118-TO-4640-F.
Page 8-5 1, Figure 8-40:
Replace Figure 8-40 with
A5 FM Driver, Component Locations (CHANGE 2) fiom this document.
Page 8-51, Figure
8-43:
Change the A5 FM DRIVER part number in the top left-hand comer of the A5 Schematic to 83525-60043.
Change the SERIAL PREFIX in the bottom left-hand comer of the page to 2202A.
Replace blocks E and J with blocks E and J labeled P/O A5 FM Driver, Schematic Diagram (CHANGE 2) from this
document.
CHANGE
2 2-1/2-2
