HP 83522A
CHANGE
11

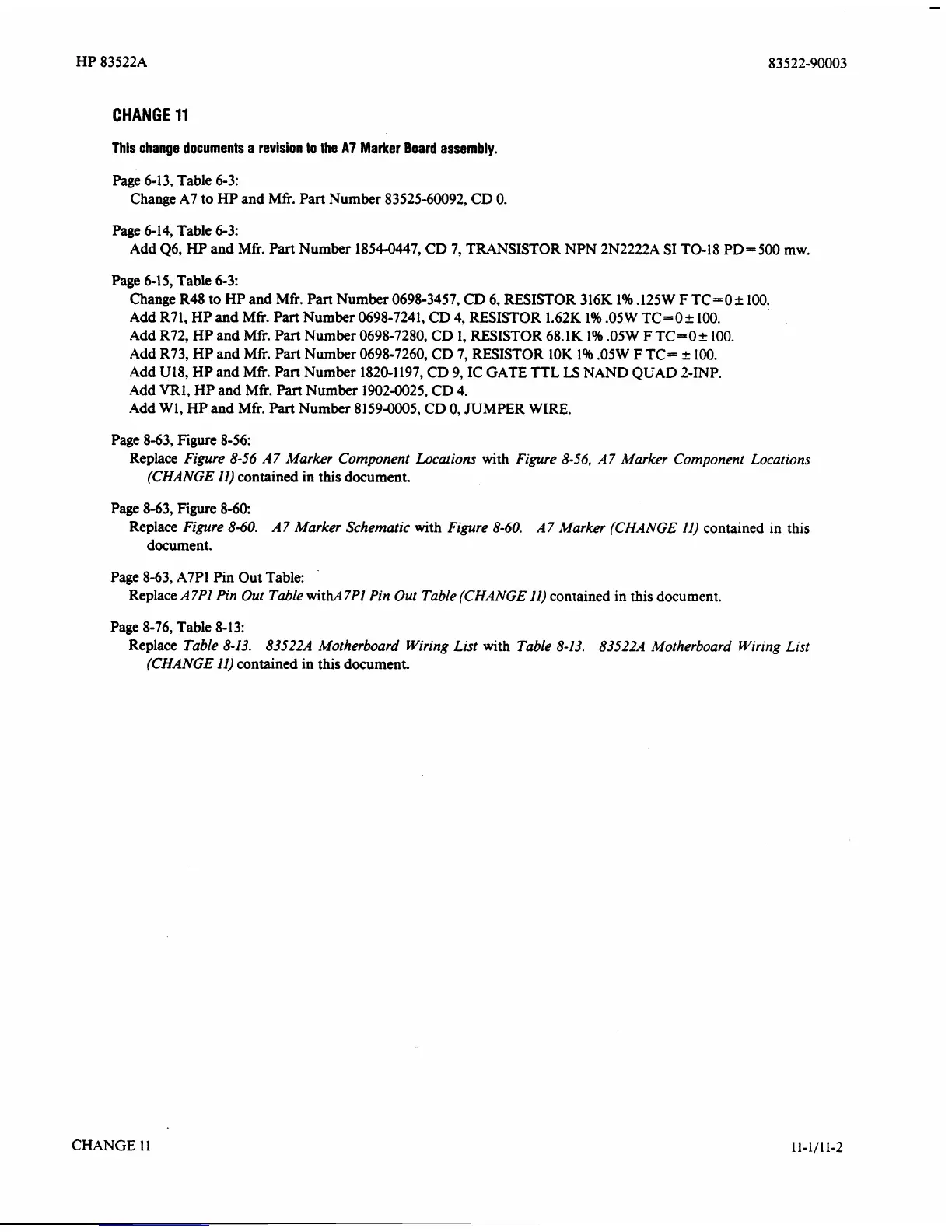

This change documents a revision to the
A7
Marker Board assembly.
Page 6-13, Table 6-3:
Change A7 to HP and
Mfr. Part Number 83525-60092, CD 0.
Page 6-14, Table 6-3:
Add
46, HP and Mfi.
Part
Number 1854-0447, CD 7, TRANSISTOR NPN 2N2222A SI TO-18 PD==500 mw.
Page 6-15, Table
6-3:
Change R48 to HP and Mfr. Part Number 069893457, CD 6, RESISTOR 316K 1% .125W F TC-Of 100.
Add R71, HP and Mfr. Part Number 0698-7241, CD 4, RESISTOR 1.62K 1% .05W TC=O
+
100.
Add R72, HP and Mfr. Part Number 0698-7280, CD 1, RESISTOR
68.1K
1%
.O5W F TC-O+ 100.
Add R73, HP and
Mfi. Part Number 0698-7260, CD 7, RESISTOR 10K 1% .05W F TC=
+
100.
Add
U18, HP and Mfi. Part Number 182011197, CD 9, IC GATE
TTL
LS
NAND QUAD 2-INP.
Add VRI, HP and Mfr. Part Number
1902-0025, CD 4.
Add
W1, HP and Mfr. Part Number 8159-0005, CD
0,
JUMPER WIRE.
Page 8-63, Figure 8-56:
Replace
Figure 8-56 A7 Marker Component Locations
with
Figure 8-56, A7 Marker Component Locations
(CHANGE
11)
contained in this document.
Page 8-63, Figure 8-60:
Replace
Figure 8-60. A7 Marker Schematic
with
Figure 8-60.
A7 Marker (CHANGE
11)
contained in this
document.
Page 8-63,
A7P1 Pin Out Table:
Replace
A7PI Pin Out Table
withA7PI
Pin Out Table (CHANGE 11)
contained in this document.
Page 8-76, Table 8-13:
Replace
Table 8-13. 83522A Motherboard Wiring List
with
Table 8-13. 83522A Motherboard Wiring List
(CHANGE 11)
contained in this document.
CHANGE
11
