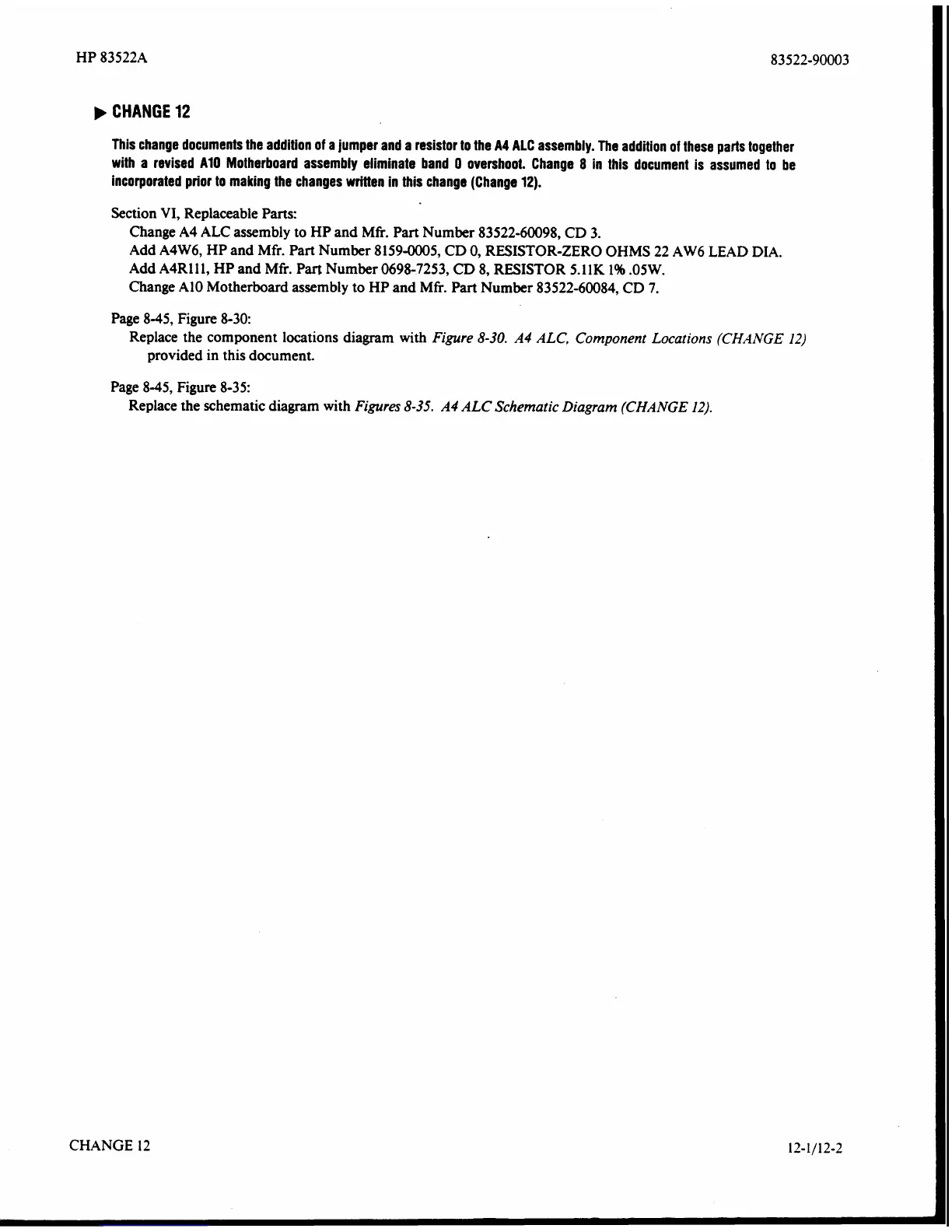

, CHANGE 12
this change documents the addition of a jumper and a resistor to the A4 ALC assembly. The addition of these parts together
with a revised
A10 Motherboard assembly eliminate band 0 overshoot. Change 8 in this document is assumed to be
incorporated prior to making the changes written in this change (Change
12).
Section VI, Replaceable Parts:
Change A4 ALC assembly to HP and Mfi. Part Number 83522-60098, CD 3.
Add
A4W6, HP and Mfr. Part Number 8159-0005, CD 0, RESISTOR-ZERO OHMS 22 AW6 LEAD DIA.
Add
A4R111, HP and Mfr. Part Number 0698-7253, CD 8, RESISTOR 5.11K 1% .05W.
Change A10 Motherboard assembly to HP and Mfi. Part Number 83522-60084, CD 7.
Page 8-45, Figure 8-30:
Replace the component locations diagram with
Figure 8-30. A4 ALC, Component Locations (CHANGE 12)
provided in this document.
Page 8-45, Figure 8-35:
Replace the schematic diagram with
Figures 8-35. A4 ALC Schematic Diagram (CHANGE 12).
CHANGE 12
