Model 83522A

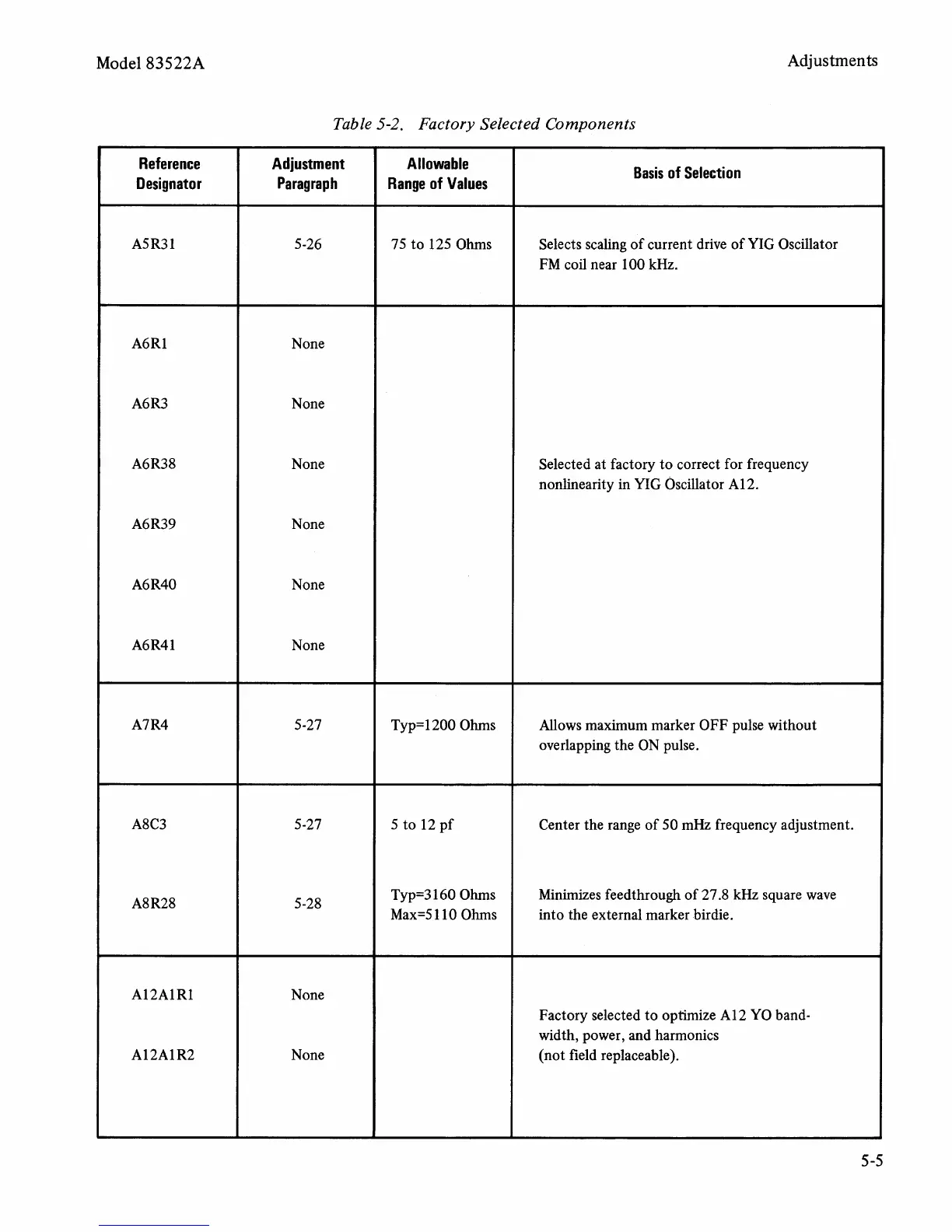

Table 5-2. Factory Selected Components
Adjustments
Reference
Designator
A5 R3 1
A6R1
A6R3
A6R38
A6R39
A6R40
A6R41
A7R4
A8C3
A8R28
A12AlR1
A12AlR2
Adjustment
Paragraph
5-26
None
None
None
None
None
None
5-27
5-27
5-28
None
None
Allowable
Range of Values
75 to 125 Ohms
Typ=1200 Ohms
5 to 12 pf
Typ=3 160 Ohms
Max=5 1 10 Ohms
Basis of Selection
Selects scaling of current drive of YIG Oscillator
FM coil near 100 kHz.
Selected at factory to correct for frequency
nonlinearity in YIG Oscillator A12.
Allows maximum marker OFF pulse without
overlapping the ON pulse.
Center the range of 50
mHz frequency adjustment.
Minimizes feedthrough of 27.8 kHz square wave
into the external marker birdie.
Factory selected to optimize A12 YO band-
width, power, and harmonics
(not field replaceable).
