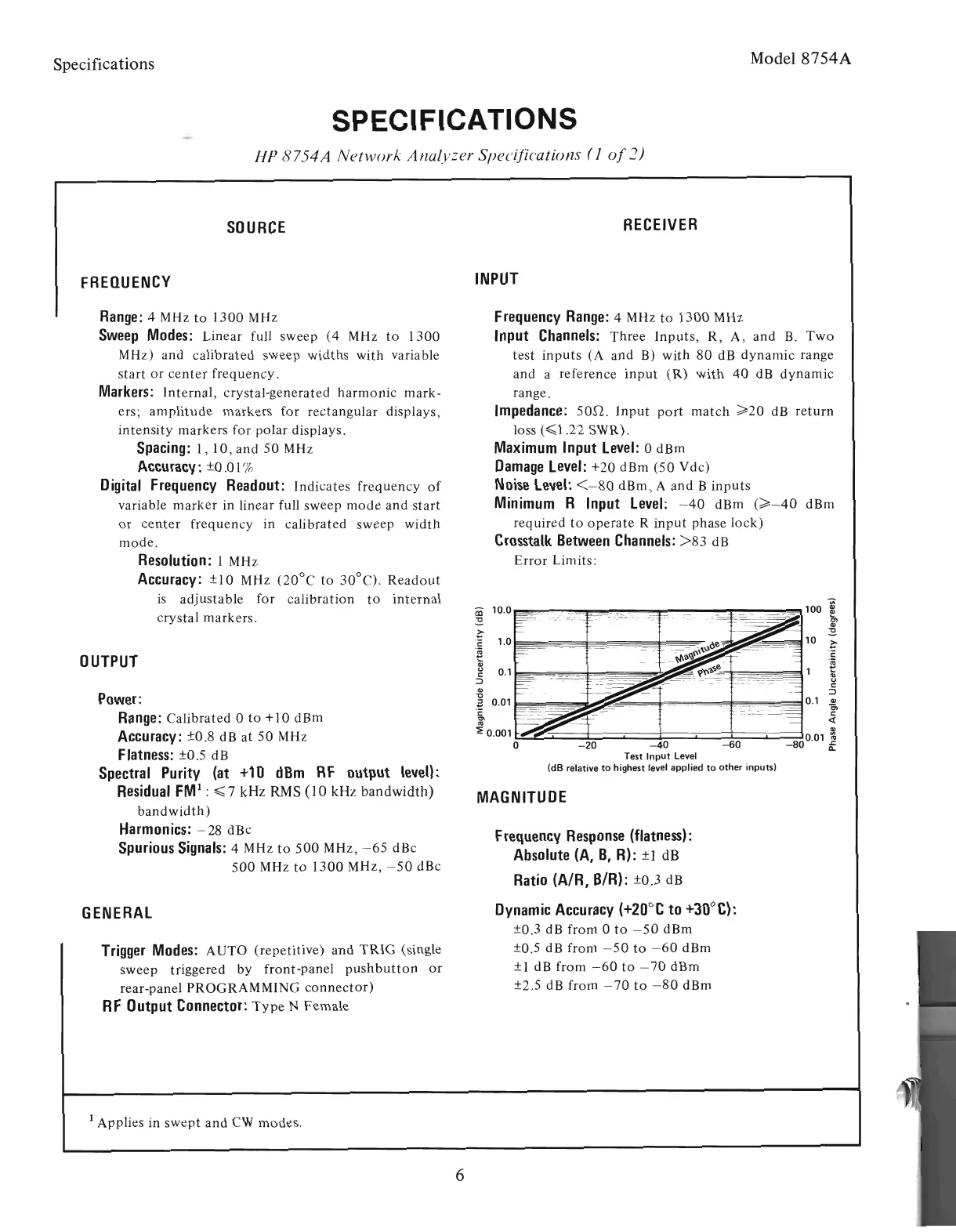

HP 8754A Network Anal.yzer Specifications ( I of 2)
SPECIFICATIONS
Specifications
SOURCE
FREOUENCY
Range: 4 MHz to 1300 MHz
Sweep Modes: Linear full sweep (4 MHz to 1300
MHz) and calibrated sweep widths with variable
start or center frequency.
Markers: Internal, crystal-generated harmonic mark-
ers; amplitude markers for rectangular displays,
intensity markers for polar displays.
Spacing: I, 10,and 50 MHz
Accuracy: iO.OI %
Digital Frequency Readout: Indicates frequency of
variable marker in linear full sweep mode and start
or center freq uency in cali brated sweep width
mode.
Resolution: I MHz
Accuracy: ilO MHz (20°C to 30°C). Readout
is adjustable for calibration to internal
crystal markers.
OUTPUT
Power:
Range: Calibrated 0 to + I0 dBm
Accuracy: iO.8 dB at 50 MHz
Flatness: iO.5 dB
Spectral Purity (at +10 dBm RF output level):
Residual
FM
1
:
~7 kHz RMS (10 kHz bandwidth)
bandwidth)
Harmonics: - 28 dBc
Spurious Signals: 4 MHz to 500 MHz, -65 dBc
500 MHz to 1300 MHz, -50 dBc
GENERAL
Trigger Modes: AUTO (repetitive) and TRIG (single
sweep triggered by front-panel pushbutton or
rear-panel PROGRAMMING connector)
RF Output Connector: Type N Female
1 Applies in swept and CW modes.
6
Mode18754A
RECEIVER
INPUT
Frequency Range: 4 MHz to 1300 MHz
Input Channels: Three Inputs, R, A, and B. Two
test inputs (A and B) with 80 dB dynamic range
and a reference input (R) with 40 dB dynamic
range.
Impedance: son. Input port match ~20 dB return
loss (~1.22 SWR).
Maximum Input Level: 0 dBm
Damage Level: +20 dBm (50 Vdc)
Noise Level: <-80 dBm, A and B inputs
Minimum R Input Level: -40 dBm (~-40 dBm
required to operate R input phase lock)
Crosstalk Between Channels: >83 dB
Error Limits:
rii 10.0 1!!!!!"!!!!!~~~~~~1!!I!!!!!!"!!!-.pB-----t-~-~!!!"'!!I100 ~
~ ~
~ ~
'c 1.0 10 ~
~ ~
~ ~
g 0.1 Q)
~ g
~ 0.1 ~
,~ 0.01 ~
~ ~
~ 0.001 ~
o -20 -40 -60 _80
0
.
01
£
Test Input Level
(dB relative to highest level applied to other inputs)
MAGNITUDE
Frequency Response (flatness):
Absolute (A, B, R): il dB
Ratio (A/R, B/R): iO.3 dB
Dynamic Accuracy (+20°C to +30°C):
iO.3 dB from 0 to -50 dBm
iO.5 dB from -50 to -60 dBm
il dB from -60 to -70 dBm
i2.5 dB from -70 to -80 dBm
