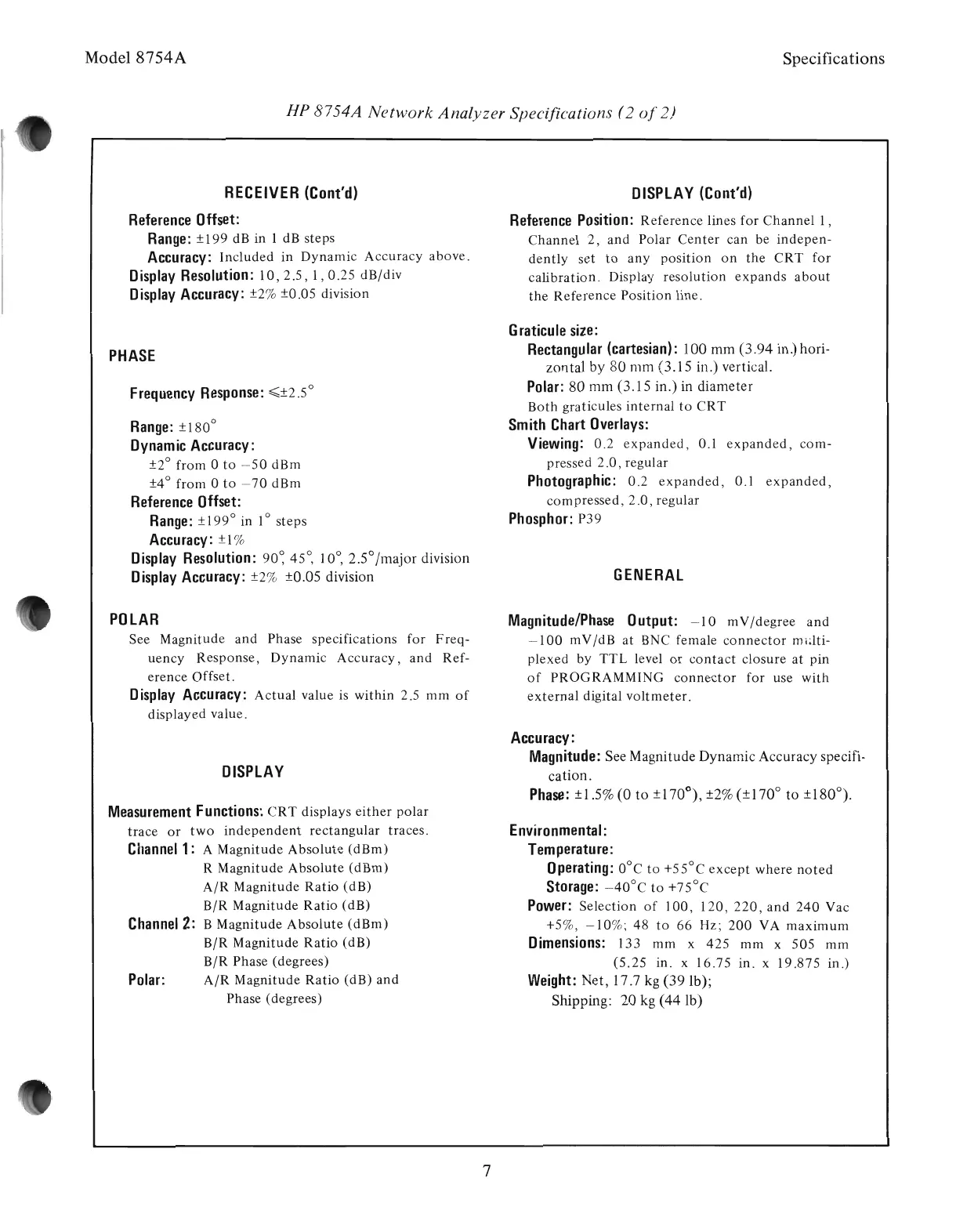

HP 8754A Network Analyzer Specifications (2 of 2)
Specificatio.ns
RECEIVER (Cont'd)
Reference Offset:
Range: ±199 dB in 1 dB steps
Accuracy: Included in Dynamic Accuracy above.
Display Resolution: 10,2.5,1,0.25 dB/div
Display Accuracy: ±2% ±0.05 division
PHASE
Frequency Response: ~±2.5°
Range: ±180°
Dynamic Accuracy:
±2° from 0 to -50 dBm
±4° from 0 to -70 dBm
Reference Offset:
Range: ±199° in 1° steps
Accuracy: ±1%
Display Resolution: 90~ 45°, 10°, 2.5
0
ftnajor division
Display Accuracy: ±2% ±0.05 division
POLAR
See Magnitude and Phase specifications for Freq-
uency Response, Dynamic Accuracy, and Ref-
erence Offset.
Display Accuracy: Actual value is within 2.5 mm of
displayed value.
DISPLAY
Measurement Functions: CRT displays either polar
trace or two independent rectangular traces.
Channel 1: A Magnitude Absolute (dBm)
R Magnitude Absolute (dBm)
A/R Magnitude Ratio (dB)
B/R Magnitude Ratio (dB)
Channel 2: B Magnitude Absolute (dBm)
B/R Magnitude Ratio (dB)
B/R Phase (degrees)
Polar: A/R Magnitude Ratio (dB) and
Phase (degrees)
7
DISPLAY (Cont'd)
Reference Position: Reference lines for Channell,
Channel 2, and Polar Center can be indepen-
dently set to any position on the CRT for
calibration. Display resolution expands about
the Reference Position line.
G raticule size:
Rectangular (cartesian): 100 mm (3.94 in.) hori-
zontal by 80 nlm (3.15 in.) vertical.
Polar: 80 mm (3.15 in.) in diameter
Both graticules internal to CRT
Smith Chart Overlays:
Viewing: 0.2 expanded, 0.1 expanded, com-
pressed 2.0, regular
Photographic: 0.2 expanded, 0.1 expanded,
compressed, 2.0, regular
Phosphor: P39
GENERAL
Magnitude/Phase Output: -10 mY/degree and
-100 mY/dB at BNC female connector miJti-
plexed by TTL level or contact closure at pin
of PROGRAMMING connector for use with
external digital voltmeter.
Accuracy:
Magnitude: See Magnitude Dynamic Accuracy specifi-
cation.
Phase: ±1.5% (0 to ±170o), ±2% (±170° to ±1800).
Environmental:
Tem peratu re:
Operating: 0°C to +55'0 C except where noted
Storage: -40°C to +75°C
Power: Selection of 100, 120, 220, and 240 Vac
+5%,
-10%; 48 to 66 Hz; 200 VA maximum
Dimensions: 133 mm x 425 mm x 505 mm
(5.25 in. x 16 .75 in. x 19 .875 in.)
Weight: Net, 17.7 kg (39 lb);
Shipping: 20 kg (44 lb)
