Modulate or Sum the Signals
2-7
Remember
The HP 8904A always changes the amplitude setting to 140 pV
when the destination is changed; so remember to always specify
your destination choice first then enter the amplitude setting.

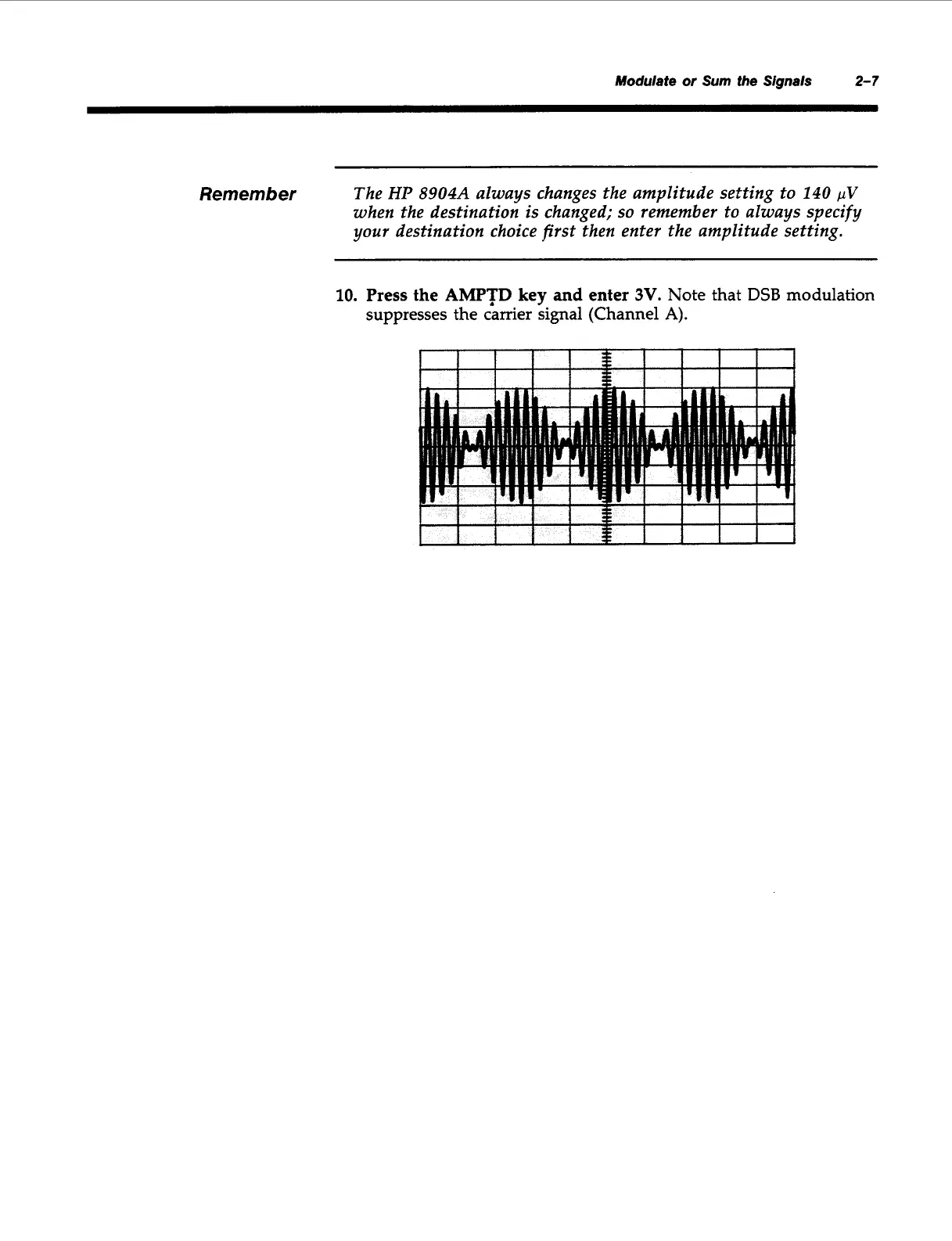

10. Press the AMPTD key and enter 3V. Note that DSB modulation
suppresses the carrier signal (Channel A).
I I I I f I 1 I I
