Output
Two
Signals
at
Once
4-5

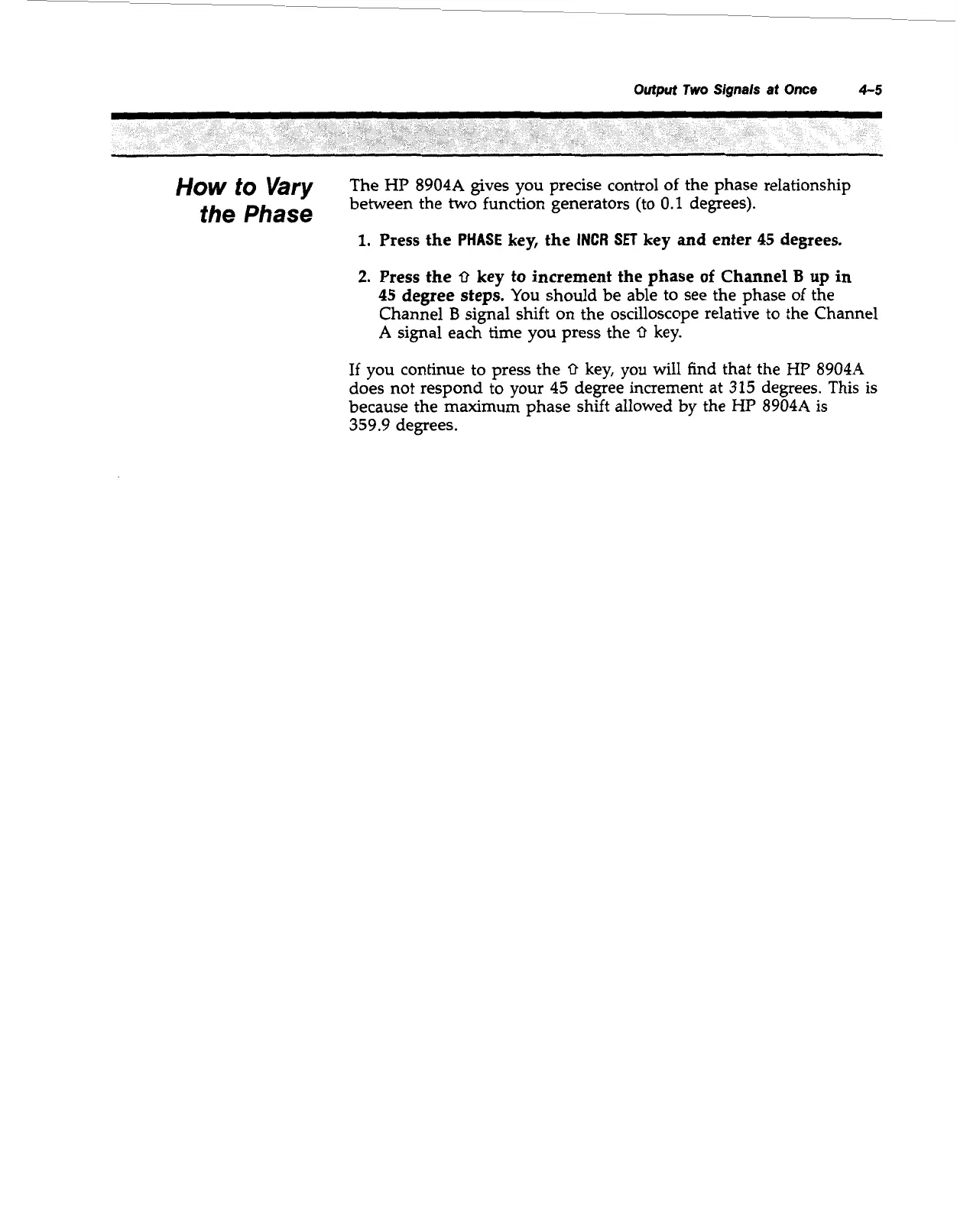

How
fo
Vary
The
HP
8904A
gives you precise control of the phase relationship
between the two function generators (to
0.1
degrees).
the
Phase
1.
Press the
PHASE
key, the
INCR
SET
key
and
enter
45
degrees.
2.
Press the
0
key to increment the phase
of
Channel
B
up in
45
degree steps.
You
should be able to see the phase
of
the
Channel
B
signal shift on the oscilloscope relative to the Channel
A
signal each time you press the
0
key.
If
you continue to press the
0
key,
you
will find that the
HP
8904A
does not respond to your
45
degree increment at
315
degrees. This is
because the maximum phase shift allowed by the
HP
8904A
is
359.9
degrees.
